Semi-automatic Hair Spray/ Air Freshener Aerosol Tin Can Making Machine Production Line
- Ningbo
You May Like
-
Aerosol Tin Can Leak Inspection Machine
-
Air Freshener Aerosol/Spay Can Box Making/Production Line
-
Can Body/ Spray Aerosol Leaking Detection/ Leakage Testing Machine
-
Roller Coating and Drying Machine For Spray Aerosol Tin Can Making Line
-
Metal Can Aerosol Tin Can Making Machine Welder/ Internal External Coating/Drying Equiptment
-
Welder/ Welding Seaming Equiptment For Spray Aerosol Paint Tin Can Making
Product Details
| Condition | New | Application | Beverage, Chemical, Food, Other, Beverage, Chemical, Food, Machinery & Hardware | |
| Packaging Type | Barrel, Cans | Packaging Material | Metal | |
| Automatic Grade | Semi-Automatic | Driven Type | Hydraulic | |
| Voltage | 380V | Power | 5.5KW | |
| Place of Origin | Zhejiang, China | Brand Name | Golden Wing | |
| Model Number | CNC-C8 | Dimension(L*W*H) | 1390*1125*2315 mm | |
| Weight | 12t | Certification | CE |
Product Description
Specifications
2. Semi automatic machines.
3. 1 year warranty with technicians door-to-door service.

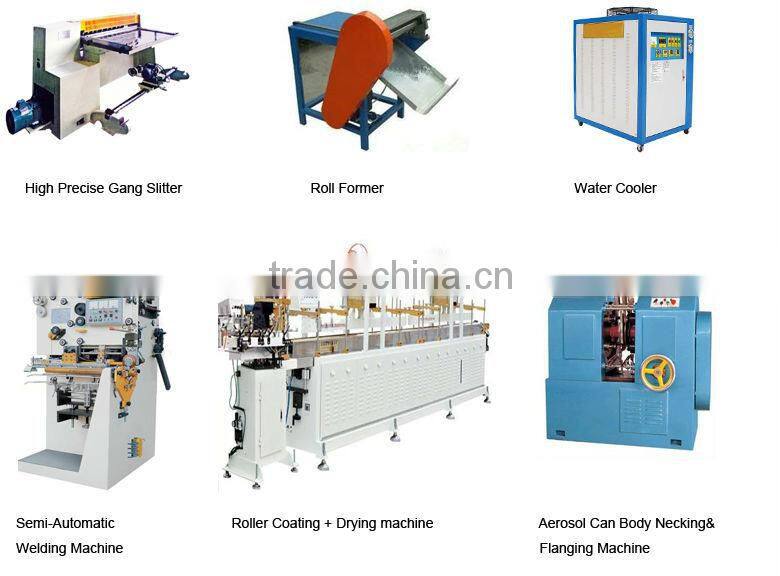

The Flow Chart:
| Name | High-Precise GangSlitter |
| Usage | It's used for cutting tinplate sheets or other metal sheets |
| Tinplate Sheet Width | Max.125mm |
| Tinplate Sheet Thickness | 0.16-0.5mm |
| Power | 1.5KW |
| Weight | 1300kg |
| Dimension | 2000*1000*1000mm |
| Name | Roll Former |
| Usage | It's used for can body roll forming. |
| Diameter | 65-200mm |
| Height | ≤450mm |
| Tinplate Sheet Thickness | 0.2-0.5mm |
| Power | 0.75KW |
| Weight | 100kg |
| Dimension | 1100*760*850mm |
| Name | Semi-automatic Welding Machine |
| Usage | It's used for tin can sideseam welding |
| Diameter | 52-99 mm |
| Height | 70-250mm |
| Capacity | 20-80 Cans/min |
| Tinplate Sheet Thickness | 0.18-0.32mm |
| Overlap | 0.4-0.9m |
| Welding Frequency | 80-260Hz |
| Copper Wire Diameter | 1.38mm 1.5mm |
| Cooling Water | 0.4MPa, ≤20°c |
| Power | 36KVA |
| Weight | 1200kg |
| Dimension | 1300*1100*1800mm |
| Name | Water Chiller |
| Usage | It's used for cooling welding machine |
| Name | Roller Coating + Drying Machine |
| Usage | It's used for thin can body internal & external coating and drying |
| Applicable Can Diameter | 52-99 mm |
| Applicable Can Height | 70-250 mm |
| Coating Capacity | 20-80 cans/min |
| Drying Capacity | 20-80 cans/min |
| Coating Width | 10-12 mm |
| Drying Temperature | 120-130°c |
| Power | 10 KW |
| Weight | 2000 kg |
| Dimensions | 2200*500*1300mm + 8500*800*1550mm |
| Name | Aerosol Can Body Necking & Flanging Machine |
| Usage | It's used for can body necking & flanging. |
| Capacity | 60-160 cans/min |
| Applicable Can Diameter | 40-100 mm |
| Applicable Can Height | 654-280 mm |
| Power | 2.2KW,380V, 50HZ |
| Weight | 1500kg |
| Dimension | 1700*700*1300 mm |

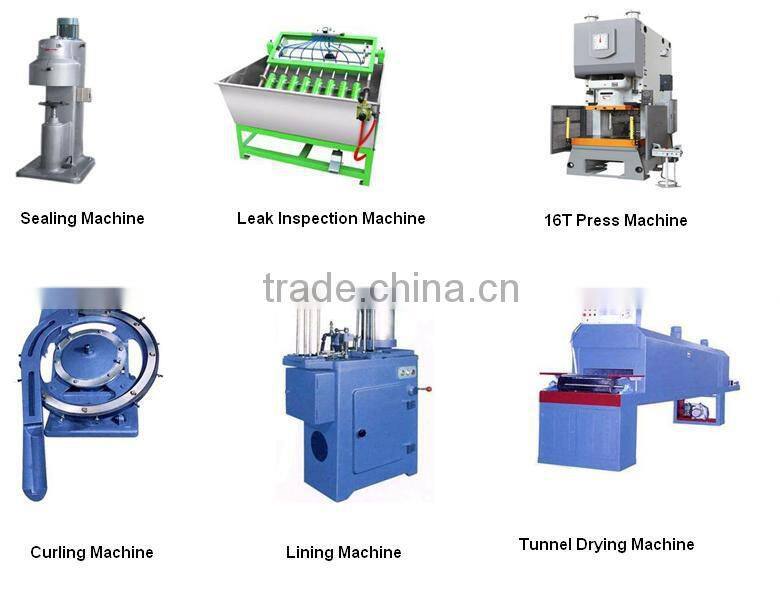

| Name | Sealing Machine |
| Usage | It's used for bottom & dome sealing. |
| Capacity | 10-25 cans/min |
| Applicable Can Diameter | ≤200mm |
| Applicable Can Height | ≤350mm |
| Power | 2KW |
| Weight | 1200 kg |
| Dimensions | 785*650*2000mm |
| Name | Leak Inspection Machine |
| Usage | It's used for testing leakage |
| Capacity | 10-25 cans/min |
| Applicable Can Diameter | 38-66 mm |
| Applicable Can Height | 110-320 mm |
| Compressed Air Consumption | 2000 L/hour |
| Detection Pressure | 0.4-1.2MPa |
| Name | 16T Press Machine |
| Usage | It's used for lids making (Top:4 sets. Bottom:1 set) |
| Name Usage | Curling Machine |
| Usage | It's usad for covers curling |
| Capacity | 40 covers/min |
| Cover Diameter | 30-170 mm |
| Power | 0.37 kw |
| Weight | 150 kg |
| Dimension | 740*1100*590 mm |
| Name | Lining Machine |
| Usage | It's used for coves lining |
| Capacity | 50-160 covers/min |
| Cover Diameter | 50-170 mm |
| Power | 0.75 KW |
| Weight | 550 kg |
| Dimension | 990*700*1500 mm |
| name | Tunnel Drying Machine |
| Usage | It's used for drying covers. |
| Capacity | 1500-30000 cover/hour |
| Total Power | 28 KW |
| Weight | 1800 kg |
| Dimension | 6440*1000*1800 mm |
Zhoushan Golden Wing Machinery Co.,Ltd., is a professional manufacturer & exporter specialized in various tin cans making machinery.
As a rich experienced manufacturer & exporter in this field, we always make the most suitable solutions for customers in tin cans / ends making.
‘High quality, competitive price & superior after-sale service’ is our principle.
We are always ready to develop long-term and good relationship with overseas customers.
We provide the following series of products:
Automatic Lid / Ring / Bottom Production Lines
Automatic EOE (easy open ends) Production Lines
Automatic Aerosol Cone / Dome Production Lines
Automatic Twist-off Lug Cap Production Lines
CNC Feeding System
Automatic Palletizer
Automatic Depalletizer
Wrapping Machine
Conveyor Device
Automatic Aerosol Tin Can Production Lines
Automatic Food Tin Can Production Lines
Automatic Beverage Tin Can Production Lines
Automatic Chemical Tin Can Production Lines
Semi-automatic 1-5L Round / Square / Rectangular Tin Can Production Lines
Semi-automatic 10-20L Paint Bucket Production Lines
Semi-automatic 15-18L Square Tin Can Production Lines
Semi-automatic 40-60L Bucket Production Lines
Press Dies
And so on......
‘To be the best supplier’ is the attitude of our company.
We will keep on providing modern and advanced machines to bring greater value-added benefit for our customers.
If you want to know more about us, please don’t hesitate to contact us at any time.
Welcome to our company!
