Puncher/punch Pressing Dies/aerosol/spray Tin Can Dome and Cone Making Machine
- Ningbo Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Puncher/punch Pressing Dies/aerosol/spray Tin Can Dome and Cone Equipment
-
Automatic Aerosol Spray Tin Can Cap/Lid/Bottom/Cone/Dome Making Machine Production Line
-
Tin Can Curler For Aerosol Spary Can Making Line
-
Aerosol Spary Tin Can Cone and Dome Making Machine/Lining Equipment
-
Spray / Aerosol Tin Can Cone Making Line
-
Aerosol Tin Cone and Dome Making Machine
Product Details
| Condition | New | Application | Chemical, Food, Other, Chemical, Food, Machinery & Hardware, Aerosol/Spray | |
| Packaging Type | Cans | Packaging Material | Metal | |
| Automatic Grade | Semi-Automatic | Driven Type | Hydraulic | |
| Voltage | 380V | Power | 1.5KW | |
| Place of Origin | Zhejiang, China | Brand Name | Golden Wing | |
| Model Number | J23-16 | Dimension(L*W*H) | 1150*900*1910mm | |
| Weight | 70000KG | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

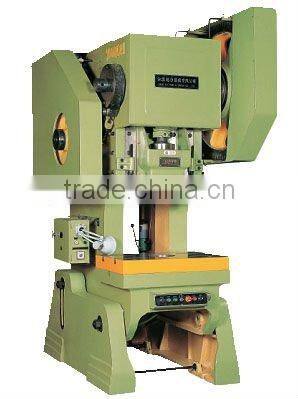

Puncher/punch pressing dies/aerosol/spray tin can dome and cone making machine
| Name | Puncher/punch pressing dies/aerosol/spray tin can dome and cone making machine |
Model | J23-16 |
| Usage | It's used for aerosol tin can dome and cone making |
Nominal force | 160KN |
Stroke under nominal force | 5mm |
Slide block stroke | 55mm |
Number of stroke | 125/min |
Max die set height | 160mm |
Die set height adjustment | 45mm |
Distance from slide block centre to the frame | 160mm |
Worktable dimensions | 300*450mm |
Dimensions of worktable hole | Φ100mm |
Thickness of bolster | 40mm |
Hole dimensions in bed | Φ210*160*240 |
Dimension of slide block bottom surface | 180*200mm |
Size of the handle hole | Φ40*60mm |
| Distance between columns of body | 220mm |
| Motor Power | 1.5KW |
| Dimension | 1150*900*1910mm |
