MAL Mini Air Cylinder Aluminum alloy 16-40MM Bore
- 1000 Piece / Pieces per Month
- Ningbo Shanghai
- T/T Credit Card
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Piston Cylinder | |
| Power | Pneumatic | Body Material | Aluminum | |
| Maximum Stroke | 500mm | Shaft Diameter | 8,10,12,16mm | |
| Place of Origin | Zhejiang, China | Model Number | MAL Series | |
| Brand Name | Kunmanical |
Product Description
Features
MAL Mini Air Cylinder 16-40MM Bore
1.Corrosion-resistant: the stainless steel material barrel with a great corrosion and resistance and the special surface treatment could guarantee a durable working life
2.Anodized aluminum body for superior wear resistance
3..A choice of stroke length, and a variety of catalogue options
Specifications
Bore size (mm) | 20 | 25 | 32 | 40 |
| |
Fluid | Air |
| ||||
Action | MAL/MALD/MALJ | Double acting, Single/Double rod |
| |||
MSAL/MTAL | Single acting, Single rod, Spring return/extend |
| ||||
Minimum operating pressure | Double acting | 0.1 Mpa |
| |||
Single acting | 0.2 Mpa |
| ||||
Maximum operating pressure | 1.0 Mpa |
| ||||
Proof pressure | 1.5 Mpa |
| ||||
Ambient and fluid temperature | -20 to 80°C (No freezing) |
| ||||
Cushion | Rubber bumper |
| ||||
Lubrication | Non-lube |
| ||||
Piston rod dia. | 8 mm | 10 mm | 12 mm | 16 mm |
| |
Piston rod thread | M8x1.25 | M10x1.25 | M12x1.25 |
| ||
Port size | 1/8 | 1/4 |
| |||

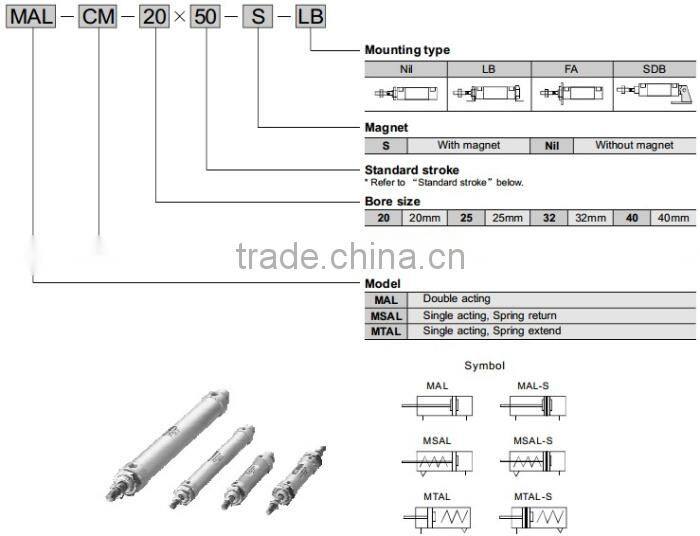

Ordering Code

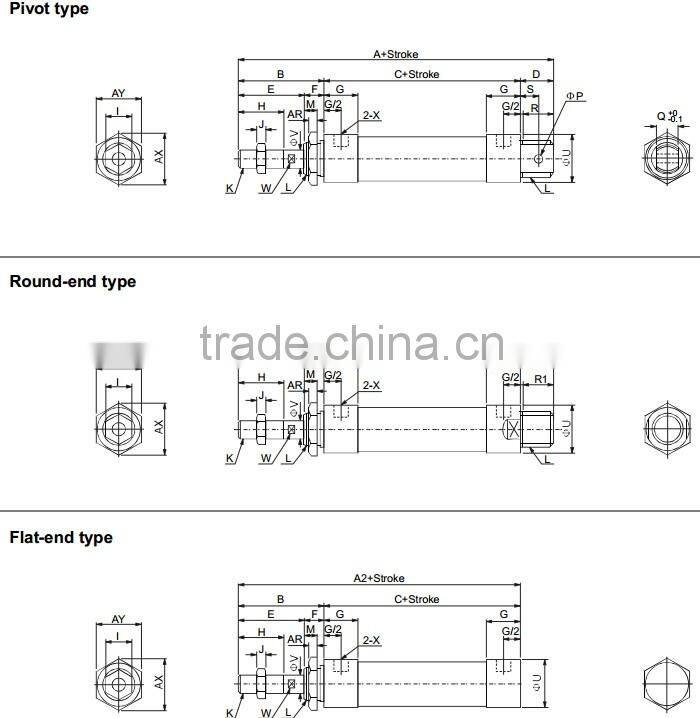

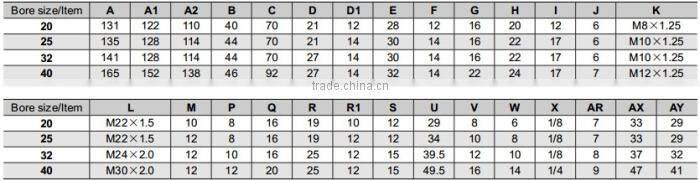

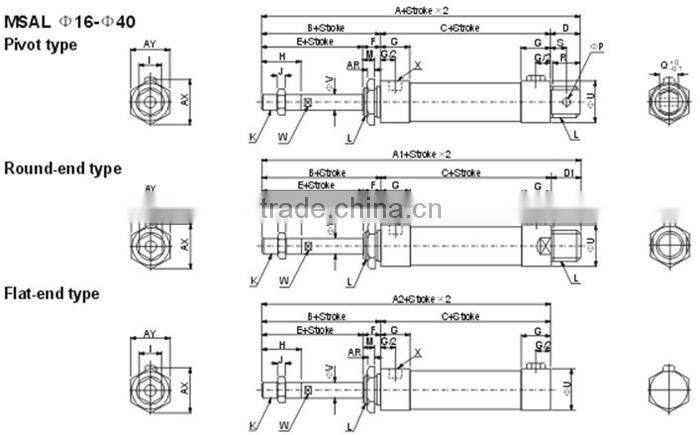

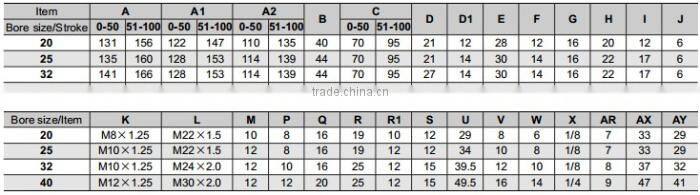

Dimensions

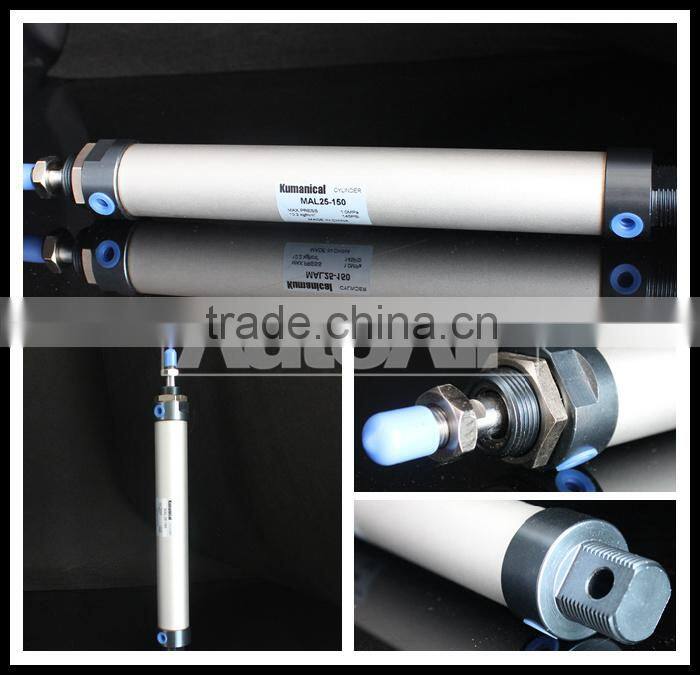

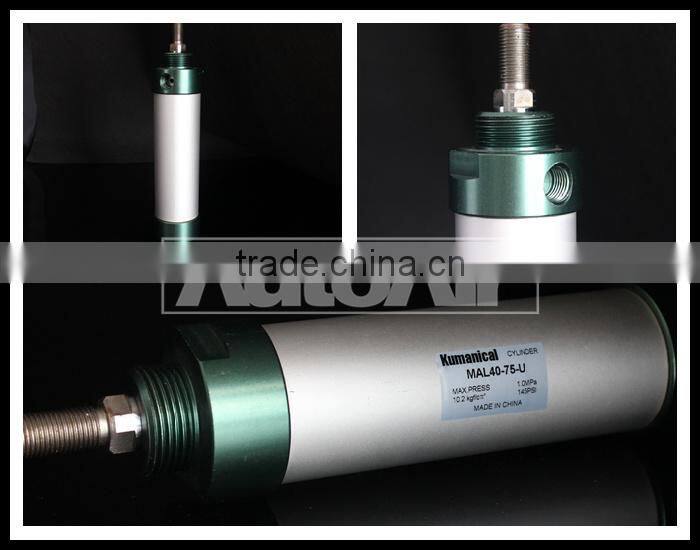

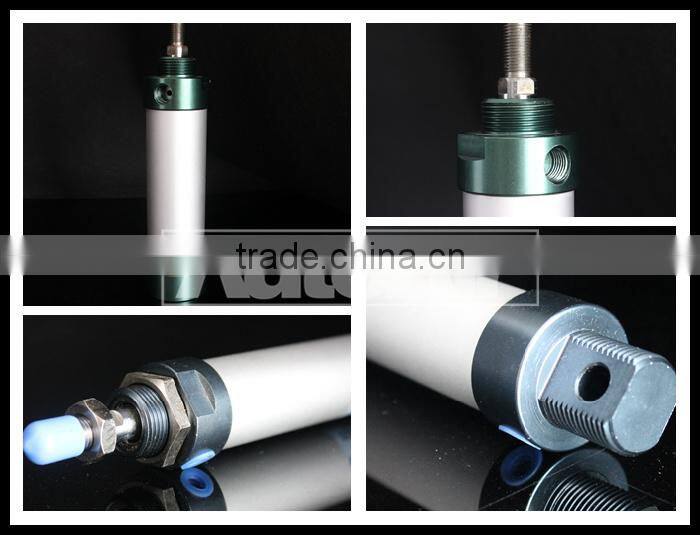

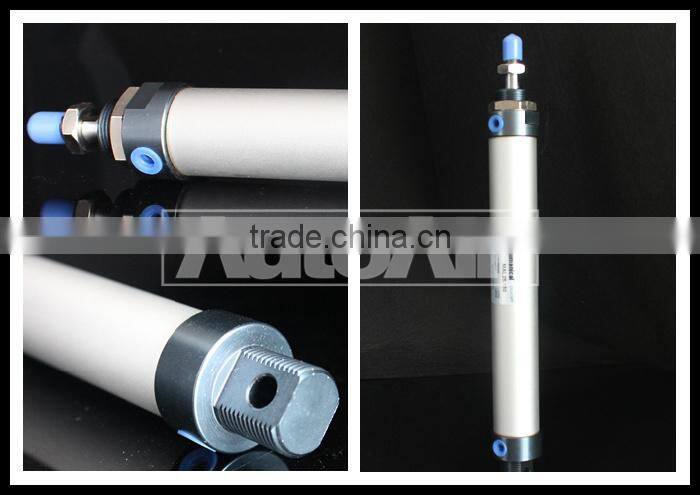

Detail Show
Why choose us
1: Various style for completely series pneumatic products for you to choose
2: High quality with competitive price
3: Sample order & small quantity order is ok
4: Provide free products information.
5. Reliable quality assured and active after-sell service
Payment and Shipment
Payment: T/T, Western Union, 30% deposit and 70% balance before shipping, LC, ;
Shipment: Usually we send the goods by DHL, FedEx, UPS, TNT, or EMS or as you require;
After we shipped your goods, we will send you the tracking number by E-mail.
If you do not receive it within 7 business days after shipping, please contact us.
Note:2: We do our best to ship your order in 2 week after receive your payment,and please allow 4-7 working days for the arrival of your shipment. Thank you !
Standard Model
MAL16X25, MAL16X50,MAL16X75,MAL16X100,MAL16X125, | MAL16X150, MAL16X175,MAL16X300,MAL16X350,MAL16X400, | MAL20X25, MAL20X50,MAL20X75,MAL20X100, MAL20X125, | MAL20X150, MAL20X175,MAL20X200,MAL20X225,MAL20X250, | MAL20X300, MAL20X350,MAL20X400,MAL20X450,MAL20X500, |
MAL25X25, MAL25X75,MAL25X100,MAL25X125, | MAL25X150,MAL25X175,MAL25X200,MAL25X225,MAL25X250 | MAL25X300,MAL25X350,MAL25X400,MAL25X450,MAL25X500, | MAL32X25, MAL32X50, MAL32X75, MAL32X100,MAL32X125, | MAL32X150,MAL32X175,MAL32X200,MAL32X225,MAL32X250, |
MAL32X300,MAL32X350,MAL32X400,MAL32X450,MAL32X500, | MAL40X25, MAL40X25, MAL40X50,MAL40X75,MAL40X100, | MAL40X125,MAL40X150,MAL40X175,MAL40X200,MAL40X225, | MAL40X250,MAL40X300,MAL40X350,MAL40X400,MAL40X450, | MAL40X500 |
