Airtac Type TN TDA Cylinder KOGANEI Twin Dual Rod Cylinder
- Ningbo Shanghai
- T/T Credit Card
You May Like
-
CQM Series Compact Cylinder With Guide Rod
-
Good Quality CQM Series Compact Guide Cylinder Plunger Type
-
MAL Mini Air Cylinder Aluminum Alloy 16-40MM Bore
-
CQM Series Compact Cylinder Guide Rod Type
-
MAL Series Aluminum Alloy Air Cylinder ISO6432
-
EMC Type MA6432 Series Stainless Steel Cylinder Air Mini Cylinder ISO6432
Product Details
| Standard or Nonstandard | Standard | Structure | Piston Cylinder | |
| Power | Pneumatic | Body Material | Aluminum | |
| Maximum Stroke | 200 | Shaft Diameter | 10,20,30,40,50,60,70,75,100,125,150mm | |
| Place of Origin | Zhejiang, China | Model Number | TN Series | |
| Brand Name | Kunmanical |
Product Description
TN Series Pneumatic Cylinder
We’re professional manufacturer of pneumatic components, such as Solenoid Valve, Cylinder, FRL unit, fittings and other hydraulic valve.
Features
TN Series Pneumatic Cylinder.
Equivalent to AIRTAC TN Series Pneumatic Cylinder, with the same appearance.
Daul rod design, with twin piston.
Bore size(mm): 10, 15, 20, 25, 32.
Double acting, Single rod
Rubber bumper.
Built-in magnet is standard.
Specifications
Bore size (mm) | 10 | 16 | 20 | 25 | 32 |
Fluid | Air | ||||
Action | Double acting, Single rod, Twin piston | ||||
Minimum operating pressure | 0.1 MPa | ||||
Maximum operating pressure | 1.0 Mpa | ||||
Proof pressure | 1.5 MPa | ||||
Ambient and fluid temperature | -20 to 80°C (No freezing) | ||||
Cushion | Rubber bumper | ||||
Lubrication | Non-lube | ||||
Port size | M5×0.8 | 1/8 | |||

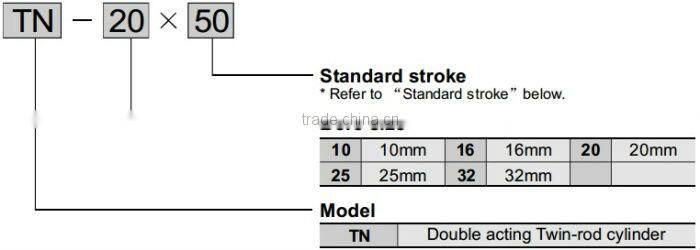

Ordering Code

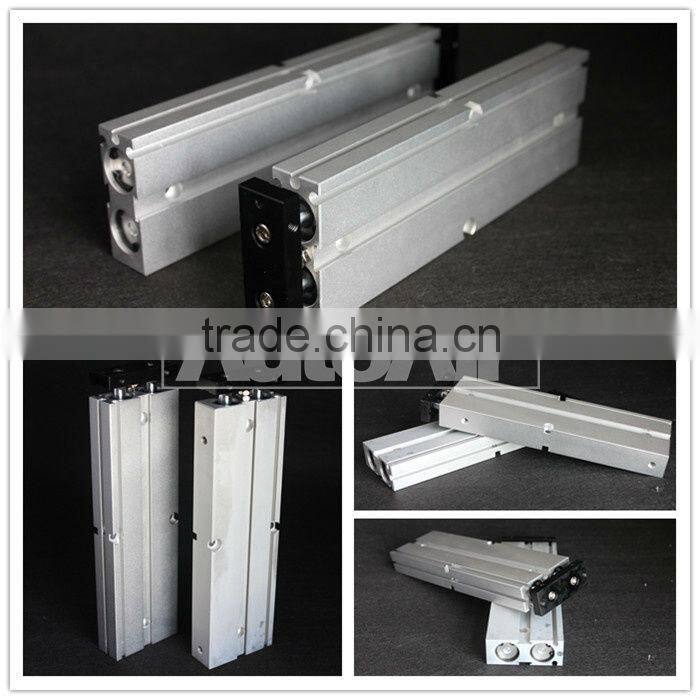

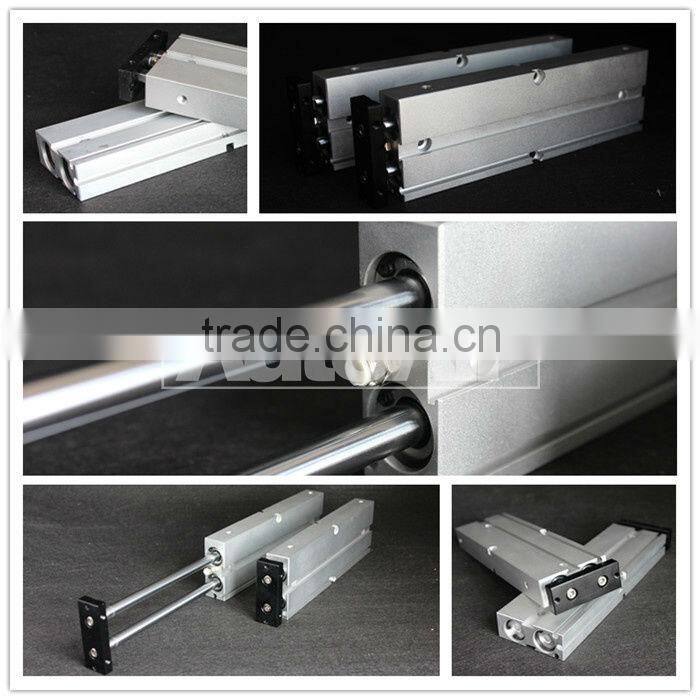

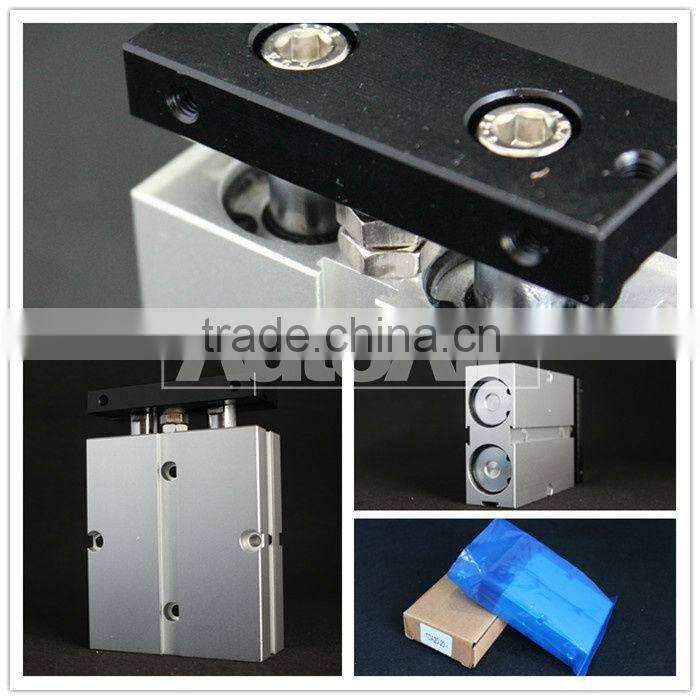

Detail Show
Why choose us
1: Various style for completely series pneumatic products for you to choose
2: High quality with competitive price
3: Sample order & small quantity order is ok
4: Provide free products information.
5. Reliable quality assured and active after-sell service
Payment and Shipment
Payment: T/T, Western Union, 30% deposit and 70% balance before shipping, LC, ;
Shipment: Usually we send the goods by DHL, FedEx, UPS, TNT, or EMS or as you require;
After we shipped your goods, we will send you the tracking number by E-mail.
If you do not receive it within 7 business days after shipping, please contact us.
Note:2: We do our best to ship your order in 2 week after receive your payment,and please allow 4-7 working days for the arrival of your shipment. Thank you !
Standard Model
TN10X10 TN10X20 TN10X30 TN10X40 TN10X50
TN10X60 TN10X70 TN10X80 TN16X10 TN16X20
TN16X30 TN16X40 TN16X50 TN20X40 TN20X50
TN16X60 TN16X70 TN16X80 TN20X10 TN20X20
TN20X30 TN20X60 TN20X70 TN20X80 TN32X80
TN25X10 TN25X20 TN25X30 TN25X40 TN25X50
TN25X60 TN25X70 TN25X80 TN32X40 TN32X50
TN32X10 TN32X20 TN32X30 TN32X60 TN32X70
