One-touch Pneumatic Fitting Branch Universal Female Elbow KQ2ZF
US$ 1.3 - 2.3
/ Piece
10 Pieces(Min. Order)
- Ningbo
- T/T Credit Card
You May Like
Product Details
| Type | Fittings | Place of Origin | Zhejiang, China | |
| Model Number | KQ2ZF | Brand Name | Kumanical |
Product Description
One-touch Pneumatic Fitting Branch Universal Female Elbow KQ2ZF
Dimension
Specifications
| O | MODEL | S | T | L1 | L2 | L3 | D1 | D2 | A | P | M |
| 4 | KQ2ZF 04-M5 | 8 | M5 | 20.6 | 11.1 | 20.1 | 10.4 | 9.9 | 16.1 | 13.5 | 16.1 |
| KQ2ZF 04-01S | 14 | R1/8 | 22.2 | 15.6 | 29.6 | 13.5 | 25.6 | ||||
| 6 | KQ2ZF 06-M5 | 8 | M5 | 23.6 | 12.6 | 20.1 | 12.8 | 9.9 | 16.1 | 17.1 | |
| KQ2ZF 06-01S | 14 | R1/8 | 24.6 | 15.6 | 29.6 | 13.5 | 25.6 | ||||
| KQ2ZF 06-02S | 17 | R1/4 | 25.2 | 20.1 | 38.6 | 17.7 | 32.6 | ||||
| 8 | KQ2ZF 08-01S | R1/8 | 28.6 | 17.1 | 31.1 | 15.2 | 27.1 | 16 | 18.6 | ||
| KQ2ZF 08-02S | R1/4 | 20.1 | 38.6 | 32.6 | |||||||
| 10 | KQ2ZF 10-02S | 19 | R1/4 | 31.6 | 22.2 | 41.1 | 18.5 | 20.8 | 35.1 | 19.3 | 21.1 |
| KQ2ZF 10-03S | 22 | R3/8 | 24.6 | 45.6 | 25.3 | 39.1 | |||||
| 12 | KQ2ZF 12-03S | R3/8 | 34.1 | 20.9 | 21.6 | 22.1 | |||||
| KQ2ZF 12-04S | 24 | R1/2 | 35.1 | 25.6 | 50.2 | 27.2 | 42.2 |
Ordering Code
| KQ | |||||
| KQ 2 4 3 - 2 or 3 S | |||||
| KQ | One-touch fittings | ||||
| 2 | Product’s color: White body. Available only for white color body. | ||||
| 4 | Model | ||||
| 3 | Applicable tubing O.D | ||||
| 2 or 3 | Connection Thread/Applicable tubing O.D | ||||
| S | with thread seal; Nil: None | ||||

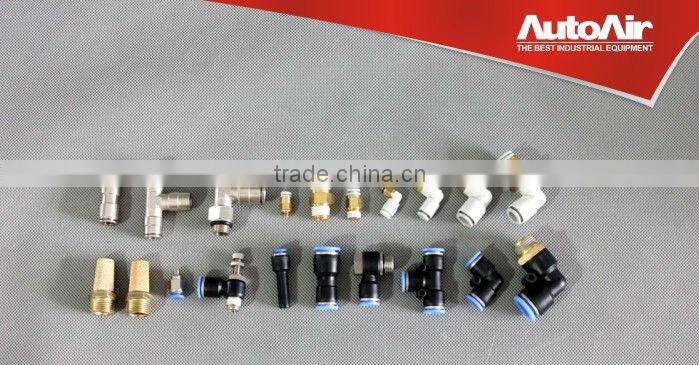

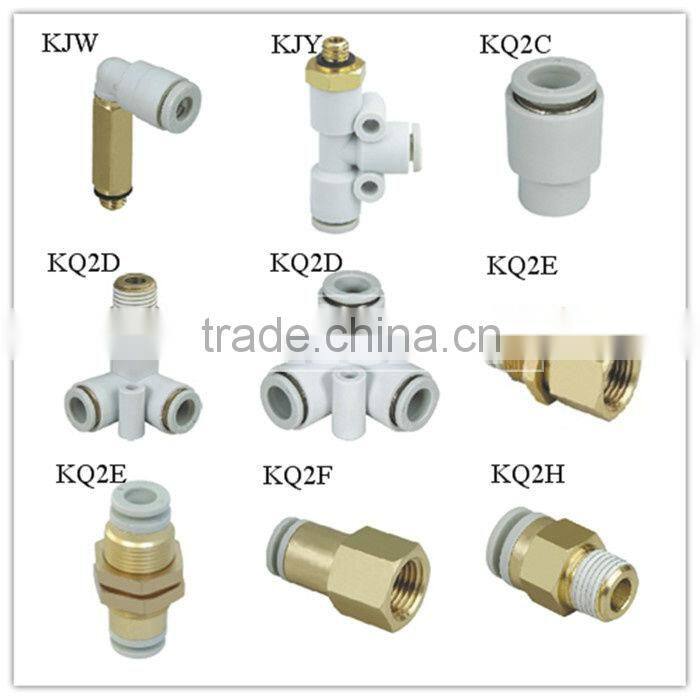

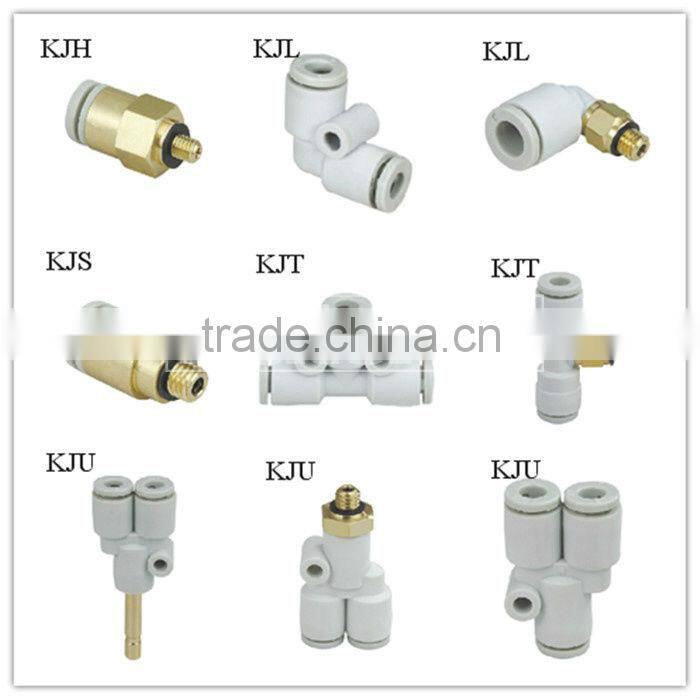

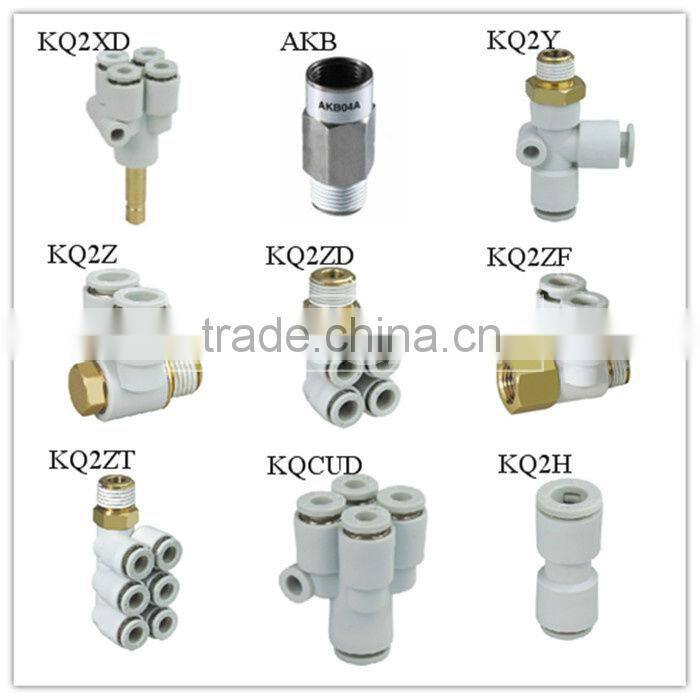

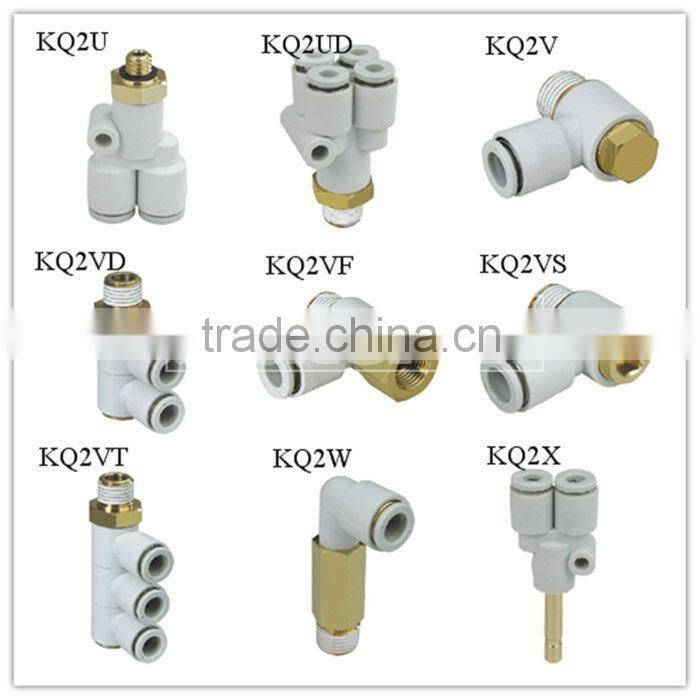

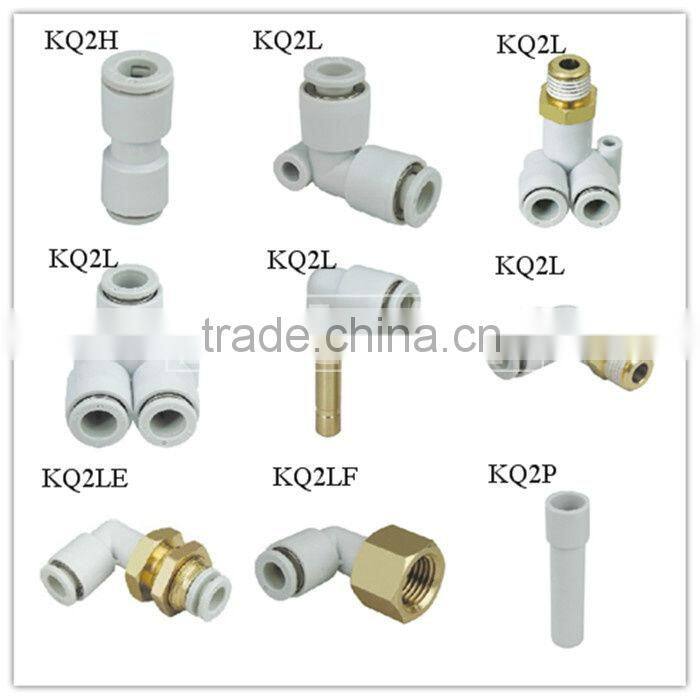

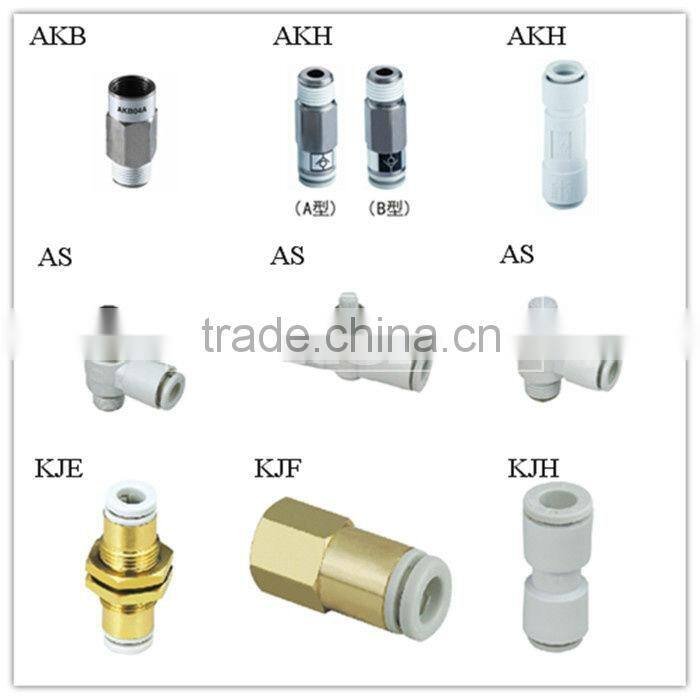

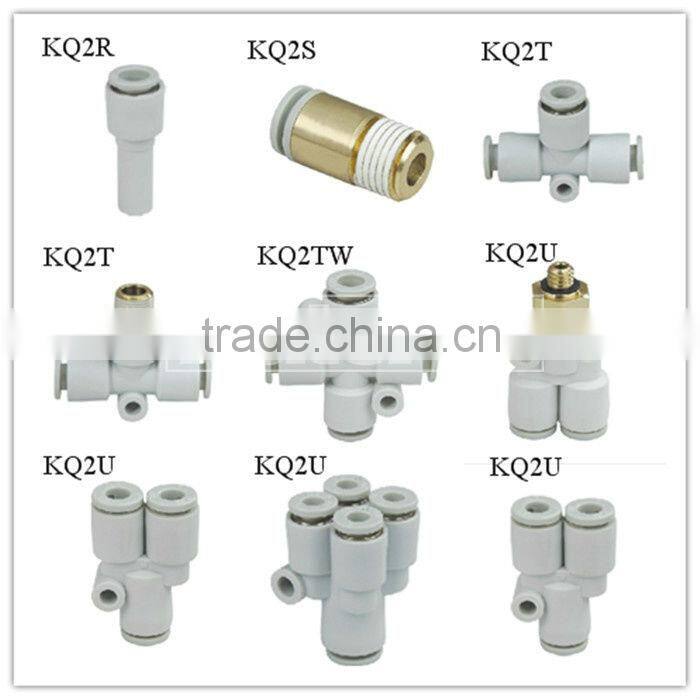

Product Line

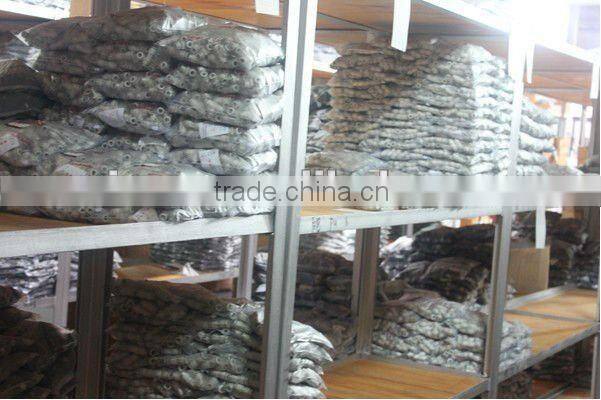

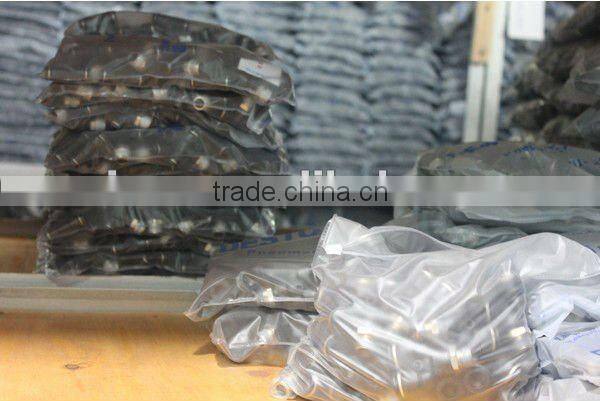

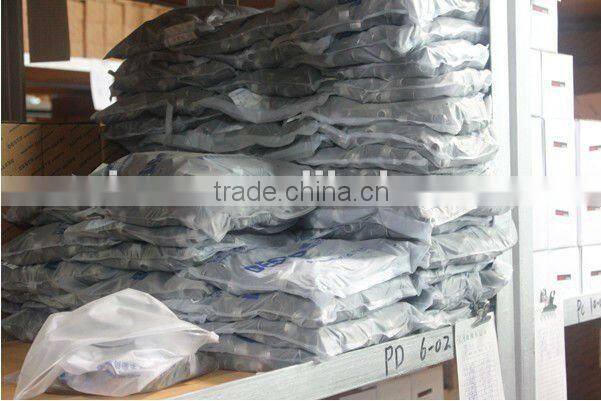

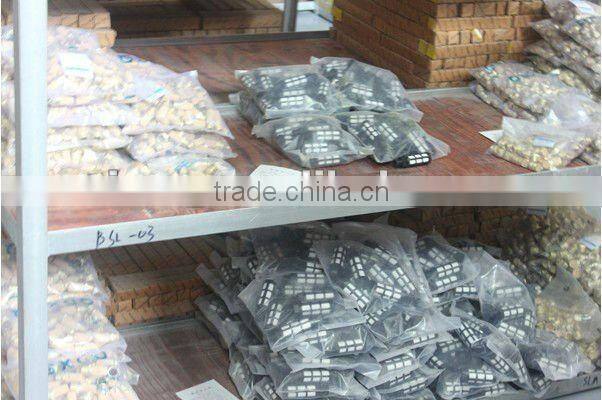

Packing

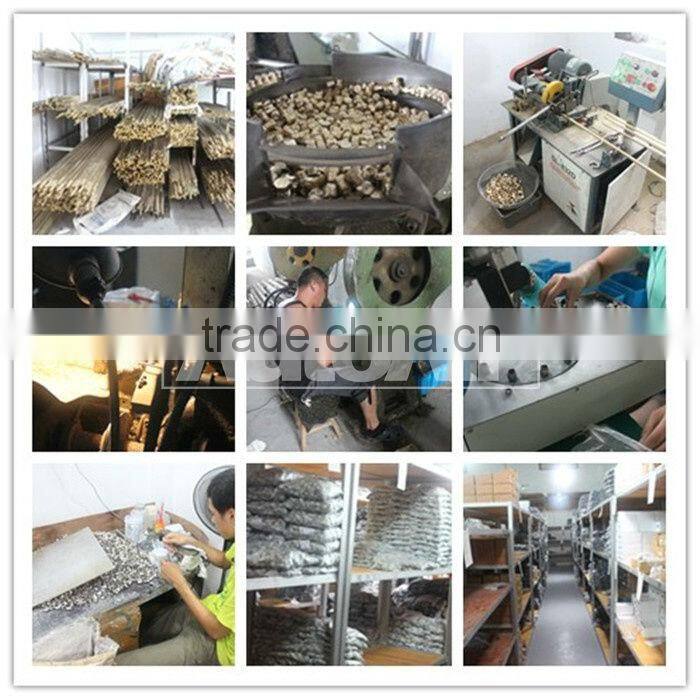

Company Profile
