Kumanical CJ40-160 AC Contactor
US$ 20 - 60
/ Piece
50 Pieces(Min. Order)
- Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Kumanical | |
| Model Number | CJ40-160 | Electricity Type | AC | |
| Number of Pole | 3 | Phase | 3 | |
| Main Circuit Rating Voltage | Other, up to 660V | Main Circuit Rating Current | Other, up to 1000A |
Product Description
Specifications
1.CJ40 is new type contactor,improve from CJ202 Siemens Standard
3 Current up to 1250A
4 Use thermal relay JR20 or JR36
1.Specification
CJ40 is mainly used to connect and turn off electric circuit in electrical powerline of AC 50Hz or 60Hz, rated working voltage upto 660V or 1140V and rated working current upto 1000A.
| Type | Rated insulating voltage Ui(V) | Rated working voltage Us(V) | Rated heating current Ith(A) | The IeA under the intermittent duty | AC-3 Pe(KW) | Under the uninterrupted duty | |||
| AC-1 | AC-2 | AC-3 | AC-4 | ||||||
| CJ40-6.3 | 690 | 220 | 10 | 10 | - | 6.3 | 6.3 | 1.5 | 10 |
| 380 | 2.2 | ||||||||
| 660 | 3.6 | 3.6 | 3 | ||||||
| CJ40-10 | 220 | 10 | 10 | - | 10 | 10 | 2.2 | 10 | |
| 380 | 4 | ||||||||
| 660 | 5.2 | 5.2 | |||||||
| CJ40-16 | 690 | 220 | 16 | 16 | - | 16 | 16 | 45 | 16 |
| 380 | 7.5 | ||||||||
| 660 | 13 | 13 | 11 | ||||||
| CJ40-25 | 690 | 220 | 32 | 32 | - | 25 | 25 | 5.5 | 32 |
| 380 | 11 | ||||||||
| 660 | 14.5 | 14.5 | 13 | ||||||
| Type | Rated insulating voltage Ui(V) | Rated working voltage Us(V) | Rated heating current Ith(A) | The IeA under the intermittent duty | AC-3 Pe(KW) | Under the uninterrupted duty | |||
| AC-1 | AC-2 | AC-3 | AC-4 | ||||||
| CJ40-40 | 690 | 220 | 55 | 55 | - | 40 | 40 | 11 | 55 |
| 380 | 22 | ||||||||
| 660 | 25 | 25 | |||||||
| CJ40-63 | 690 | 220 | 80 | 80 | 63 | 63 | 63 | 18.5 | 80 |
| 380 | 30 | ||||||||
| 660 | 55 | ||||||||
| CJ40-80 | 220 | 80 | 80 | 80 | 22 | ||||
| 380 | 37 | ||||||||
| 660 | 63 | 63 | 63 | 55 | |||||
| CJ40-100 | 220 | 125 | 125 | 100 | 100 | 100 | 30 | 125 | |
| 380 | 45 | ||||||||
| 660 | 80 | 80 | 80 | 75 | |||||
| CJ40-125 | 220 | 125 | 125 | 125 | 37 | ||||
| 380 | 55 | ||||||||
| 660 | 80 | 80 | 80 | 75 | |||||
| CJ40-160 | 690 | 220 | 250 | 250 | 160 | 160 | 160 | 45 | 250 |
| 380 | 75 | ||||||||
| 660 | 125 | 125 | 125 | 110 | |||||
| CJ40-200 | 690 | 220 | 200 | 200 | 200 | 55 | |||
| 380 | 90 | ||||||||
| 660 | 125 | 125 | 125 | 110 | |||||
| CJ40-250 | 690 | 220 | 250 | 250 | 250 | 75 | |||
| 380 | 132 | ||||||||
| 660 | 125 | 125 | 125 | 110 | |||||
| CJ40-315 | 690 | 220 | 500 | 500 | 315 | 315 | 315 | 90 | 500 |
| 380 | 160 | ||||||||
| 660 | 300 | ||||||||
| CJ40-400 | 690 | 220 | 400 | 400 | 400 | 110 | |||
| 380 | 220 | ||||||||
| 660 | 315 | 315 | 315 | 300 | |||||
| CJ40-500 | 690 | 220 | 500 | 500 | 500 | 150 | |||
| 380 | 280 | ||||||||
| 660 | 315 | 315 | 315 | 300 | |||||
| CJ40-630 | 690 | 220 | 630 | 630 | 630 | 630 | 630 | 220 | 630 |
| 380 | 335 | ||||||||
| 660 | 500 | 500 | 500 | 475 | |||||

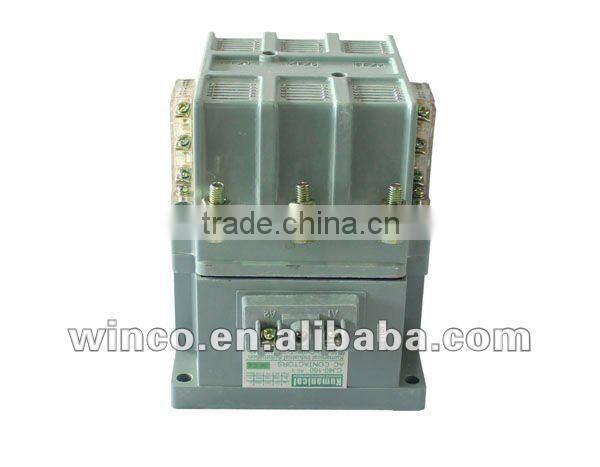

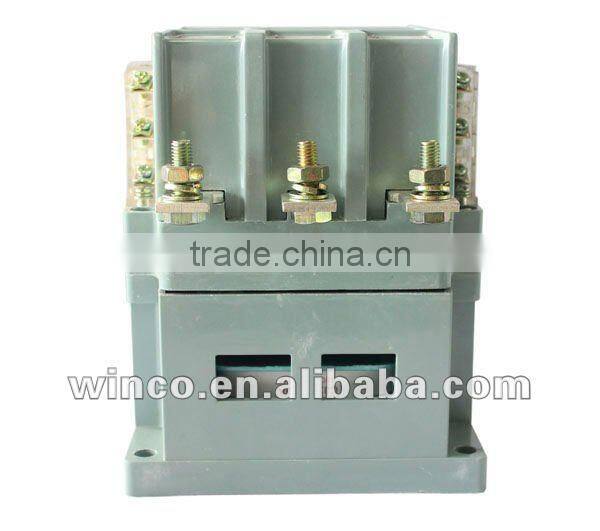

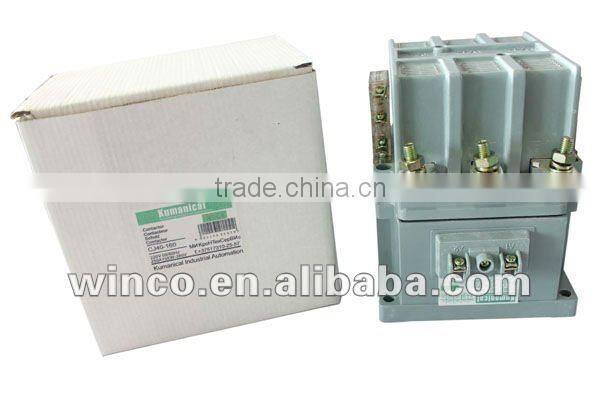

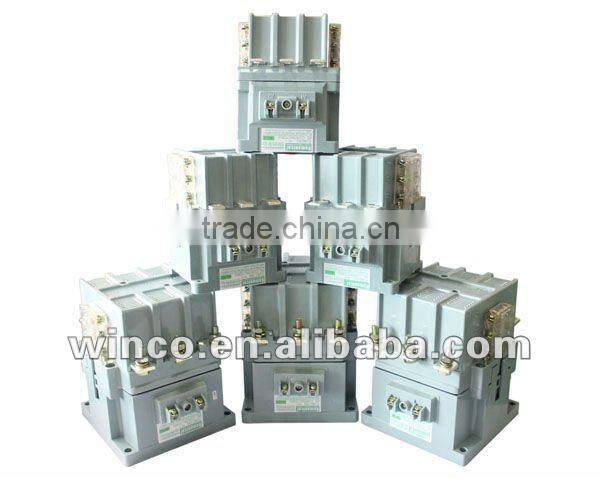

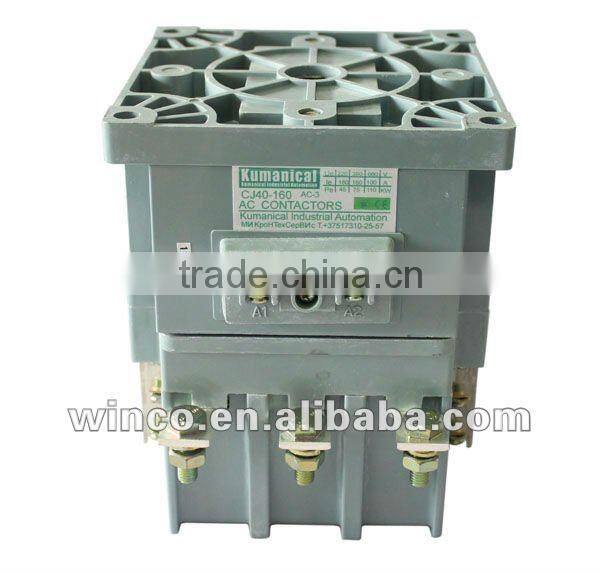

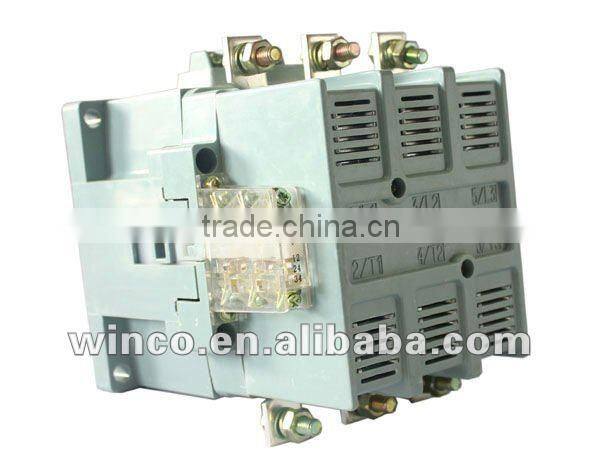

2.Photo
