IHC3806 China Bore Optical Encoder price optical dc motor hollow shaft incremental rotary encoder digital speed sensor

YueQing YUMO electric Co., Ltd is set research and development, manufacturing and sales as one of the international

science and technology enterprise integrated automation, The company dedicated to industrial automation control products (encoder,

sensor, safety light curtain, automatic matching accessories and other products). R & D and manufacturing, has been committed

to technological innovation, combined with the height of the perfect.

product quality and excellent corporate culture, for the wholeBall industrial automation customers to provide professional technical

support and solutions. Products and widely used in the servo motor, CNC machine tools, automotive, glass, ceramic, elevator, paper, food,

textile machinery Machinery, packaging machinery, wind power generation, industrial assembly automation control field.

Companies adhere to the "integrity-based, quality first, the user is supreme, the development strategy of "strong in technology research

and development as a starting point, to Professional international management team as the driving force, focus on customer needs.

enhance core competitiveness, to build the brand of automation technology.

VERSION OF TYPE SERIES:

ORDERING CODER:

ISC   38    06     401    G    1024    BZ      1   --- 5     L

1        2      3        4      5       6        7        8      9     10

 Features:

* ASIC devices internal, good reliability, long life, anti-jamming performance.
* Stainless steel shaft has a higher stability and protection.
* Metal shell is more solid and anti-impact.
* Outlet end use waterproof metal interface protection, infold sleeve design, no loose.
* Bearing load heavy, anti-oil and water.
* Applicability to a wide variety of mechanical and industrial control.

IHC3806.35 SERIES

Blind and hollow shaft encoder, axis inside

Diameterφ8mm, φ6 &φ6.35mm(Option),housing

diameterφ38mm.

With flex bracket flange, easy for installing

Small volume, light weight, stable output

Applications:

Computerized embroidery punching machine

textile machines

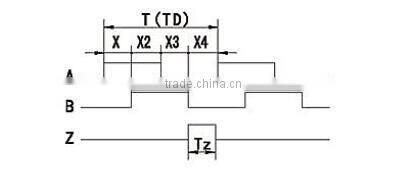

Square-wave accuracy:X1+x2=1/2T±1/12T

                  X3+x4=1/2T±1/12T

Pitch error of period: ±0.01T

Pitch error of phase position : ≤1/18T

Z phase: T z=1/4T(1T,1/2T, 1/4T…)

Period of pulses: T=360 º/N(N:output pulses)

Signal accuracy : Xn=1/4T±1/12T(n=1,2,3,4)

A leads B clockwise when viewing the encoder shaft end,

The position of Z phase against A,B phase is not specified.

TECHNICAL SPECIFICATIONS

Terminal assignment:

Ordering code:

_IHC3806  -    _{401             G        600         BZ1           -   12-24             C}

         Series                    Sequence                  Connection     Number                Output                               Supply                      Output

         Number                                                                              of Pulses                Signals                            Voltage                     Circuit

Series :IHC3806, Radial cable: G, Number of pulses :600p/r Output Signals: ABZ,T z=1T, Supply Voltage: 12-24V DC ,Output circuit :Open collector NPN,. Record: IHC3808-401G600BZ1-12-24C

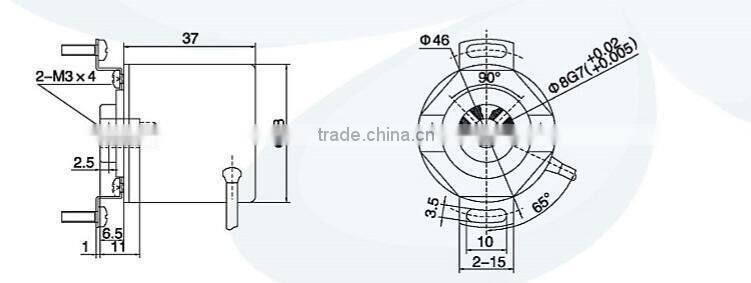

 Dimensions:

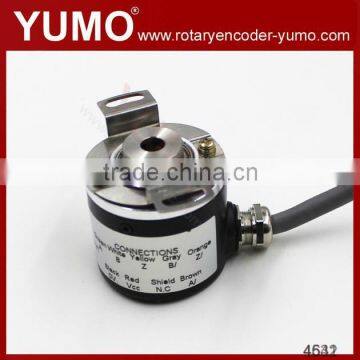

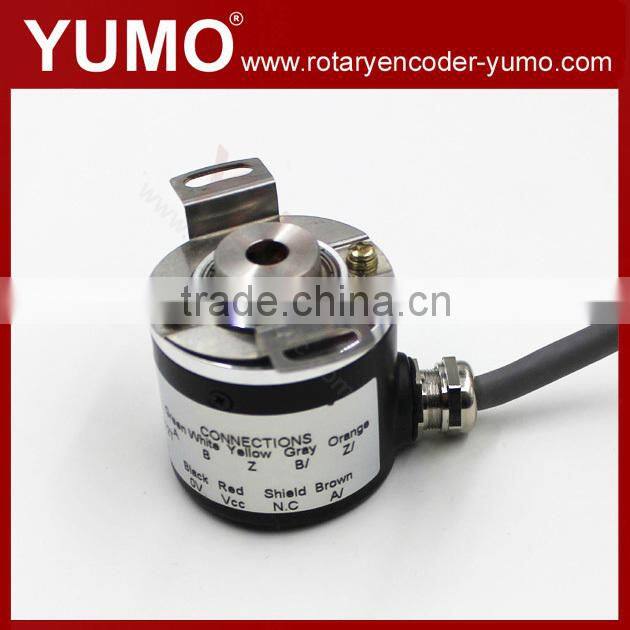

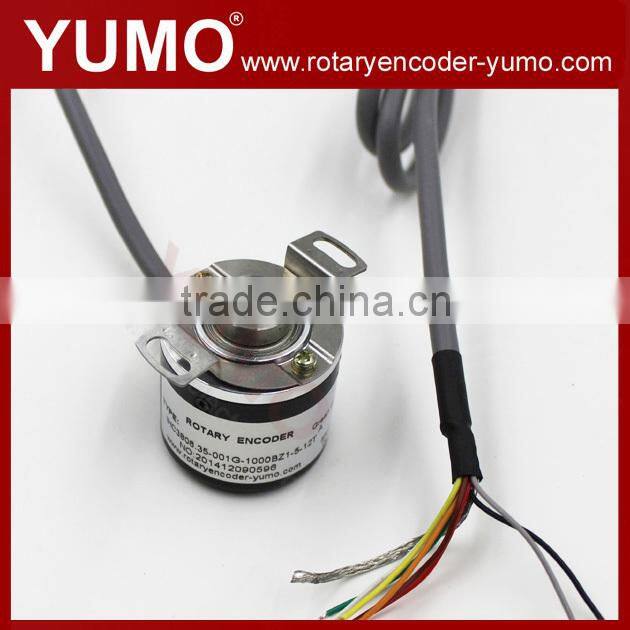

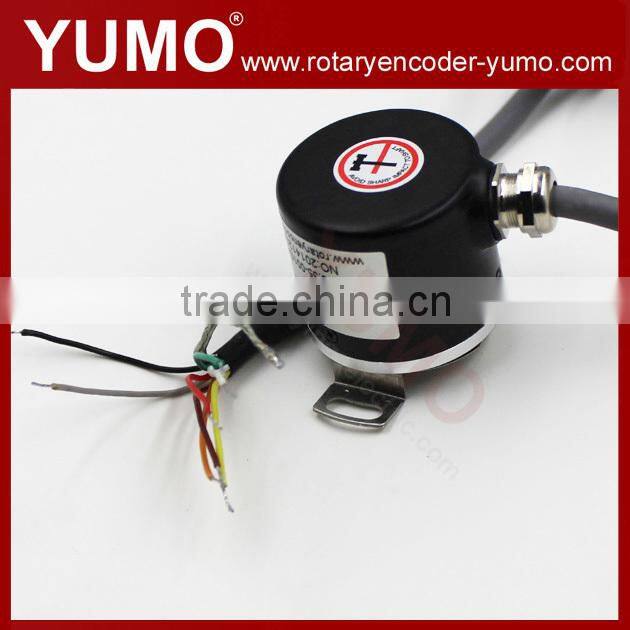

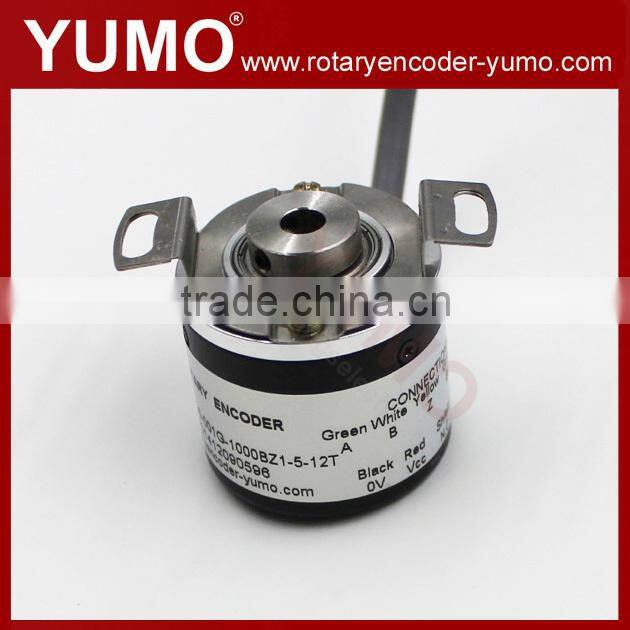

 Rotary Encoder Photo:
