Home > Products > Feed storage and convey system > Fiberglass Feed Bin for Poultry and Livestock
Fiberglass Feed Bin for Poultry and Livestock
Negotiable
/ Set
1 Set(Min. Order)
- Shanghai
- T/T
You May Like
Product Details
| Type | Feed storage and convey system | Use | FRP Poultry feed silo | |
| Certification | ISO | Place of Origin | Shanghai, China | |
| Brand Name | Extra Machinery | Model Number | 8000300000 | |
| Condition | New |
Product Description
Specifications
Fiberglass feed bin for poultry and livestock1. Materila: reinforced fiberglass silo
2.good protection to your feed;
3. 2.4-
Fiberglass feed bin for poultry and livestock
Silo size
| Type | Capacity (m3) | Ton | Legs | silo pcs | A | B | h | C | D | E | F | Foundation size |
| 080400 | 4 | 2.4 | 3 | 2 | 3516 | 1080 | 745 | 300 | 1800 | 3000 | 1688 | 3000x3000x300 |
| 080600 | 6 | 3.6 | 3 | 2 | 4190 | 1187 | 850 | 300 | 2020 | 3000 | 1866 | 3000x3000x300 |
| 080800 | 8 | 4.8 | 3 | 2 | 4850 | 1120 | 785 | 300 | 2080 | 3000 | 1930 | 3000x3000x300 |
| 081000 | 10 | 6 | 3 | 2 | 5025 | 1095 | 757 | 300 | 2250 | 3000 | 2075 | 3000x3000x300 |
| 081250 | 12.5 | 7.5 | 3 | 2 | 5690 | 1100 | 745 | 300 | 2215 | 3000 | 2060 | 3000x3000x300 |
| 08180 | 18 | 10.8 | 4 | 3 | 6955 | 1374 | 1038 | 400 | 2492 | 4000 | 1883 | 4000x4000x400 |
| 08200 | 20 | 12 | 4 | 3 | 7265 | 1314 | 977 | 400 | 2492 | 4000 | 1883 | 4000x4000x400 |
| 082150 | 21.5 | 13 | 4 | 3 | 7420 | 1314 | 977 | 400 | 2590 | 4000 | 1955 | 4000x4000x400 |
| 082450 | 24.5 | 14.5 | 4 | 3 | 7960 | 1290 | 955 | 400 | 2600 | 4000 | 1960 | 4000x4000x400 |
| 08250 | 25 | 15 | 4 | 3 | 8150 | 1115 | 778 | 400 | 2492 | 4000 | 1883 | 4000x4000x400 |
| 08300 | 30 | 18 | 4 | 3 | 8895 | 1125 | 790 | 400 | 2590 | 4000 | 1955 | 4000x4000x400 |
Advantages compare to steel silo:
| steel silo | our FRP silo | Result | |
| mechanical strength | 1-2mm | 5-10mm | higher strength |
| heat conductivity | 48/w.m.K | 5 /w.m.K | feed temperature don't change quickly |
| Anti-UV | 0 | yes | prevent your feed from going bad |
| Rust | 5-10 years | 30 years | never rust |
| Results | higher quality feed! Animal prefer! | ||
Installed project
Project in Japan
Project for COFCO
Project in North Korea

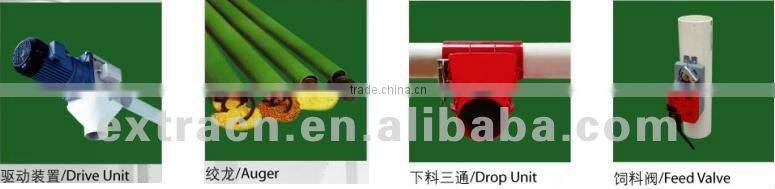

Auger loading system
load your feed automatically from the silo into your poultry or pig house
Type | Max. Length | Capacity | Power |
48 | 120m | 400kg/h | 0.55kw |
75 | 80/100m | 1000kg/h | 0.55/0.75kw |
90 | 80/100m | 1800kg/h | 0.55/0.75kw |
:whole farm transport
