Product Details
| Place of Origin | Shanghai, China | Brand Name | Hvcen | |
| Model Number | qc11y-20x4000 | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

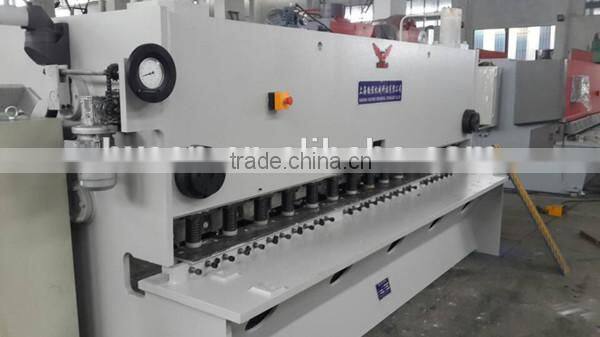

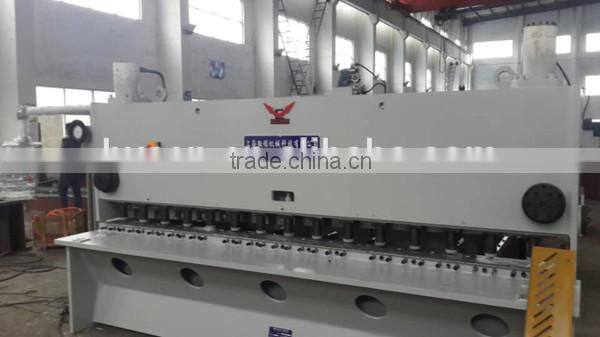

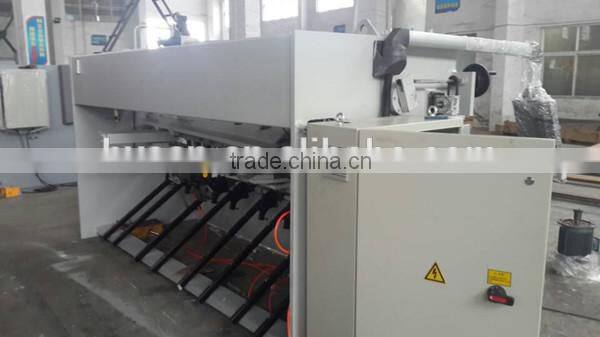

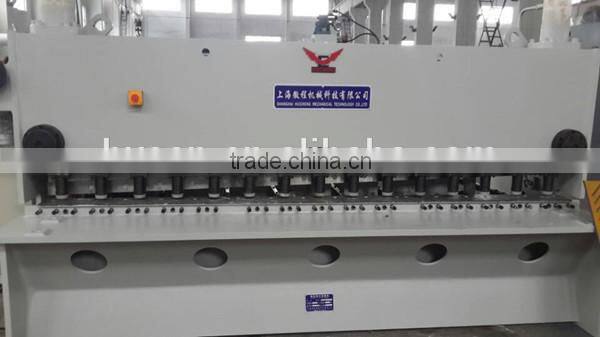

qc11y-20*4000 equipment for small business at home/cnc metal cutting machine
ⅠFEATURE OF QC11Y Hydraulic guillotine shears
1.All steel welded structure, vibrating treatment of aging for removal of internal stress, with good rigidity and
stability.
2.Integrated hydraulic transmission system, with good reliability.
3.Triple support rolling guide to eliminate gaps of support and enhance shearing quality.
4.Mechanical rear stopper with manual fine tuning, and digital indication.
5.Clearance in between shearing blades adjusted by hand wheel to ensure quick, accurate and convenient.
6.Rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce
deformation of the sheet.
7.Upper blade holder has inward tiling structure to facilitate material feed in and also enhance accuracy of the work piece.
8.Function of shearing in sections, function of aligning with light.
9.Safe fence and the electric inter-locker have been designed for the machine to ensure the operation safety.
10.Electric box:power off when open the door.
11.The machines is equipped with gear pump to reduce noise and the life is much longer.
12.All pipelines are connected by bit type tube fittings.
Ⅱ Export standard configuration
No. | Item | Remark |
1 | Motor | Siemens(Germany) |
2 | Gear Pump | Bosch Rexroth(Germany) |
3 | Casting connector | Cast.Co(China) |
4 | Electric parts | Schneider(France) |
5 | Hydraulic system | Rexroth(Germany) |
6 | Sealing rings | Valqua CO.(Japan) |
7 | Seal | DZ or NOK or VALQUA |
Ⅲ QC11Y Hydraulic guillotine shears technical data
No. | Specification | Value | Unit | |
1 | Model | QC11Y-20×4000 | set | |
2 | Cutting thickness | 20 | mm | |
3 | Cutting width | 4000 | mm | |
4 | Travel Times | 4-12 | n/min | |
5 | Cutting angle | 0.5-3.5° | ° | |
6 | Distance of back gauge | 600 | mm | |
7 | Motor | 37 | kw | |
8
|
Dimension
| L | 4600 | mm |
W | 2450 | mm | ||
H | 2720 | mm | ||
9 | Weight | 19000 | kg | |
We can supply various specifications of Press Brake, Plate Shearing Machine & Rolling Machine, with or without CNC according to customers' requirements .
We are also professional manufacturer of Punching Machine, Hydraulic Press, Iron Worker, Ventilation Equipment, Machine Tool Fittings, Bending Machine Dies, Punch Dies & Cutting tools.
Our products can be widely used in automobiles, ships, railway, aviation, metal works, electrical appliances, construction project, light industry and many other industries and fields.
All of our products have passed the ISO 9001 Quality System Certificate and CE Certificate.
If u want to know more information about our products, plz feel free to contact us! Welcome to visit our company!
