Drawing Punch Press Machine J21S 100T
- 200 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Punch Press Machine for Aluminum JB23 40T
-
w11s roll machine/cone rolling machine
-
four roller machine w12-16*2500/4-roller plate rolling machine
-
W11F-4*2000 flat bar rolling machine/channel bending roll
-
W11F-2*2000 plate roller rolling machine/tobacco rolling machine
-
W11S-25*2500 cones pre rolled/pre rolled cones
Product Details
| Condition | New | CNC or Not | Normal | |
| Power Source | Mechanical | Place of Origin | Shanghai, China | |
| Brand Name | Hvcen | Model Number | J21S-100 | |
| Power(W) | 7500 | Weight | 6100kg | |
| Dimension(L*W*H) | 1800*1360*2750mm | Certification | ISO&CE | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1 Drawing punch press machine;2 Professional factory;
3 Various model & SPEC. Customized sizes are also accepted.

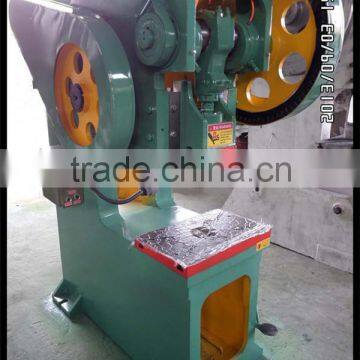

Drawing Punch Press Machine J21S 100T
Main performance and characteristics:
1 Its throat depth is more than twice of the common machine, more convenient when producing case, cabinet, door, cover and other large panel spare parts;
2 Steel-welded C-frame body, aging treatment, high rigidity, stable precision;
3 Crossed crankshaft, V-type guides of the slide realize high accuracy guidance;
4 Turn-key and rigid clutch realize flexible movement and reliable performance;
5 Press-collapse block device, to ensure safety in press operation;
Optional Device: Photoelectric Protector, Feeder, Stock Reel etc
Main Technical Parameters:
| Model | J21S-100 | |
| Norminal Pressure(kn) | 1000 | |
| Nominal Pressure Stroke(mm) | 9 | |
| Stroke of Slide(mm) | 130 | |
| Strokes(S. P. M. ) | 45 | |
| Max. Die Set Height(mm) | 310 | |
| Die Height Adjustment(mm) | 80 | |
| Distance Between Slide Center to Machinery Body(mm) | 500 | |
| Size of tabel | F-B(mm) | 600 |
| L-R(mm) | 600 | |
| Thickness(mm) | 100 | |
| Hole of Table | Diameter(mm) | 230 |
| Bottome Size of Slide | F-B(mm) | 270 |
| L-R(mm) | 360 | |
| Hole for Punch Shank | Diameter(mm) | 60 |
| Depth(mm) | 80 | |
| Distance Between Uprights(mm) | 380 | |
| Motor Power(kw) | 7.5 | |
| Overall Dimesion | F-B(mm) | 1800 |
| L-R(mm) | 1360 | |
| Height(mm) | 2750 | |
| Weight(Approximate)(kg) | 6100 | |
We can supply various specifications of Press Brake, Plate Shearing Machine & Rolling Machine, with or without CNC, according to customers' requirements.
We are also professional manufacturer of Punching Machine, Hydraulic Press, Iron Worker, Ventilation Equipment, Machine Tool Fittings, Bending Machine Dies, Punch Dies & Cutting tools.
All of our products have passed the ISO 9001 Quality System Certificate and CE Certificate.
If u want to know more information about our products, plz feel free to contact us!
Welcome to visit our company!
