mechanical press 500 tons/press machine mechanical 500 ton power press
- 200 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | CNC or Not | Normal | |
| Power Source | Mechanical | Place of Origin | Shanghai, China | |
| Brand Name | Hvcen | Model Number | JB23-100 | |
| Voltage | 380V | Power(W) | 7500 | |
| Weight | 5500kg | Dimension(L*W*H) | 1850*1320*2750mm | |
| Certification | ISO&CE | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

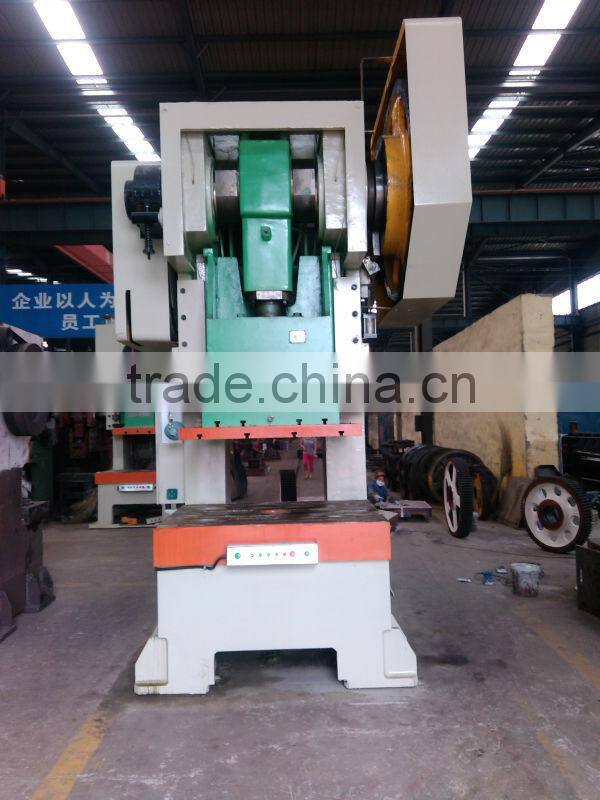

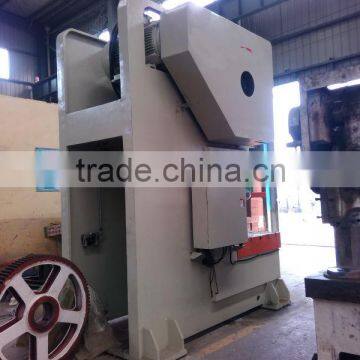

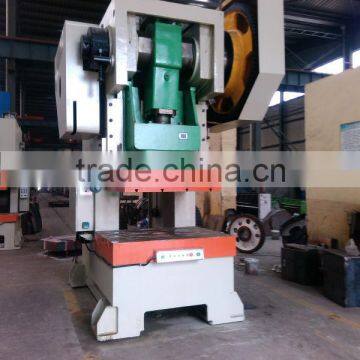

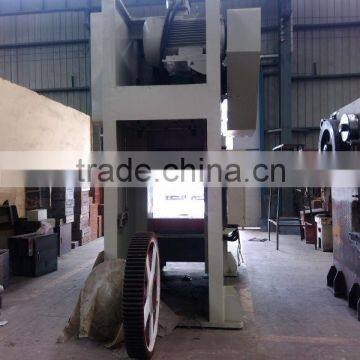

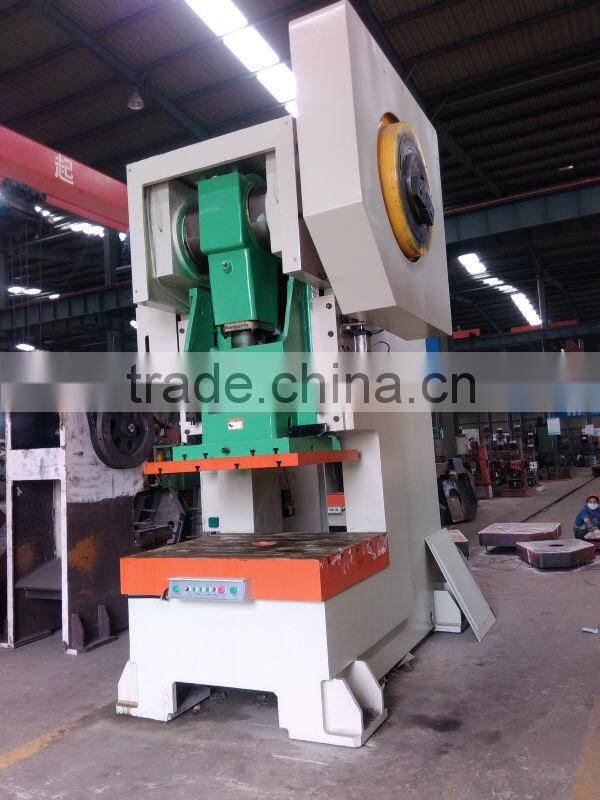

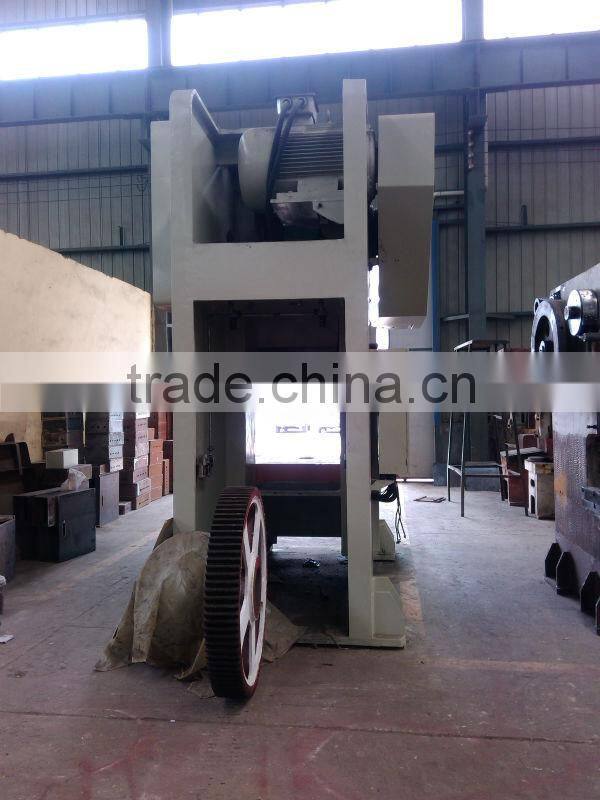

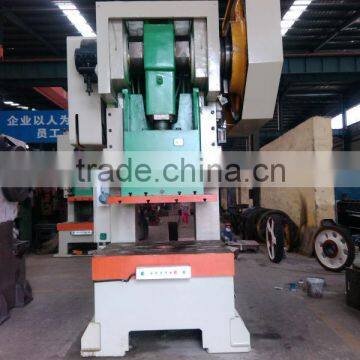

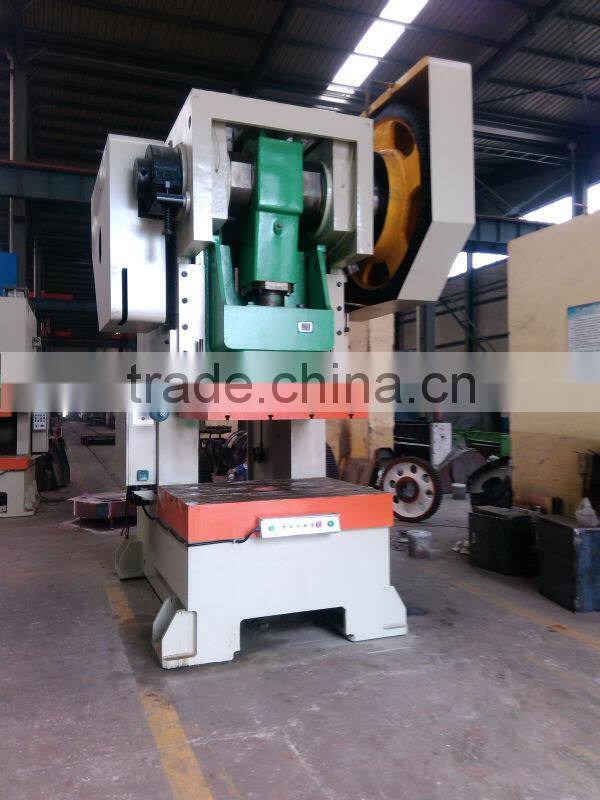

press machine/mechanical 500 ton power press
Main performance and characteristics:
1 Casting machine fuselage with stable performance.
2 C-frame machine fuselage, open and tiltable with large working space, easy for discharging the processed work pieces and the waste material.
3 Rigid turn key clutch, simple structure.
4 Belt-type brake, easy for adjustment.
5 Collapse type safety fuse, protect the whole machine from being damaged due to overload.
6 Horizontal crankshaft, easy for maintenance.
Optional Device: Photoelectric Protector, Feeder, Stock Reel etc.
Main Technical Parameters:
| Model | JB23-100 | |
| Norminal Pressure(kn) | 1000 | |
| Nominal Pressure Stroke(mm) | 9 | |
| Stroke of Slide(mm) | 130 | |
| Strokes(S. P. M. ) | 45 | |
| Max. Die Set Height(mm) | 290 | |
| Die Height Adjustment(mm) | 80 | |
| Distance Between Slide Center to Machinery Body(mm) | 300 | |
| Size of tabel | F-B(mm) | 600 |
| L-R(mm) | 900 | |
| Thickness(mm) | 95 | |
| Hole of Table | Diameter(mm) | 200 |
| Bottome Size of Slide | F-B(mm) | 270 |
| L-R(mm) | 360 | |
| Hole for Punch Shank | Diameter(mm) | 60 |
| Depth(mm) | 60 | |
| Distance Between Uprights(mm) | 310 | |
| Max. inclination angle(°) | 20° | |
| Motor Power(kw) | 7.5 | |
| Overall Dimesion | F-B(mm) | 1850 |
| L-R(mm) | 1320 | |
| Height(mm) | 2750 | |
| Weight(Approximate)(kg) | 5500 | |
We can supply various specifications of Press Brake, Plate Shearing Machine & Rolling Machine, with or without CNC, according to customers' requirements.
We are also professional manufacturer of Punching Machine, Hydraulic Press, Iron Worker, Ventilation Equipment, Machine Tool Fittings, Bending Machine Dies, Punch Dies & Cutting tools.
All of our products have passed the ISO 9001 Quality System Certificate and CE Certificate.
If u want to know more information about our products, plz feel free to contact us!
Welcome to visit our company!
