Q35-16 Iron Working Machine/universal Ironworker
- Shanghai
- T/T D/P D/A Money Gram Credit Card
You May Like
-
Combined Ironworker/combined Punch and Shear
-
Q35Y-20 Small Ironworker Machine/punch and Shear Machine
-
Q35y-20 Hydraulic Ironworker/steel Punch
-
Q35y Punching and Shearing Machine/ficep Ironworker
-
Q35Y Series Hydraulic Combined Punching Machine/iron Worker Machine
-
Hydraulic Combination of Punching and Shearing/iron Worker
Product Details
| Condition | New | CNC or Not | Normal | |
| Power Source | Mechanical | Place of Origin | Shanghai, China | |
| Brand Name | hvcen | Model Number | Q35-16 | |
| Voltage | 380 | Power(W) | 4 | |
| Weight | 2830 | Dimension(L*W*H) | 1877*1945*725 | |
| Certification | ISO | Warranty | One year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

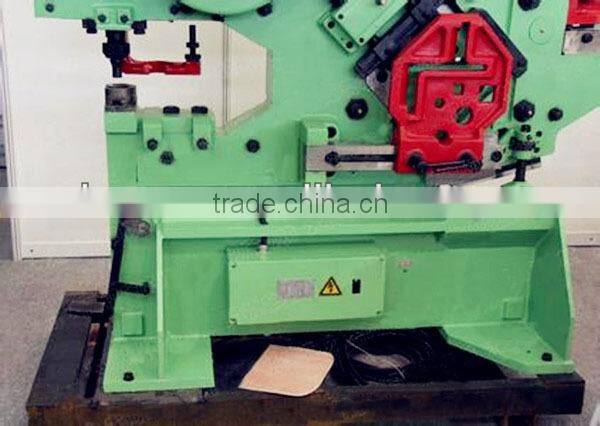

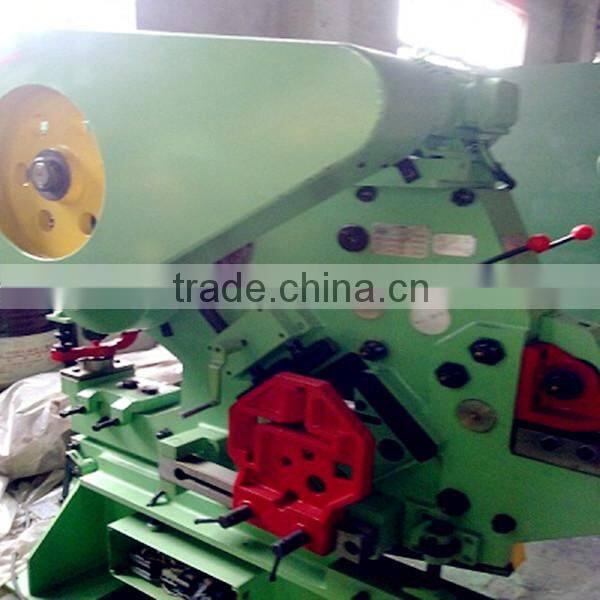

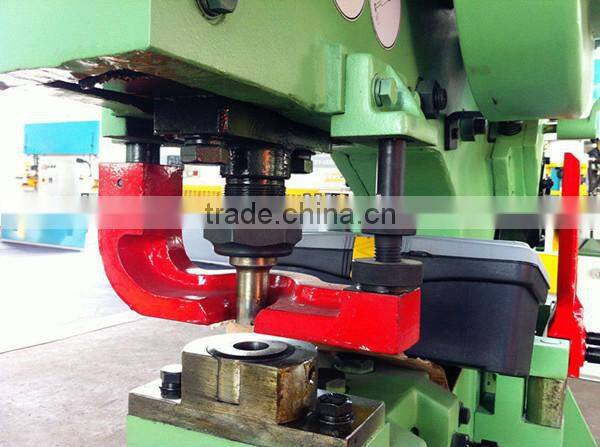

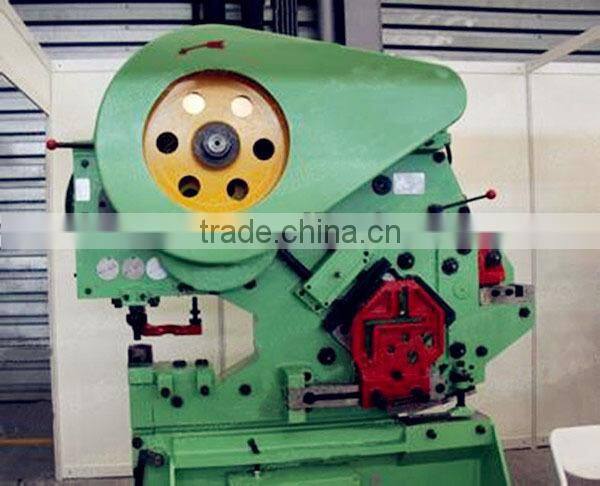

Q35-16 iron working machine/universal ironworker
First: OVERVIEW OF Mechanical Ironworker
(1)FUNCTION: Punching, Angle Steel Shearing, Flat Bar Shearing, Round/Square Bar Shearing, Notching, V-Notching, C-Channel Shearing, I-beam shearing, T-bar shearing, Press Brake, Angle Bending and Pipe Notching.
(2)FEATURE:
Q35-16 hydraulic combined punching & shearing machine adopts mechanical driving, the frame adopts cast steel,
steel welded structure which has sufficient strength and rigidity. The machine is an ideal equipment for cutting
square bar, angle, round bar, channel and joist, as well as punching and notching.
Second:Technical data
Machine Specification | |
Model | Q35-16 |
Pressure (Ton) | 63 |
Max. cutting thickness (mm) | 16 |
Plate strength (N/ mm²) | 450 |
Cutting angle (degree) | 13 |
Shearing size of one stroke (mm) | 20*140 |
Ram stroke | 26 |
Number of strokes (cpm) | 36 |
Throat depth (mm) | 450 |
Punching thickness (mm) | 16 |
Max. Punching diameter (mm) | 28 |
Power of main motor (kw) | 4 |
Overall dimensions L*W*H (mm) | 1877*1945*725 |
Weight of machine (kg) | 2830 |
