4000T Heat Exchanger Plate Punching Hydraulic Press
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
H-frame Hydraulic Press(315ton 500ton 630ton 800ton 1000ton 1250ton 1600ton 2000ton)
-
Auto-matic Brick Hydrualic Press Machine
-
High Quality Power Hydraulic Press/small 300 Ton Hydraulic Press Price
-
4 Column Hydraulic Press For Stainless Steel Kitchen Sink
-
Bringing European Technology Smc Composite Moulding Hydraulic Press/die Spotting Machine
-
Titanium Sheet Hydraulic Press/5000 Ton Hydraulic Press
Product Details
| CNC or Not | CNC | |||
| Power Source | Hydraulic | Place of Origin | Shanghai, China | |
| Brand Name | Hvcen | Model Number | YR27 | |
| Voltage | 380v | Power(W) | 18.5kW-90kW | |
| Weight | 45-125 | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas | Certification | ISO,CQC,CE |
Product Description

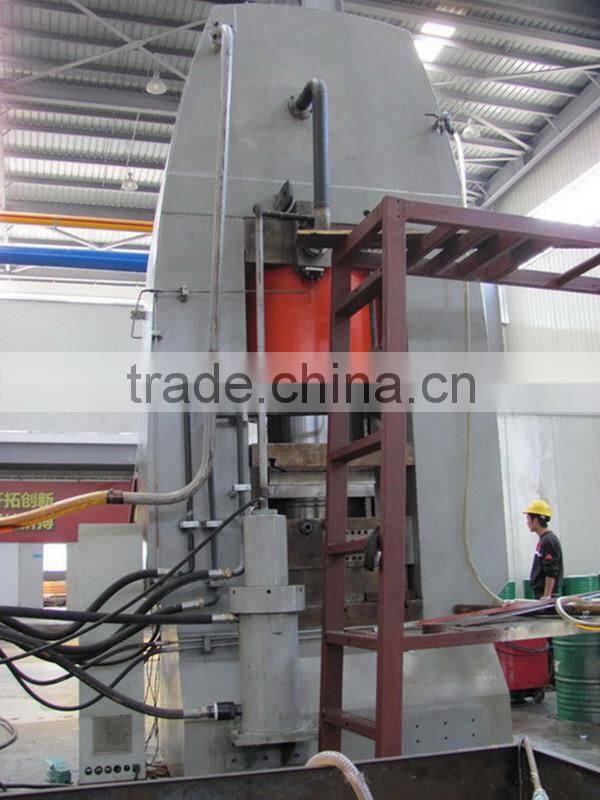

4000T Heat exchanger plate punching hydraulic press
ⅠFeatures
1.For forming large sheet shell such as titanium, stainless steel and heat exchanger plate, etc.

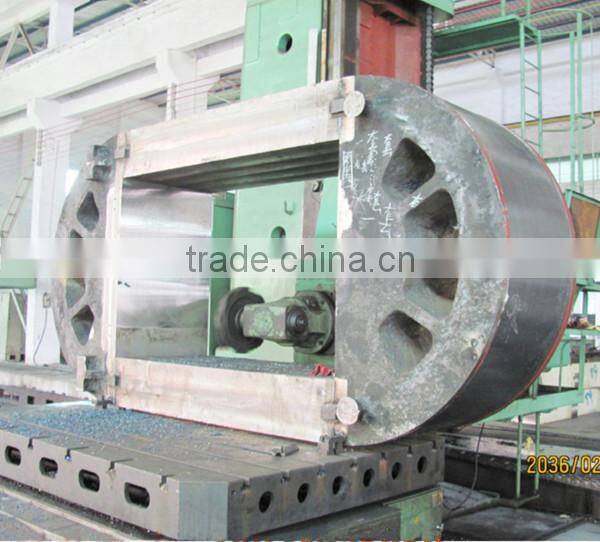

2.The structure of pre-tension wire wound.
3.Reliable operation, small dimension and light weight.
Ⅱ Main configuration
No. | Item | Quantity | Notes |
1 | Oil pump | 1 set | Qidong |
2 | Seal components | 1 set | Hallite |
3 | PLC | 1 set | Mitsubishi |
4 | Electrical components | 1 set | Schneider or OMRON |
5 | A.C. contactor | 1 set | Schneider |
6 | Hydraulic control valve | 1 set | YUKEN |
Ⅲ Technical data
Specification | Unit | Value | |||||||
Nominal force | KN | 30000 | 40000 | 60000 | 70000 | 10000 | 120000 | 150000 | |
Liquid pressure | MPa | 96 | 96 | 95 | 100 | 98 | 106 | 97.5 | |
Slide stroke | mm | 250 | 250 | 250 | 250 | 300 | 300 | 350 | |
Speed of slide
| Quick down | mm/s | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
Work feed | mm/s | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.1-0.3 | 0.1-0.3 | 0.2-0.6 | |
Return | mm/s | 30 | 20 | 20 | 30 | 30 | 30 | 30 | |
Max. shut height | mm | 500 | 500 | 500 | 500 | 600 | 600 | 700 | |
Min. shut height | mm | 250 | 250 | 250 | 250 | 300 | 300 | 350 | |
Effective area of work table | mm | 1600×1000 | 1700×1100 | 2500×1300 | 2500×1300 | 2500×1600 | 2500×1600 | 2600×2200 | |
Motor power | KW | 18.5 | 22 | 45 | 45 | 48.5 | 48.5 | 90 | |
