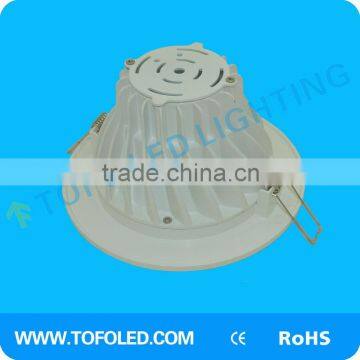

120degree SMD5630 Dimmable LED Down light
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| LED Light Source | Samsung | Warranty(Years) | 2 | |
| Input Voltage(V) | AC85V-260V | Lamp Power(W) | 7 | |
| Lamp Luminous Flux(lm) | 700 | Lamp Luminous Efficiency(lm/w) | 100 | |
| Color Temperature(CCT) | Other, 2700K~7000K | Working Lifetime(Hour) | 50000 | |
| Lamp Body Material | Aluminum Alloy | IP Rating | IP44 | |
| Certification | CCC, CE | Model Number | TF-DLS-7W | |
| Place of Origin | Guangdong, China | Brand Name | TOFO |
Product Description
Specifications
120degree SMD5630 Dimmable LED Down light1. Power: 3~30W
2. Voltage: AC85V-260V
3. CCT: Warm white/pure white/cold white
120degree SMD5630 Dimmable LED Down light
Parameters
1) Wide voltage: AC85-265V
2) Wattage: 3W,5W,7W, 9W, 12W,15W, 18W, 20W, 30W, etc.
3) Light source: SMD5630
4) Lumens: 100LM/W
5) Power Factor: >0.9
6) Color Temperture: 3000-3500K(warm white);4000-4500K(pure white);6000-6500K(cool white)
7) Beam Angle: 120°
8) Housing Material: Aluminum
9) Certification: CE, RoHS,
10) Warranty: 2 years
Features:
1) Super bright 5630 SMD LED chip, high color rendering index, long life span ;
2) Wide voltage and constant current design;
3) Fully aluminum housing, Well-design of thermal structure;
4) Solid State, shockproof save power more than 90% by ordinary bulbs
5) Much more energy-saving;
6) Pro-environment, no UV or other radiation;
7) Instant start, no flashing
8) Lifetime: 50,000hours
9) Certificate: CE,RoHS
| Model | Wattage | Out size (mm) | Cutout Size | Voltage | Light Effiicency | Beam Angle | CCT |
| TF-DLS-3W | 3w | Dia95*H35 | Dia80mm | AC85-265V | 90~100lm/w | 120° | 2700~7000K |
| TF-DLS-5W | 5w | Dia105*H50 | Dia80~90mm | AC85-265V | 90~100lm/w | 120° | 2700~7000K |
| TF-DLS-7W | 7w | Dia115*H60 | Dia80~90mm | AC85-265V | 90~100lm/w | 120° | 2700~7000K |
| TF-DLS-9W | 9w | Dia140*H40 | Dia115mm | AC85-265V | 90~100lm/w | 120° | 2700~7000K |
| TF-DLS-12W | 12w | Dia135*H65 | Dia115mm | AC85-265V | 90~100lm/w | 120° | 2700~7000K |
| TF-DLS-15W | 15w | Dia160*H65 | Dia140mm | AC85-265V | 90~100lm/w | 120° | 2700~7000K |
| TF-DLS-18W | 18w | Dia180*H45 | Dia150mm | AC85-265V | 90~100lm/w | 120° | 2700~7000K |
| TF-DLS-25W | 25w | Dia190*H65 | Dia160mm | AC85-265V | 90~100lm/w | 120° | 2700~7000K |
| TF-DLS-30W | 30w | Dia230*H65 | Dia200mm | AC85-265V | 90~100lm/w | 120° | 2700~7000K |
Application:
1. Home and office lighting
2. Shopping mall lighting
3. Display case lighting
4. Under cabinet lighting
5. Art lighting
6. Board lighting
7. Back lighting, step lighting, light boxes
8. Cabinet and under counter lighting
