All kind and grade strong ndfeb magents
- Shanghai Ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | QC-Strong magnets | |
| Model Number | Customized | Type | Permanent | |
| Composite | NdFeB Magnet | Shape | Other, All kinds of | |
| Application | Industrial Magnet |
Product Description

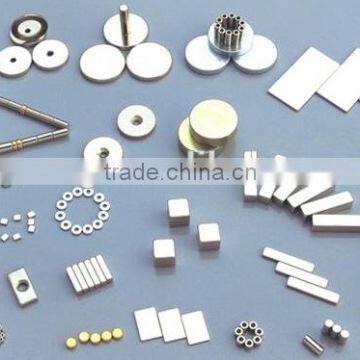

ndfeb magnet
Alnico magnet is widely used in all kinds of sensors and meters, electronics, instruments, medical instruments, teaching.
Alnico can be made into intricate and complex shapes, which is not possible with other magnetic materials. It is high magnetic flux density, resistance to corrosion and excellent temperature stability, the maximum working temperature up to 600. Cast Alnico magnet is widely used in all kinds of sensors and meters, electronics, instruments, medical instruments, teaching, automobile, aviation, martial and other applications.
Specification
Grade |
Br |
Hcb | t(BH)max |
α(Br) |
α(Hcj) |
mT Gs | kA/m Oe | kJ/m3 MGOe | %K | %K | |
LN10 | 600/6000 | 40/500 | 10.00/1.20 | -0.02 | 0.03 |
LNG12 | 700/7000 | 44/550 | 12.00/1.50 | -0.02 | 0.03 |
LNG13 | 680/6800 | 48/600 | 13.00/1.63 | -0.02 | 0.03 |
LNG18 | 900/9000 | 48/600 | 18.00/2.25 | -0.02 | 0.03 |
LNG37 | 1200/12000 | 48/600 | 37.00/4.63 | -0.02 | 0.03 |
LNG40 | 1250/12500 | 48/600 | 40.00/5.00 | -0.02 | 0.03 |
LNG44 | 1250/12500 | 52/650 | 44.00/5.50 | -0.02 | 0.03 |
LNG52 | 1300/13000 | 56/700 | 52.00/6.50 | -0.02 | 0.03 |
LNG56 | 1300/13000 | 58/720 | 56.00/7.00 | -0.02 | 0.03 |
LNG60 | 1330/13300 | 60/750 | 60.00/7.50 | -0.02 | 0.03 |
LNGT18 | 580/5800 | 90/1130 | 18.00/2.25 | -0.02 | 0.03 |
LNGT30 | 1100/11000 | 56/700 | 30.00/3.75 | -0.02 | 0.03 |
LNGT32 | 800/8000 | 100/1250 | 32.00/4.00 | -0.02 | 0.03 |
LNGT38 | 800/8000 | 110/1380 | 38.00/4.75 | -0.02 | 0.03 |
LNGT44 | 850/8500 | 120/1500 | 44.00/5.50 | -0.02 | 0.03 |
LNGT48 | 900/9000 | 120/1500 | 48.00/6.00 | -0.02 | 0.03 |
LNGT60 | 950/9500 | 110/1380 | 60.00/7.50 | -0.02 | 0.03 |
LNGT72 | 1050/10500 | 112/1400 | 72.00/9.00 | -0.02 | 0.03 |
LNGT88 | 1100/11000 | 115/1450 | 88.00/11.00 | -0.02 | 0.03 |
LNGT36J | 700/7000 | 140/1750 | 36.00/4.50 | -0.02 | 0.03 |
LNGT52J | 900/9000 | 140/1750 | 52.00/6.50 | -0.02 | 0.03 |
Grade |
Br |
Hcj |
(BH)max |
Tc |
Tw |
aBr |
mT Gs | kA/m Oe | kJ/m3 MGOe | °C | °C | %/°C | |
FLN8 | 500/5000 | 40/500 | 9/1.13 | 760 | 450 | -0.022 |
FLNG12 | 700/7000 | 48/600 | 12.4/1.55 | 810 | 450 | -0.014 |
FLNGT18 | 600/6000 | 90/1130 | 18/2.20 | 860 | 450 | -0.02 |
FLNG34 | 1200/12000 | 48/600 | 34/4.25 | 890 | 450 | -0.016 |
FLNG37 | 1250/12500 | 48/600 | 37/4.62 | 890 | 450 | -0.016 |
FLNGT28 | 1050/10500 | 60/600 | 28/3.50 | 850 | 450 | -0.02 |
FLNGT38 | 800/8000 | 120/1500 | 38/4.75 | 850 | 450 | -0.02 |
FLNGT42 | 880/8800 | 120/1500 | 42/5.25 | 820 | 450 | -0.02 |
FLNGT33J | 700/7000 | 140/1750 | 33/4.13 | 850 | 450 | -0.025 |
Shapes: Various kinds or according to customers' requests
Grades: AlNiCo2, AlNiCo3, AlNiCo5, AlNiCo5DG, AlNiCo5-7, AlNiCo6, AlNiCo8HC, AlNiCo8, and AlNiCo9 (US standard).
Applications
Widely used in many fields, such as measuring instruments, educational goods, flywheel generators and sensors, stepping motor and relays, flow and AVO meter, odometer of automobile and motorcycle, buzzer of mobile phone and so on
View More Products:
Manufactory Photos
Buyer Guide
Grade, shape & size, tolerance, coating requirement, magnetize direction, quantity are necessary details for a good quotation. Please send us drawings to make things clear if the magnet would be particularly customized.
Trading Conditions
1. Sample:We can provide some samples to test.
2. Delivery date:Around 7~20 days after receipt the 30% payment in advance.
3. Shipment terms:there are two shipping methods, one is by sea, and another one is by express, including DHL, UPS, FedEx, TNT and so on.
4. Packing methods:demagnetize packing box (for Air and Express) and normal packing box for sea
Quality Assurance
To ensure the highest quality, R&D center and quality control center are founded. All of our products are manufactured Certificated CE & ISO9001:2008 quality standards.
Welcome to contact us if any help we can do for magnet requirement!
