Rare Earth Magnet / AlNiCo Magnet

Specifications

 Heteromorphism Alnico magnet

AlNiCo Magnet

Alnico is an acronym referring to a family of iron alloys which in addition to iron are composed primarily of aluminium (Al), nickel (Ni) and cobalt (Co), hence al-ni-co. They also include copper, and sometimes titanium. Alnico alloys are ferromagnetic, with a high coercivity and are used to make permanent magnets.

Alnico is high magnetic flux density, resistance to corrosion and excellent temperature stability, the maximum working temperature up to 600.

Shape

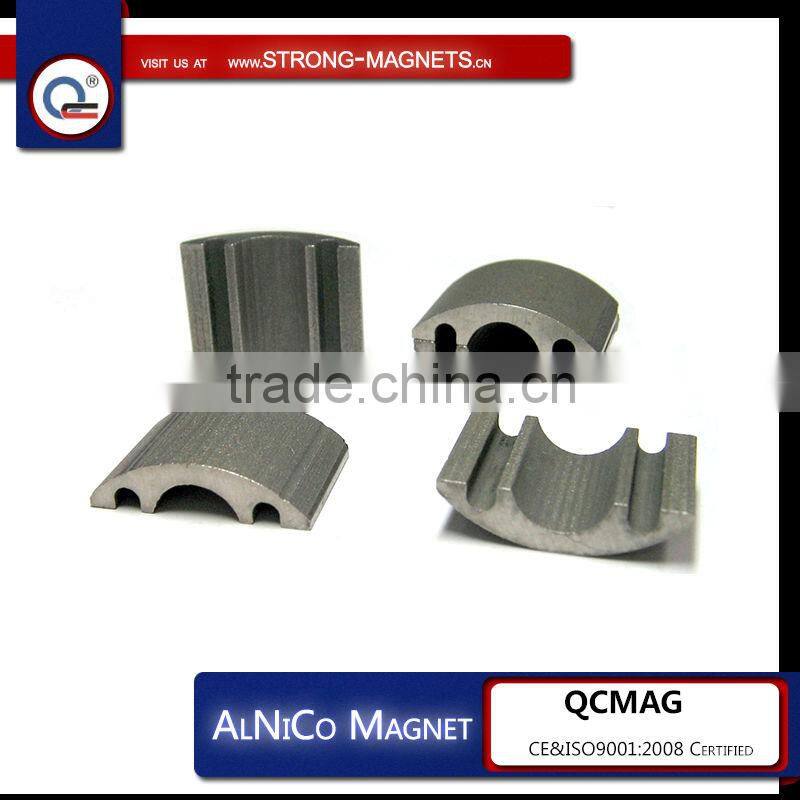

Alnico can be made into intricate and complex shapes, which is not possible with other magnetic materials.

Commonly used shapes include Horseshoe, Disc, Cylinder, Block, Ring, Countersunk, Segment, Trapezoid, Irregular shapes and more.

Customized Design (Design proper magnets for clients specific requirements)

Applications

Widely used in industrial and consumer applications where strong permanent magnets are needed; examples are electric motors, electric guitar pickups, microphones, sensors, loudspeakers, traveling-wave tubes, and cow magnets.

Cast Alnico magnet is widely used in all kinds of sensors and meters, electronics, instruments, medical instruments, teaching, automobile, aviation, martial and other applications

Properties Of AINiCo Magnets

Remanence (Br), which measures the strength of the magnetic field;

Coercivity (Hci), the material's resistance to becoming demagnetized;

Energy product (BHmax), the density of magnetic energy

View More Products

- NdFeB Magnet

- AlNiCo Magnet

- Ferrite Magnet

- SmCo Magnet

- Magnet Device

- Magnet Overview

Quality Assurance

All of our products are manufactured based on the ISO9001:2008 quality standards.

For Quotation:

Appreciate if you could write to us with the following information for quotation

1. Product name

2. Shape (If possible, send us the magnet drawings for particular customized shape)

3. Size and tolerance

4. Grade

5. Coating

6. Order quantity
