Ceramic Terminal Block
- Shenzhen
 - T/T Credit Card

You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | JH | |
| Model Number | JH-EC-xxx | Number of Contacts | 1 - 10 | |
| Conductor Size | Other | Type | Plug-in |
Inside package: polybag with air bubble; Outer package: exported carton
Product Description
Specifications
1.Made from alumina or steatite2.Fine electrical performance
3.Resis high temperature
4.Anti-chemical
5.Can be custom made
ceramic terminal block
1.95% alumina or steatite ceramic.heat compression molding,the alumina has been to improved insulation and mechanical strength.
2.The ceramics have no cracks,no burrs,no pinholes,no gaps,and no impurities, surface is smooth, dye absorption is passed.
3.Linear dimension tolerance ≤ ± 0.05mm, diameter tolerance ≤ ± 0.1mm, hole size distortion ≤ 0.05mm, circumference deformation size ≤ 0.1mm.
4.Insulation Resistance ≥ 100MΩ (have been checked by megohm in DC500V).
5.Dielectric Strength: AC2000V/50HZ/1min no breakdown phenomenon.
6.Linear expansion coefficient is slight,and less than 7.0 × 10-6mm /°C, and good for thermal shock performance.
7.Sintering temperature is 1350 °C, the use of a temperature not lower than 1100 °C, good corrosion resistance.
Application:
Widely used as holder of lamp.

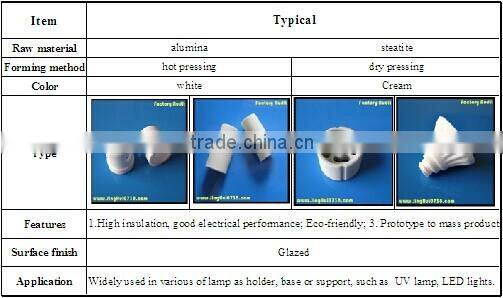

Brife description for typical ceramic end cap/end fitting/ holder of lamp
Manufacturing processings flow chart and factory tour
1.Air bubble with PE foam as inner package; 2. Export carton as outside package

Regular shipping methods
1.Intl' express; 2. Air freight; 3. Sea freight
Company Profile
                    Jinghui Industry Ltd. is a professional manufacturer specializing in the R&D, production of all kinds of alumina (AL2O3) ceramic, steatite ceramics,zirconia ceramic part. Founded in 2005 with factory in Xinhua of Hunan province, Our factory takes an area of 5000 square meters, and more than 100 experienced and skillful employees. We have won a lot of trust and good reputation from many famous customers around the world with our high quality products and professional services.Our factory mainly produces Al2O3 ceramic, steatite ceramic, zirconia ceramic series of ceramic products, It famous of these characters of resistance to high temperature, corrosion, abrasion and pressure. And they are widely used in the field of electronic, automobile, electric appliances, textile machinery, soldering, lighting, chemical industry, gas igniters, hydro-heating etc. In the past few years, with our innovative & good quality products, competitive price and excellent customer service, we have supplied our products to more than 30 countries all over the world such as Europe, North & south America, Asia, Australia etc. Based on our Xinhua factory, In order to serve to our customer better,we set up sales office at Shenzhen of Guangdong & HongKong as well. With the company policy: Unity, Credible, Innovation , we continuously take in advanced technology at home and abroad, and strictly implement ISO9001:2000 quality management system in production, making many kind of stable and reliable products. We sincerely welcome all of the domestic and oversea customers to come to establish business with us, creating win-win business under reliable quality, competitive price and flexible delivery support.
