Home > Products > high voltage diode > Leadsun High Voltage Diode 2CLG15KV/25mA High frequency high current

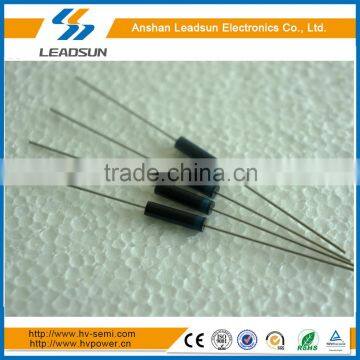

Leadsun High Voltage Diode 2CLG15KV/25mA High frequency high current

FOB Price

Negotiable / Piece

1000 Pieces(Min.Order)

Port Dalian
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Leadsun	Model Number	2CLG15KV/25mA
Type	Rectifier Diode	Package Type	Through Hole
Max. Forward Voltage	23V	Max. Reverse Voltage	15KV
Max. Forward Current	0.5A	Max. Reverse Current	25.0A

Product Description

2CLG15KV/25mA high voltage diodes adopt the designing of high reliable multiple mesa structure and silicon tube, molded in small volume and compact packing surface by epoxy resin.

Features:
Fast recovery
Low forward on pressure, low leakage current
Protection of avalanche breakdown
Antiimpacting of discharging of CRT high voltage surge current
Axia lead diode, could weld on tube pin
Epoxy resin molded and can resist corrosion on its surface
Application:
Television and FBT display
Cathode ion generator, laser power supply
Neon lamp power supply, voltage multiplier assembly
DC high voltage generator assembly

■MAX.RATED VALUE

Item	Sign	Rating	Unit	Condition
Repetitive Peak Voltage	VRRM	15	KV
Storage Temperature	Tstg	-40~120	℃
Average Forward Rectifier Current	Io	25.0	mA
Surge Current	IFSM	0.5	A

■Electric Characteristic

Item	Symbol	Rating	Unit	Conditions
Nomal Temperature Reverse Current	IR1	2.0	μA	VR=VRRM
High Temperature Reverse Current	IR2	20.0	μA	VR=VRRM Tamb=100℃
Reverse Breakdown Voltage	VF	30	V	IF=10mA
Reverse Recovery Time	Trr	0.1	nS	IF=2mA IR=4mA

Related Products

Packing & Shipping

Packing: 200 pcs in one bag, 25 bags in one carton

Certifications

Patent	No.
Industrial waste gas treatment of high frequency high voltage power supply	ZL 2013 2 0269785.3
EHV adjustable ventilation load device	ZL 2012 2 0096537.9
High frequency high power pulse laser power supply	ZL 2012 2 0099007.x
Combined PCB high-voltage load device	ZL 2012 2 0098995.6
High frequency voltage multiplier assembly	ZL 2012 2 0099008.4
Dry type high frequency high voltage transformer	ZL 2012 2 0098417.2
Power resistive load test device	ZL 2012 20096569.9
High power high voltage plug	ZL 2012 2 2299106.8

Campony & Services

·Leadsun focus on OEM,ODM and custom service, we have experienced engineers to supply the technical supports

including design,operation, adjustment and failure analysis.
·Leadsun has latest standard product assembly series, including worldwide popular product series, and special cusomized

series. There are thousands of types and models for your choosing
·Leadsun technical center record every order and product characteristics; sales department focus on market development

tendency, will supply you full service.
·leadsun take quality as foundation of success, we feel honored to supply customer requried products and customer success.

We keep focusing on product innovation and development to stay ahead in the industry.
·Year 2014, Leadsun will move to new industrial cener,new platform, new hope,dream starts here.
