Home > Products > 2RB Single Stage Blowers > siemens industrial turbine blower 3KW

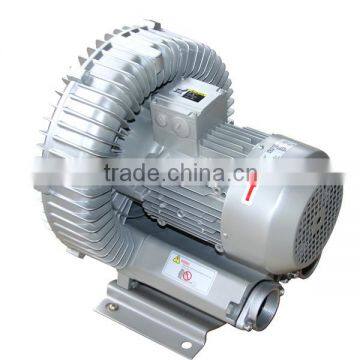

siemens industrial turbine blower 3KW
- 10000 Set / Sets per Month
- any port in china
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | GZLing | |
| Model Number | 2RB610-7AH26 | Application | Industrial Blower | |
| Type | Turbo Blower | Pressure | High Pressure | |
| Power Source | Electric Blower | Rated Power | 3KW(50HZ)/3.45KW(60HZ) | |
| Rated Voltage | 200-720V |
Product Description
Please kindly inform the voltage request,all are available.
Electric connection:star-connection,Y-connection
Performance curves:for siemens industrial turbine blower 3KW
(A273 for 2RB610-7AH26 50HZ,A274 for 2RB610-7AH26 60HZ)
The performance curves are based on air at a temperature of 150C and an atmospheric pressure of 1013 mbar with a tolerance of +/-10%.
The total pressure differences are valid for suction and ambient temperatures up to 250C.
For other conditions please confer with us.
Each G-2RB type can be applied both as vacuum pump and compressor in continuous operation over the total stated performance curve range.The motors are available as standard for the input voltage range for 50 and 60HZ and for protection category IP55 as well as approbated for UL and CSA.
Drawing:for siemens industrial turbine blower 3KW
Explsion-view:for siemens industrial turbine blower 3KW
Ex stock for use world-wide;for siemens industrial turbine blower 3KW
The G-series side channel blower feature voltage rang motors for 50HZ and 60HZ in protection class IP55(insulation class F) are UL,CE,CCC approved.this makes them the ideal solution for wide use.they can be used without any modifications or tests in Europe,America and Asia.They are mostly available ex stock.they are available for your requirements anytime.
G-series operating principle:for siemens industrial turbine blower 3KW
The impellers in the G-series machines are mounted directly on the motor shaft for non-contact compression entirely without friction.Maximum operational reliability,even at high differential pressures.is ensured by the arrangement of the bearings outside the compression chamber.
The gas it taken in through the inlet 1 .As it enters the side channel 2,the rotating impeller 3 imparts velocity to the gas in the direction of rotation.Centrifugal force in the impeller blades accelerates the gas outward and the pressure increase.Every rotation adds kinetic energy.resulting in the further increase of the pressure along the side channel.The side channel narrow at the rotor,sweeping the gas off the impeller blades and dis-charging it through the outlet silencer 4 where it exits the side channel blower.
Feature:for siemens industrial turbine blower 3KW
1.Beautiful surface,Easy installation,Low noise level
2. No vibration, and therefore complete dynamic stability
3. Pulsation-free discharge,free maintenance
4. Higher pressure ratio,100% oil free
5. High temperature-resistant bearings with longer grease life
6. Suitable for environmental protection
7.Wide frequency motor with IP55,CALSS H
8.Passed ISO,CE,CCC,UL ROHS test
9.Air capacity:from 40m3/h to 2500m3/h
10.Pressure:from 60mbar to 780mbar
100% copper with enough power and excellent quality via import germany auto coil winding machine.
die casting aluminium alloy with non-bubbles best materical and accurate dynamic balance.
imported swden SKF bearing and Jpan NSK bearing with high temperature resisitant.
Application:for siemens industrial turbine blower 3KW
1.Pneumatic conveying systems
2.Lifting and holding of parts by vacuum
3.Packing machines
4.Aeration of sewage-treatment plants
5.Filling of bags/bottles/hoppers
6.Soil remediation
7.Thermoforming
8.Sorting/enveloping of letters
9.Food-processing
10.Laser printers
11.Dental suction equipments
12.Paper processing
13.Printers/copiers
14.Textile machines
15.Aeration of fish ponds
16.Gas analysis
17.Swimming pool equipment/whirlpools
Accessories:for siemens industrial turbine blower 3KW
Customized type:for siemens industrial turbine blower 3KW
Teflone and ATEX type
Anti-explosion type
Color-customized type
Package:for siemens industrial turbine blower 3KW
Shipping:for siemens industrial turbine blower 3KW
Profile:for siemens industrial turbine blower 3KW
Build in 2001,has 108000squarmeter,start researching and manufacturing the air blower,side channel blower,vacuum blower,ring blower,regenerative blower.Set in jiangsu province,near to shanghai seaport or ningbo seaport.
Our company has powerful research technology,advanced die-casting aluminum alloy equipment,auto copper wire machine,printing production line.Introduced international best technology,has excellent engineer team.
Our company imported more than 80sets advanced production equipment from German,Japan etc,has more than 20 production lines,workers assemble more than 1000sets per day.
There's enough stock for regular items to suit some client's urgent demand.Using strong carton and stick pallet to pack the blower,avoid the damage in shipping way.
Certificate:for siemens industrial turbine blower 3KW
1)Q:what is the minimum order?
A: Yes, our company mainly deals with wholesale deals,but if you insist buying one set,or you just need one set,we would be very likely to make the MOQ as 1 set for you though, except for some particularly small size digital photo frames,like 7 inch.
2)Q:what payment methods your company accept?
A:We accept most often payment methods,but mainly accept T/T,L/C,Western Union,Paypal and Money Gram.
3)Q:How long is the warranty time for your products?
A:Our officially promised warranty time is 18 months after delivery at best.
4)Q:I haven't done business with you guys before,how can I trust your company?
A:Our company has been in for 5,almost 6 years,which is longer than most of our fellow suppliers,we've been golden suppliers for years.what's more,we've got quite a lot authority certificates,for example,CE, RoHS, ISO9001, UL Alibaba onsite check certificate. I hope those above will be persuasive enough.Our Trade Assurance Limit is US $150,000, and it is still going up.
5)Q:what's the shipment terms and delivery time of your company?
A:Well, they depends on the quantity of your order.As you know ,many regular items are in stock.but mostly ,the shipment time is 3-8 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggest Express and Air freight, when Air freight and Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.
6)Q:Do you give any discount?
A:I'll surely try my best to help you get those by the best price and good service at the same time.
7)Q:I would like to ask you if it's possible to customized the product?
A:We hope you know that our company perfectly support customized service.Inform us the request and working situation,will give you best advice.
Contact:for siemens industrial turbine blower 3KW
Contact Us
- Wuxi Gezhiling Mechanical & Electrical Co., Ltd.
- Contact nameQueenie Shen Chat Now
- Phone86-0510-82091151
- AddressNo. 8, Jingxi North Road, Yixing
