Home > Products > V Bank Medium / HEPA Filter > Plastic Frame HEPA Combind V Shape Filter H13 H14 EN779

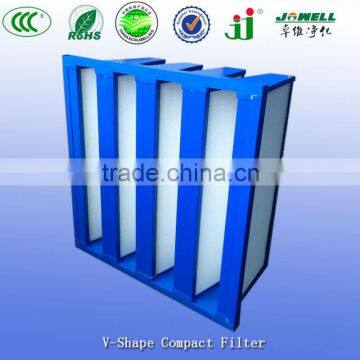

Plastic Frame HEPA Combind V Shape Filter H13 H14 EN779
- 200 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
-
90%-99.99% replacement hepa V shape filter for clean equipment
-
Aluminum fiberglass paper media air filters alkaline filter
-
HVAC high efficiency V shape air Intake filter hepa filter
-
Industrial clean room V-bank mini pleated hepa air filter
-
H10-H13 V -bank Efficiency Combined Hepa Air Filter
-
China factory price high efficiency HV combined filter
Product Details
| Condition | New | Efficiency | 95%~99.99% | |
| Construction | Other, V-Bank Filter | Filtration Grade | Hepa Filter | |
| Medium Material | Fiberglass | Porosity | 0.3 um | |
| Place of Origin | Guangdong, China | Brand Name | Jowell | |
| Model Number | FV HV | Dimension(L*W*H) | 595*595*292MM | |
| Weight | 6KGS | Certification | ISO 9001, ISO14001 | |
| Warranty | one year guarantee | After-sales Service Provided | Overseas third-party support available |
Product Description
Plastic Frame HEPA Combind V Shape Filter H13 H14 EN779
Combined HEPA Filter Description:
Compact filters are used in hospitals, airports, museums and industrial applications where medium and high quality airflow is required. These filters are used as primary and/or main filters to prevent toxic gas, aerosol and general dust pollution. They are especially suited for for handling large airflow volumes and achieve long service life times due to their large dust storage capacity. By their production different materials are used like water resistant glass fiber filter paper pleated and mounted in V-form frame.
Combind HEPA Filter Features:
Large filtration area
Tested according to EN 1822
Extremely stable welded casing
High airflow
Long functional life
High dust holding capacity
Each filter includes a label noting tested efficiency,pressure drop,rated airflow.
Combind HEPA Filter Application:
For filtration in aerial engineering plants of all kinds:
Medical facilities
Pharmaceuticals
Semiconductor facilities
Food processing plants.
Prefiltration,e.g.for HEPA filters
Model | Dimensions (mm) W×H×D | Rated air flow M3/h | Initial resistance pa |
Efficiency EN779 | HEPA Filter Material | |||
Media | Separator | Sealant | Frame | |||||
FV | 595×595×295 | 3600 | ≤110 | 99.99% | Fiberglass | Thermosol | Polyurethane Rubber PU | Polypropylene ethylene |
295x595×295 | 1800 | ≤110 | ||||||
Model | Dimensions (mm) W×H×D | Rated air flow M3/h | Initial resistance pa | Efficiency EN 1822 | HEPA Filter Material | |||
Media | Separator | Sealant | Frame | |||||
HV | 595x595x295 | 3600 | ≤110 |
99.99%
| Fiberglass | Thermosol | Polyurethane Rubber PU | Galvanized steel or Aluminum optional |
295x595x295 | 1800 | ≤110 | ||||||
We also produce:
Dongguan Zhuowei (Jowell) Purification Technology Co., Ltd. is a high-tech enterprise which specializes in design, manufacture, sale, installation and inspection of air HEPA filters and purification equipments. We have been increasingly gathering experience of air filter industry since the foundation in 2002, and adopted advanced technology, machineries and materials to produce primary, medium and air HEPA filters and purification equipments. At present, we are enjoying a high reputation among air purification field.
