Hospital Gel Seal Mini Pleat HEPA Filter for Pharmaceutical Clean Room

FOB Price

US$ 10 - 150 / Piece

10 Pieces(Min. Order)

Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Efficiency	99.99% @ 0.3um
Construction	Panel Filter	Filtration Grade	Hepa Filter
Medium Material	Fiberglass	Porosity	0.3um
Place of Origin	Guangdong, China	Brand Name	Jowell
Model Number	HP	Dimension(LWH)	61061069mm
Weight	2 Kg	Certification	ISO9001, ISO14001 ,CE
Warranty	One Year	After-sales Service Provided	Overseas third-party support available

Product Description

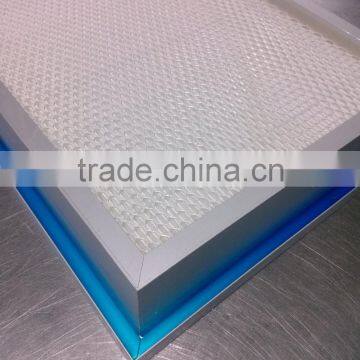

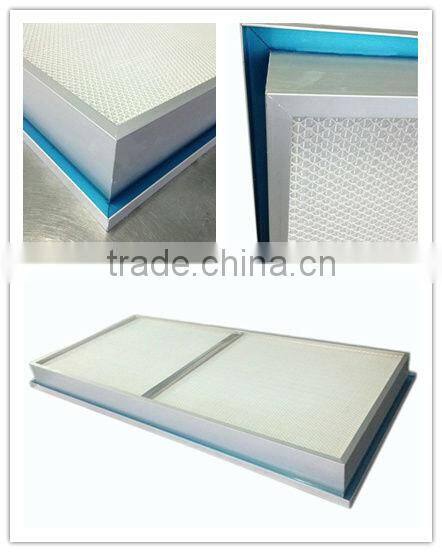

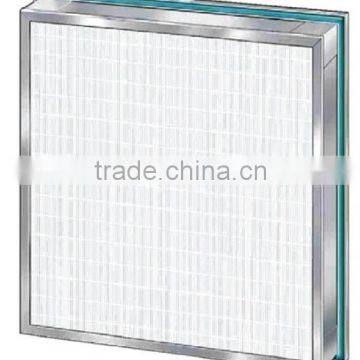

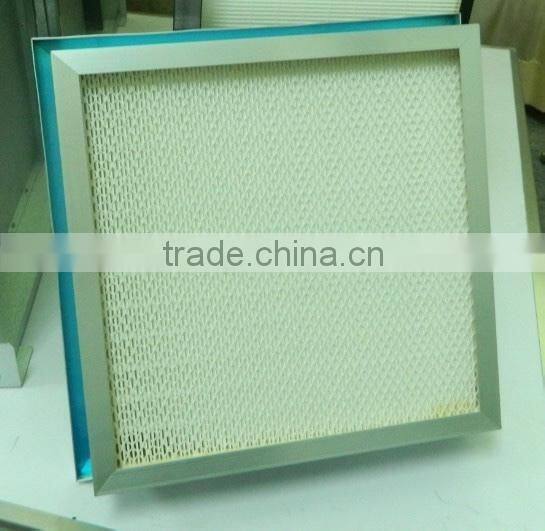

Hospital Gel Seal Mini Pleat HEPA Filter for Pharmaceutical Clean Room

Gel Seal Mini Pleat HEPA Filter Description:

Gel Seal HEPA Filter is designed for use in Ceiling Hepa box in phrameceutical and hospital
industry. Available in a wide variety of depth 70;75;90;96m. Mini pleat provides optimal performance in variable air volume system.

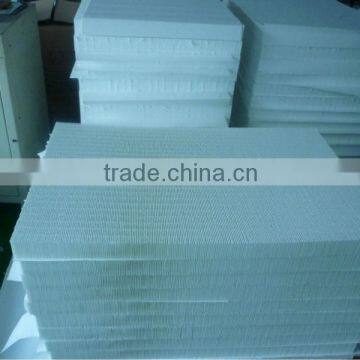

The filters are made from water resistant,fire retardant, micro fiber glass media.Designed to accommodate higher airflow volume, these filters are used for laminar flow bench,bio safety cabinets, dispensing booths and as terminal filters incleanroom applications.

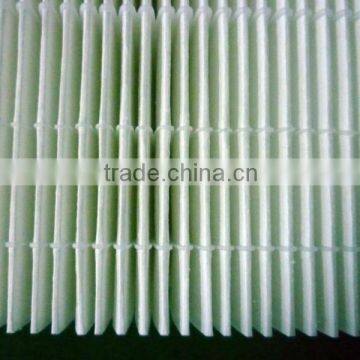

These mini-pleat filters have much lower resistance, have a lifespan of between one and two years, provide
lower energy costs.

Gel Seal Mini Pleat Filter Specification:

Model No.	Dimensions W×H×D(mm)	Rated Air Flow (m³/h)	Media area (m2)	Holding dust (g)	Initial Pressure Drop (pa)	Final Pressure Drop (pa)	Efficiency
JW-HP01	305×305×50	200	1.8	100	≤200 pa	400~600	H13~H14
JW-HP02	484×484×50	500	4.6	300	≤200 pa	400~600	H13~H14
JW-HP03	610×610×50	800	7.5	450	≤200 pa	400~600	H13~H14
JW-HP04	915×610×50	1200	11.2	700	≤200 pa	400~600	H13~H14
JW-HP05	1220×610×50	1600	14.9	900	≤200 pa	400~600	H13~H14
JW-HP06	305×305×69	260	2.5	150	≤200 pa	400~600	H13~H14
JW-HP07	484×484×69	700	6.6	400	≤200 pa	400~600	H13~H14
JW-HP08	610×610×69	1000	10.7	650	≤200 pa	400~600	H13~H14
JW-HP09	915×610×69	1600	16.0	950	≤200 pa	400~600	H13~H14
JW-HP10	1220×610×69	2100	21.3	1000	≤200 pa	400~600	H13~H14
JW-HP11	610×610×90	1500	14.9	900	≤200 pa	400~600	H13~H14
JW-HP12	915×610×90	2000	22.3	1200	≤200 pa	400~600	H13~H14
JW-HP13	1220×610×90	2800	29.8	1800	≤200 pa	400~600	H13~H14
