High Quality Operating Room Mini Pleat HEPA Filter H3 H14
- Shenzhen
- T/T Credit Card
You May Like
-
Hospital Gel Seal Mini Pleat HEPA Filter for Pharmaceutical Clean Room
-
High Cost Performance Air Filter Manufacturer Dongguan China
-
FB Medium Efficiency Mini Pleat Panel Filter
-
FB Medium Efficiency Fine Cardboard Panel Filter With PP Glass Fiber Pack
-
Camfil Air Filter Replacement Factory Supplier
-
AAF Air Filter Replacement Factory Supplier
Product Details
| Condition | New | Efficiency | 99.99% @ 0.3um | |
| Construction | Panel Filter | Filtration Grade | Hepa Filter | |
| Medium Material | Fiberglass | Porosity | 0.3um | |
| Place of Origin | Guangdong, China | Brand Name | Jowell | |
| Model Number | HP | Dimension(L*W*H) | 610*610*69mm | |
| Weight | 2 Kg | Certification | ISO9001, ISO14001 ,CE | |
| Warranty | One Year | After-sales Service Provided | Overseas third-party support available |
Product Description

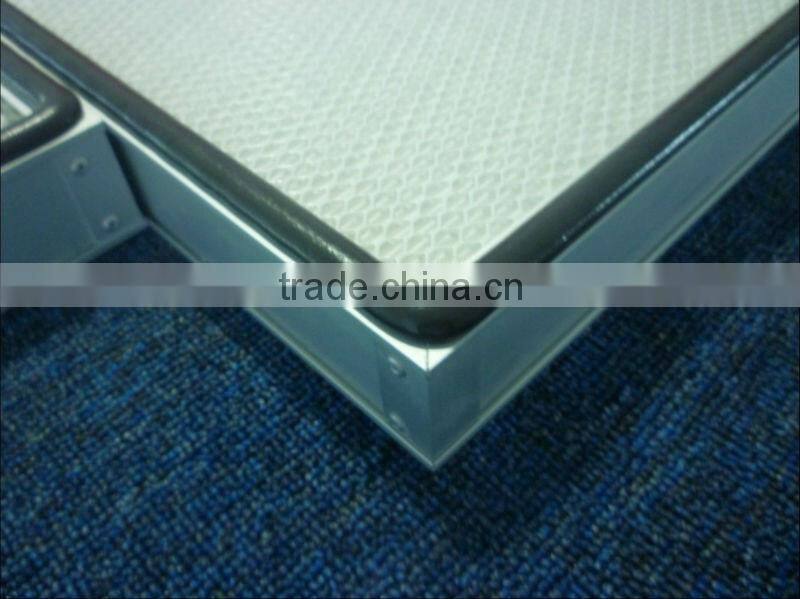

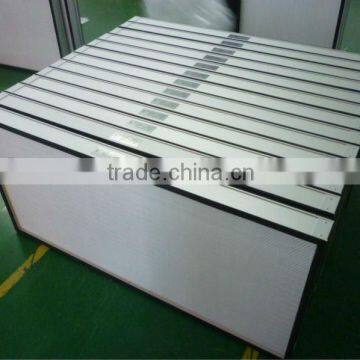

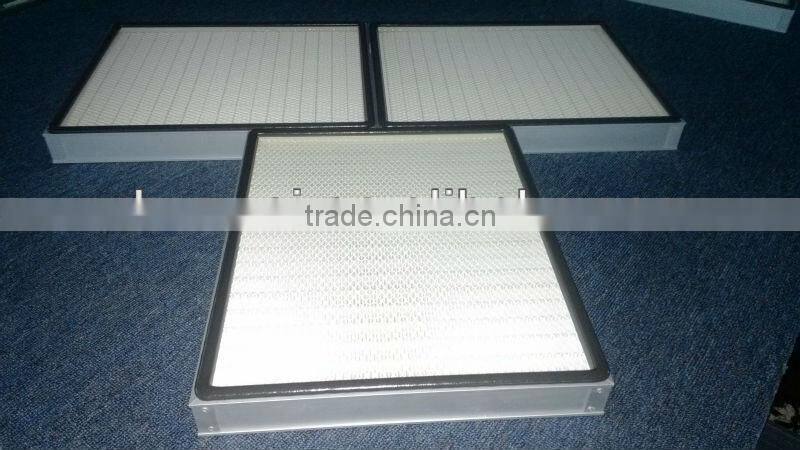

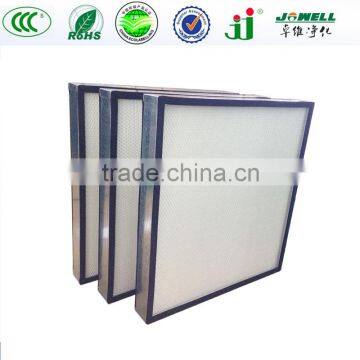

High Quality Operating Room Mini Pleat HEPA Filter H3 H14
Mini Pleat HEPA Filter H13 H14 Description:
Mini Pleated HEPA Filter is designed for use in cleanroom ceiling system and equipment where high efficiency
filtration is required. Available in a wide variety of standard sizes, our Mini pleat provides optimal performance in variable air volume system.The filters are made from water resistant,fire retardant, micro fiber glass media. Designed to accommodate higher airflow volume, these filters are used for laminar flow bench,bio safety cabinets, dispensing booths and as terminal filters in cleanroom applications. These mini-pleat filters have much lower resistance, have a lifespan of between one and two years, provide lower energy costs.

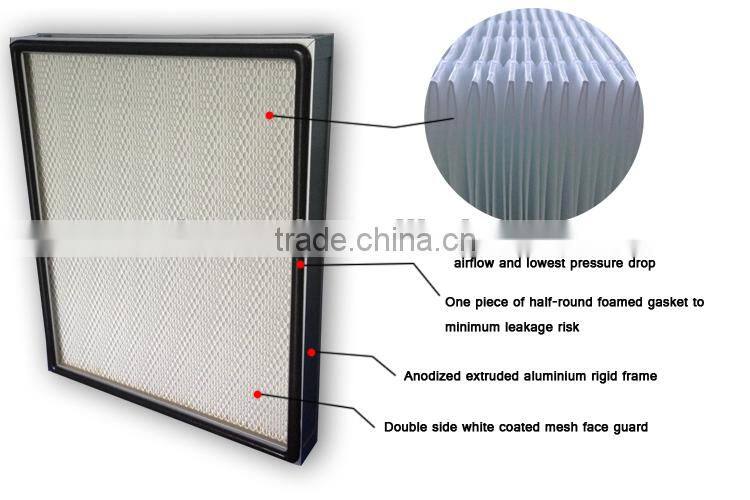

Mini Pleat HEPA Filter H13 H14 Features:
Filter Classes H10-H14( EN 1822)
Tested for leak proof
Powder-coated protective grid on both sides
Continuous foamed-in-place seal on one side
Each filter includes a label noting tested efficiency,pressure drop,rated airflow.
Mini Pleat HEPA Filter H13 H14 Application:
Laboratories
Chemical and pharmaceutical plants
Hospitals
Dust/fume removal hoods at workplace
Food processing industry
Electronics service center
Semiconductor
Mini Pleat HEPA Filter H13 H14 Specification:
| Mini Pleated HEPA Air Filter | |||||||
| Size(mm) | Thickness (mm) | Rated air flow (m³/h) | Flow speed(m/s) | Final resistance (Pa) | |||
| W*H | H13 | H14 | U15 | U16 | |||
| 570*570 | 50 | 367 | 0.35 | 108 | 115 | 135 | 148 |
| 1170*570 | 50 | 775 | 0.35 | 108 | 115 | 135 | 148 |
| 610*305 | 50 | 200 | 0.35 | 108 | 115 | 135 | 148 |
| 610*610 | 50 | 423 | 0.35 | 108 | 115 | 135 | 148 |
| 672*610 | 50 | 535 | 0.35 | 108 | 115 | 135 | 148 |
| 915*610 | 50 | 646 | 0.35 | 108 | 115 | 135 | 148 |
| 1170*870 | 50 | 1206 | 0.35 | 108 | 115 | 135 | 148 |
| 1170*1170 | 50 | 1637 | 0.35 | 108 | 115 | 135 | 148 |
| 570*570 | 70 | 472 | 0.45 | 100 | 110 | 125 | 140 |
| 1170*570 | 70 | 1000 | 0.45 | 100 | 110 | 125 | 140 |
| 610*305 | 70 | 258 | 0.45 | 100 | 110 | 125 | 140 |
| 610*610 | 70 | 545 | 0.45 | 100 | 110 | 125 | 140 |
| 762*610 | 70 | 687 | 0.45 | 100 | 110 | 125 | 140 |
| 915*610 | 70 | 831 | 0.45 | 100 | 110 | 125 | 140 |
| 1170*870 | 70 | 1550 | 0.45 | 100 | 110 | 125 | 140 |
| 1170*1170 | 70 | 2100 | 0.45 | 100 | 110 | 125 | 140 |
| 570*570 | 90 | 472 | 0.45 | 85 | 91 | 103 | 115 |
| 1170*570 | 90 | 1000 | 0.45 | 85 | 91 | 103 | 115 |
| 610*305 | 90 | 258 | 0.45 | 85 | 91 | 103 | 115 |
| 610*610 | 90 | 545 | 0.45 | 85 | 91 | 103 | 115 |
| 762*610 | 90 | 687 | 0.45 | 85 | 91 | 103 | 115 |
| 915*610 | 90 | 831 | 0.45 | 85 | 91 | 103 | 115 |
| 1170*670 | 90 | 1550 | 0.45 | 85 | 91 | 103 | 115 |
| 1170*1170 | 90 | 2100 | 0.45 | 85 | 91 | 103 | 115 |
| 570*570 | 110 | 472 | 0.45 | 70 | 74 | 80 | 94 |
| 1170*570 | 110 | 1000 | 0.45 | 70 | 74 | 80 | 94 |
| 610*305 | 110 | 258 | 0.45 | 70 | 74 | 80 | 94 |
| 610*610 | 110 | 545 | 0.45 | 70 | 74 | 80 | 94 |
| 762*610 | 110 | 687 | 0.45 | 70 | 74 | 80 | 94 |
| 915*610 | 110 | 831 | 0.45 | 70 | 74 | 80 | 94 |
| 1170*670 | 110 | 1550 | 0.45 | 70 | 74 | 80 | 94 |
| 1170*1170 | 110 | 2100 | 0.45 | 70 | 74 | 80 | 9 |
Custom-made version available on request.
