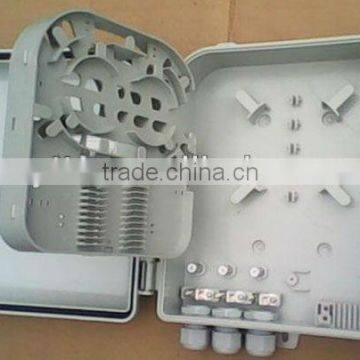

No-adaptors Fiber Distribution Box(outdoor use)

Specifications

Specifications

Fiber optic distribution box
The capacity is much bigger in the limited space
Water proof design with IP-55 protection level

Outdoor plastic optical Distribution box User manual

1.Prescription

Grandway optical distribution box is mainly used in FTTH project of residential block , which provides a highly density wall-mounting solution of optical distribution.It can be used for the splicing of drop cable , fiber and patch cable .

2.Features

v Maded in plastic make it more light ,so shipping costs can be saved.

v Plastic is cheap than mild steel.

v The capacity is much bigger in the limited space.

v The appearance is more beautiful.

v Water proof design with IP-55 protection level.

v Integrated with splice cassette and cable management tools.

v Fiber bend radius more than 40mm.

v Suitable for the fusion splicing and mechanical splice.

v UV protection and anti-aging material

v Burglar-proof padlock

3.Technical parameters

3.1 Working environment

Working Temp : -20°C~+60°C ;

Storage Temp : -25°C~+55°C

Relative humidity : ≤93%(+40°C)

Atmosphere pressure : 76kpa~106kpa(0m~5000m)

5 .Accessories

Standard accessories : Splice cassette and cable management tools , installation nuts and bolts , heat shrinking tube , rubber seal ,hose clamp.

Optional accessories : Adaptor , Pigtail
