wonderful/ professional supplier metal sheet bending machine/you deserved it

 Product Description

 KEY WORDS: SHAPING MACHINE, PRESS BRAKE, BENDING MACHINE,

DISCRIPTIONS about cnc press brake, hydraulic press brake, Plate Press Brake Machine

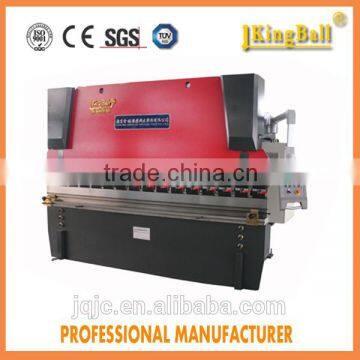

Hydraulic CNC plate Press brake

1. Mechanical stop and torsion bar to maintain synchronization and high precision.

2. The machine uses Delem CNC system, and imported linear transducer, pressure proportional valve and servo motor.

3. Ram stroke(Y) and backgauge(X) are automatically controlled by computer.

4. Backgauge adopts ball-bearing screw and rolling guide, enjoying very high repeat positioning accuracy

Hydraulic system about cnc press brake, hydraulic press brake, Plate Press Brake Machine

1. The hydraulic system can fastly fall down, slowly fall down, control the press according the working rate, fastly get up and down, and abruptly stop.

2. With REXEOH hydraulic system can reach synchronization.

3. The longitudinal plunger pump can endure the high pressure, and it is noiseless, made in shanghai.

4. The airproof is made by Japanese NOK, good performance, long-lived.

5. The machine can unremitting work, and the hydraulic is steady.

Mould Fast Clamp of the cnc press brake, hydraulic press brake, Plate Press Brake Machine

Electric control system about cnc press brake, hydraulic press brake, Plate Press Brake Machine

1. The electrical component and material meet the international standard, safe and long-lived.

2. The moving foot operated on-off can cut power urgently.

3. The other control components are all big brand.

4. The machine is with AC380V, and the control loop is with AC220V.

5. The electrical's main circuit can avoid short circuit and over loading.

6. The operated buttons are on the machine's button table. The elect

7. The stop button of pump is the main button. It is off then the whole machine is stop.

8. The machine fits the inching control and crash stop buttonrical switch, indicator lights are in the electrical case.

Specification&Model

Packaging& Shipping

Our Service

we can make the bending machine according to your need,

TIPS:

we also have cutting machines, rolling machine, shearing machings and other machines,

If you want to know more about us, please contact us.We are available any time. Thanks

Company Information

 Nanjing Jinqiu CNC Machine Tool Co., Ltd.

 Address: Shiqiu Industrial Park, Nanjing, Jiangsu, China

 Tel: +86-25-52491558

 Fax: 86-25-57263198

 Website:

 Certification: SGS& ISO9001:2000 &CE&TUV

Our mainly products are plate Press Brake, Shearing  Machine,

Rolling Machine, Press Machine, Mould,Blade, etc. Contact us freely!

Certification

Press brake controller:

Controller System: E10

1,X axis and Y axis position display resolution :0.1mm or 0.001 inch

2,Hold time setting
3,One side positioning indication
4,Software limitation
5,Power-down memorization

Controller System: DA-41 features

1.    Bright LCD display

2.    Beam stop control

3.    Backgauge control

4.    Angle programming

5.    Tool programming

6.    Retract function

7.    Up to 100 programs

8. Up to 25 bends per program

Controller System: E200D features

Controller System: E21 CNC system

1.Backgauge and block control

2.Control for general AC motors, frequency inverter

3.Intelligent positioning

4.Stock counter

5.Holding/decompression time setting

6.Program memory of up to 40 programs

7.Up to 25 steps per program

8.One side positioning

9.Retract function

10.One key backup/restore of parameters

11.Chinese /English

Controller System: E200 CNC Controller:

1. has servo motor, can control X and Y axis.
2. Program memory of up to 40 programs, up to 25 steps per progarm,
3. backage has ball bearing lead screw and linear guide rall.
4. Clamp is mould fast clamp.
5. backage is screw normal guide rall.

Controller System: DA-52S (DELEM):

DA-52s features

1.    Quick, one page programming

2.    Hotkey navigation

3.    7” VGA colour TFT

4.    Up to 4 axes (Y1, Y2, and 2 auxiliary axes)

5.    Crowning control

6.    Tool/material/product library

7.    USB, peripheral interfacing

8.    Advanced Y-axis control algorithms for closed loop  as well as open loop valves

DA-66T(DELEM):

Features:

1.    2D graphical touch screen programming mode

2.    3D visualisation in simulation and production

3.    17" high resolution colour TFT

       Full Windows application suite

4.    Delem Modusys compatibility (module scalability and adaptivity)

5.    USB, peripheral interfacing

6.    User specific application support within the controllers multitasking environment

7.    Sensor bending & correction interface
