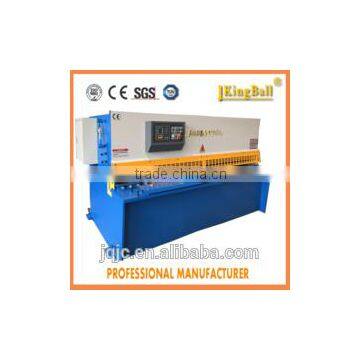

QC12Y-4X4000 New hydraulic metal cutting shearing machine, low price

Hydraulic shearing machine    QC12Y-4X4000

1. CE, ISO, SGS Certification

2. BOSCH Hydraulic system

3. High performance

4. High quality with good price

DESCRIPTIONS  about CNC hydraulic shearing machine

1. The machine employs hydraulically-driven swing beam, the steel plate welded structure, and accumulator -based pullback cylinder with steady and reliable operation.

2. Stepless control for the stroke; The gap between up blade and down blade is manually adjusted by handle for high uniformity; Protection fence and the electric interlock to ensure the operation safety.

3. The closed loop control system that consists of CNC system and position coder features fast response speed, high precision, and exceptional stability and can ensure the accuracy of displacement of back gauge. Moreover, CNC system has the accessory functions of compensation and automatic check.

Hydraulic system of CNC hydraulic shearing machine

1. BOSCH hydraulic control system, more reliable and easy for maintenance. The hydraulic system consists of motor, oil pump and valve groups.

2. Every complete working cycle can be achieved through the control of hydraulic valve. The remote adjustment valve can adjust the working pressure at the right side of the wall board.

3. All seals use Japan NOK good quality and high performance

4. Overload overflow protection is outfitted to hydraulic system, which can assure no leakage, and the oil level can be read or seen directly

Electric control system of CNC hydraulic shearing machine

1. Electrical components are imported or from Sino-foreign joint Venture, in accordance with international standards, reliable safety, long life, good anti-interference ability, a radiation unit is fitted in electrical cabinet.

2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate.

3. Emergency stops on machine and foot switch for safety and Fence like body guard is standard or light

Controller

Shearing machine controller: E21

E21 features

1. Backgauge control.

2. BUS mode control servo system.

3. Stroke length Limitation.

4. Double programmable digital output.

5. Program memory of up to 40 programs up to 25

6. One side positioning.

7. Retract function.

8. Mm/Inch.

9. Chinese/English.

Shearing machine controller: DAC310

DAC310 features

1. Backgauge control

2. Bright LCD display, 275x 48 pixels

3. Gap or Angle control

4. Stroke length limitation

5. Actual and programmed position visualisation

6. Stock counter

7. Up to 100 working steps programmable

8. Panel based housing

9. Servo, frequency inverter drive, two-speed AC motor control

Shearing machine controller: DAC360

DAC360 features

1. Panel based housing

2. Bright LCD screen

3. Backgauge control

4. Retract function

5. Cutting angle control

6. Cutting gap control

7. Stroke length limitation

8. Manual movement of axes

9. Force control

Nanjing Jinqiu CNC Machine Tool Co., Ltd.

Address: Shiqiu Industrial Park, Nanjing, Jiangsu, China

Tel: +86-25-52491558

Fax: 86-25-57263198

Website:

Certification: SGS& ISO9001:2000 &CE&TUV

we can make the bending machine according to your need,

TIPS:

we also have cutting machines, rolling machine, shearing machings and other machines,

If you want to know more about us, please contact us.We are available any time. Thanks.

 Customer Manager: Mandy Zhao

Mobile Phone: 0086-15151868028

Skype: kingball-mandy

Trade Manager: cn1517296209eviz ()

We also have the press brakes, rolling machines and other machines.

If you want to know more about us,please contact us.Thanks.
