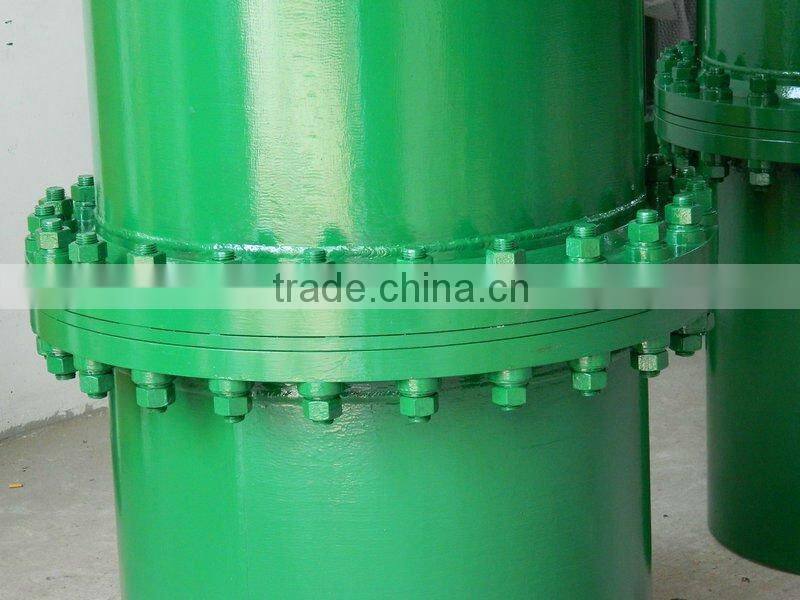

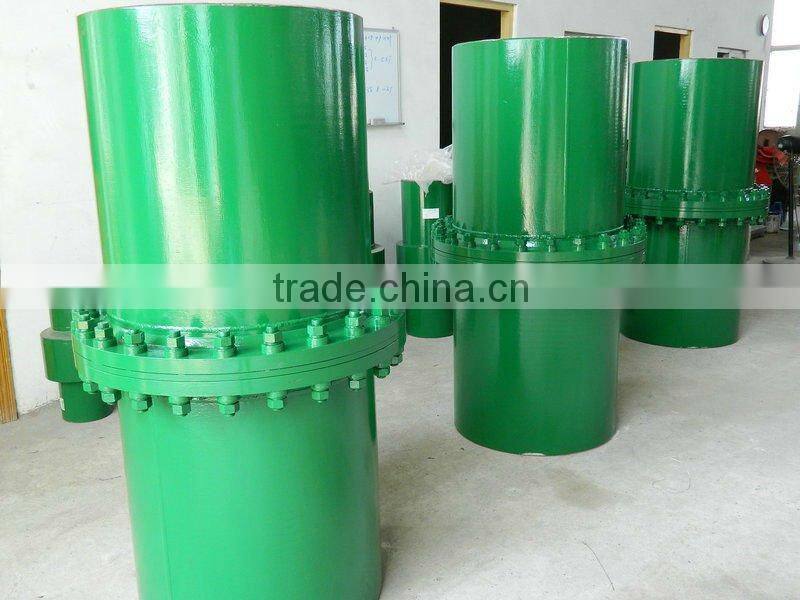

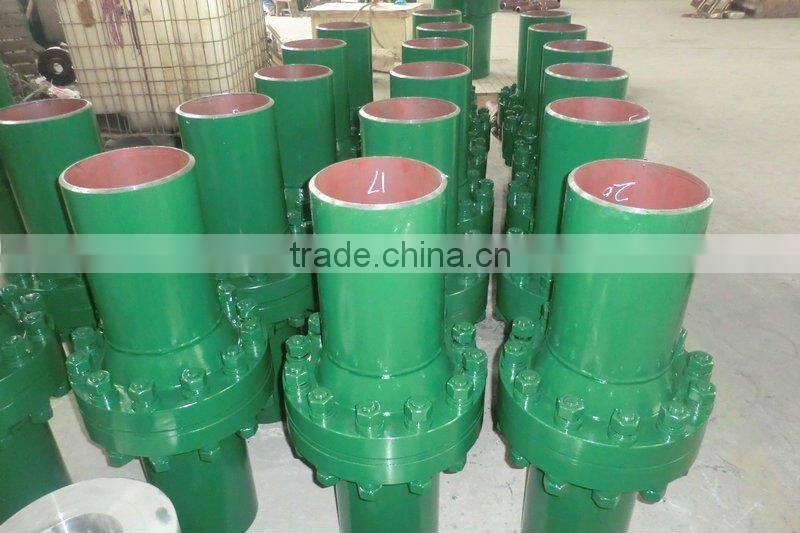

Insulated Flange
- FOBshanghai
- D/P D/A
You May Like
Product Details
| Size | 1''-60'' | Material | Stainless Steel | |
| Standard | Other, ANSI BS DIN GB JIS JPI ASME | Place of Origin | Shanghai, China | |
| Model Number | 1''-60'' | Brand Name | Changhao |
Product Description
FEATURES:
1With electrical insulation properties of electro-corrosion pipes; 2With durable and reliable performance at a designed temperature and pressure for pipeline mediums, sufficient strength and good air-proof ability; 3With rational structure, easy assembly disassembly and replacement.
MAINLY SPECIFICATION:
1Suitable for natural gas, city gas, LPG and gently oil; 2Medium temperature:-10~ + 60; 3Ambient temperature:-20~ + 60; 4Insulating resistance:≥500KΩ; 5Breakdown voltage:≥3KV; 6Pressure range:PN0.6MPa, PN1.0MPa, PN1.6MPa, PN2.5MPa 7Specs: DN50-DN1200 (2"~48")
|
