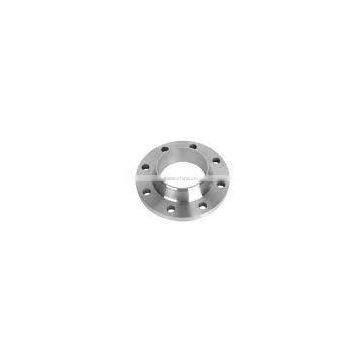

WN Flange

Specifications

Flanges:

(1)   Flanges Type:  Plate-type Flat Welding Flange, Butt Welding Ring Loose  Flange, Slip on Neck Flange, Welding Neck Flange, Long Welding Neck Flange, Blind Flange, Socket Welding Flange, Thread Flange, Screwed Flange, Lap Joint Flange

(2)   Flanges Standards:  ANSI Flanges, BS flanges, DIN flanges, EN1092-1 Flanges

(3)   Material:   Carbon steel flanges ASTM A105, ASTM A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2
ASTM A694 F42, F46, F48, F50, F52, F56, F60, F65, F70

          Stainless steel flanges ASTM A182 F304/304L, F316/316L, F316H, F310, F321
F44 (UNS S31254)
          Alloy Steel flanges ASTM A182 F1, F5a, F9, F11, F12, F22, F91

(4)  Connection Type:  Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue & Groove, Small Tongue & Groove

(5)  Size: 1/2"_24 (DN15_DN600)

(6)  Wall Thickness/Pressure Reating:  Sch10 , Sch20 , Sch30 , Sch STD , Sch40 , Sch60 , Sch XS , Sch80, Sch100, Sch120, Sch140 Sch160 , Sch XXS, Class 150, 300, 600, 900, 1500, 2000, 3000, 6000, 9000 LBS

(7)  Standard: ANSI, ASME, DIN, BS, EN, JIS, GOST
                    ASME: ANSI B16.9, ANSI B16.28, MSS SP75
                    DIN: DIN2605/2615JIS: JIS B2313
                     EN: EN10253-1/2, EN10253-2


 (8)  Usage: it is used in petroleum/ chemical industry/power/ship building/paper making/metallurgy/ construction /water supply and sewage work

(9)   Notes: The specifications can be designed and satisfied for customers special requirements
(10)  Flange Packaging: Veneer plywood cases or as per your request
