Factory Price New chain cast iron fire grate boiler
- 800 Set / Sets per Month
- Qingdao Tianjin Shanghai Port
- T/T
You May Like
-
Top Quality New chain grate cast iron drain boiler
-
China Factory Price active chain grate cast iron boiler grate
-
Golden Supplier Newchain grate boiler with traveling grate
-
Competitive price chain boiler with coal furnace grates
-
Customized Low price boiler with chain grate
-
China Low price boiler vice chain grate
Product Details
| Place of Origin | Shandong, China | Brand Name | Enn | |
| Type | Other, boiler parts, chain belt, small scale, large scale, cross girder, reciprocating |
Product Description

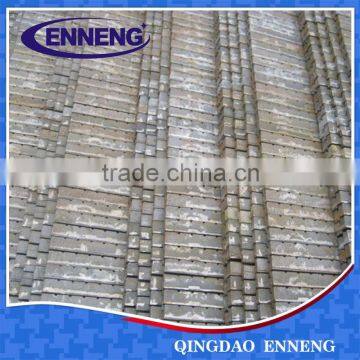

Factory Price New chain cast iron fire grate boiler
We offer boiler parts for owner's existing boiler reform, including grate, superheater, airpreheater, economizer, water wall, etc. And also, our products have found a good sale in Indonesia, Thailand and Laos.
Boiler Grate including:
1. 1-20t/h Chain Belt Grate
2. 2-40t/h Small Scale Grate
3. 10-50t/h Large Scale Grate
4. 2-80t/h Reciprocating Step Grate
5. 10-120t/h Crossgirder Grate

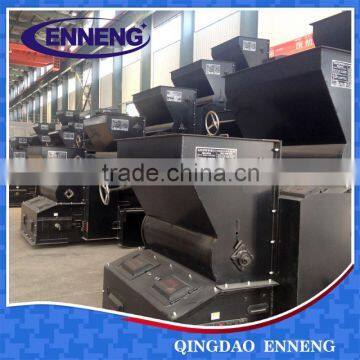

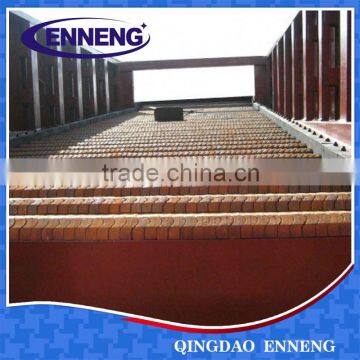

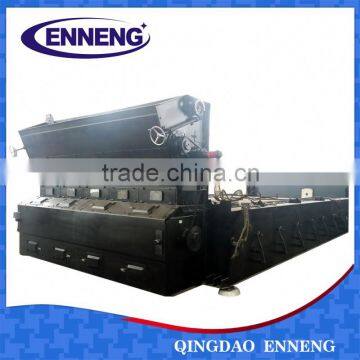

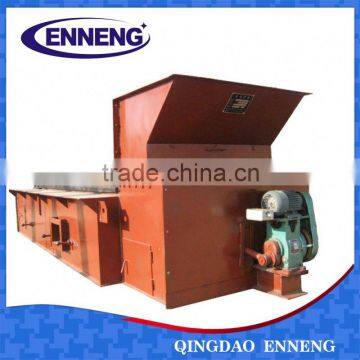

Chain Belt Grate
Boiler Capacity t/h | Grate effective area
| Grate surface height
| Axle base | Effective width | Width of plate lateral sides
| Length of shaft (to grate center) | Shaft center height
| Diameter of shaft end
| Wind chamber quantity |
1t/h | 1.43 | 543 | 3420 | 660 | 740 | 600 | 396 | φ60 | 3 |
1t/h | 2.76 | 540 | 2850 | 980 | 1070 | 805 | 355 | φ60 | 3 |
2t/h | 3.68 | 540 | 3630 | 1050 | 1140 | 780 | 395 | φ60 | 4 |
2t/h | 3.57 | 570 | 3760 | 1020 | 1110 | 785 | 425 | φ60 | 4 |
3t/h | 4.78 | 628 | 4250 | 1290 | 1380 | 1050 | 436 | φ60 | 5 |
4t/h | 5.43 | 610 | 4510 | 1400 | 1500 | 970 | 465 | φ60 | 5 |
4t/h | 5.66 | 540 | 4880 | 1310 | 1410 | 965 | 400 | φ60 | 5 |
5t/h | 6.52 | 628 | 4650 | 1620 | 1710 | 1160 | 436 | φ80 | 5 |
6t/h | 7.67 | 622 | 5000 | 1650 | 1740 | 1220 | 475 | φ80 | 5 |
6t/h | 7.89 | 630 | 5400 | 1525 | 1635 | 1120 | 440 | φ80 | 5 |
7t/h | 8.33 | 735 | 5214 | 1780 | 1880 | 1398 | 495 | φ80 | 5 |
8t/h | 10.45 | 670 | 5550 | 1960 | 2050 | 1235 | 425 | φ80 | 5 |
8t/h | 11.63 | 905 | 5100 | 2050 | 2150 | 1370 | 670 | φ80 | 4 |
10t/h | 12.12 | 885 | 6330 | 2000 | 2100 | 1350 | 650 | φ80 | 5 |
10t/h | 10.94 | 997 | 6330 | 2350 | 2450 | 1630 | 760 | φ100 | 5 |
15t/h | 15.87 | 990 | 7500 | 2700 | 2790 | 1950 | 600 | φ110 | 6 |
20t/h | 21.85 | 990 | 8150 | 3250 | 3340 | 2100 | 650 | φ130 | 7 |
Chain Belt Grate Drawing
1. How to get a boiler price list?
Pls tell us below to confirm a boiler model and offer the right boiler price:
1) What is the application of the boiler?
2) What is the capacity per hour do you need?
3) Which fuel do you want to use for your boiler, coal, biomass, gas & oil, or others?
4) What is the pressure of your boiler?
Any more questions,please sent your inquiry below
