Golden Supplier New vertical boiler

Golden Supplier New vertical boiler

Palm empty fruit bunches:

Palm empty fruit bunches( after palm fruit treshing) with diameter  ø 300-600mm, the center rod  ø 40-100mm,55% water content, contain a variety of minerals including chlorides, also with low ash fusion point. According to these characteristics, we have adopted joint grate (the reciprocating grate plus chain grate) combustion boiler. The water content of the empty fruit bunches can be reduced to less than 25% after the dehydration machine. The center rod is wholly smashed and sent to the fuel bunker through conveyor without further crushing, and then forced into the feeding outlet of boiler by feeders. The fuel is pre-heated on the reciprocating grate and then fully combusted on the chain grate after drying out.

Palm Shell:

Palm shell size is massive, relatively dry, hard and brittle with dark brown color, The calorific value is 18395.1kj/kg by testing the sample. Basically no residue in the combustion and few ashes, the shell can be fully burn. Circulating fluidized bed boiler or chain boiler will be good choices.

Palm Kernel Meal:

Palm kernel meal is small brown granular with water content around 8%. The heat value is around 14519.4kj/kg and the ash fusion point is 1050°C , which is suitable for circulating fluidized bed boiler combustion. If the fuel is mixed by several kinds of plam wastes, we will select the most suitable type of boiler according to each fuel characteristics and the mixing proportion.

Palm Waste Boiler Biomass Boiler Palm Waste Boiler Biomass Boiler

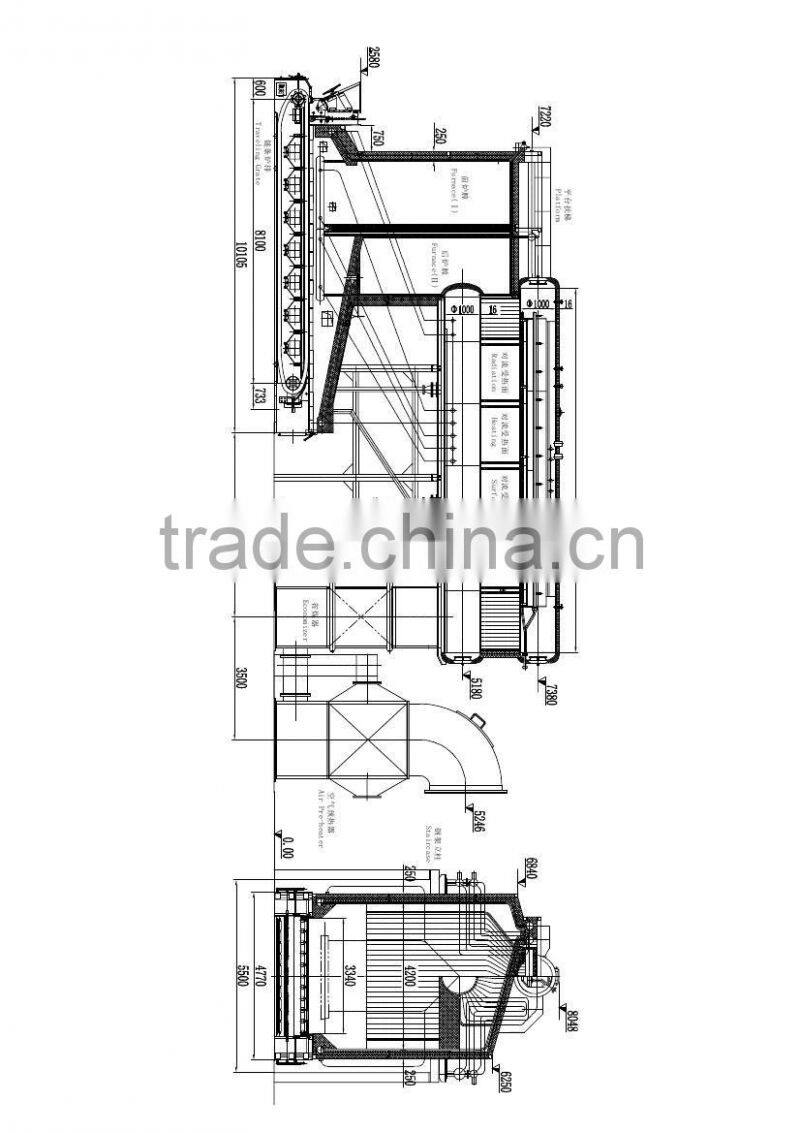

Palm Waste Boiler Drawing

Palm Kernel Meal Test

1. How to get a boiler price list?

Pls tell us below to confirm a boiler model and offer the right boiler price:

1) What is the application of the boiler?

2) What is the capacity per hour do you need?

3) Which fuel do you want to use for your boiler, coal, biomass, gas & oil, or others?

4) What is the pressure of your boiler?

Any more questions,please sent your inquiry below
