China Rice Husk Chinese Boiler for Sale

Alibaba China rice husk chinese boiler for sale

For the rice husk boiler, we have unique design concept for fuel supply system, combustion system, air distribution system and steam water system. We have been improving and perfecting our product for these years. Our rice husk boiler is very popular in China. And we have got a very good reputation from various customers.

1) Double drum (water and fire tube boiler), heating area is greatly increased, furnace area is increased, so boiler evaporation capacity is ensured.
2) For some of the reasonable design, it produces Sio from ash after combustion. Under very high temperature, rice husk ash high-speed circulation will abrase the tube wall heavily.  So it has high requirement for the arrangement of tube and air duct section. Only reasonable design, can guarantee the boiler rated output and get the problem of tube rupture. Our water fire tube boiler has reasonable design and reasonable air distribution system, so the problem of tube rupture is solved. For example, there are two rice husk boilers used in Jiangxi province, China, which runs 19 years, and they are running very well;

3) Air distribution system is the key part in boiler design. It can influence the boiler output, complete combustion and fuel saving, and dust.

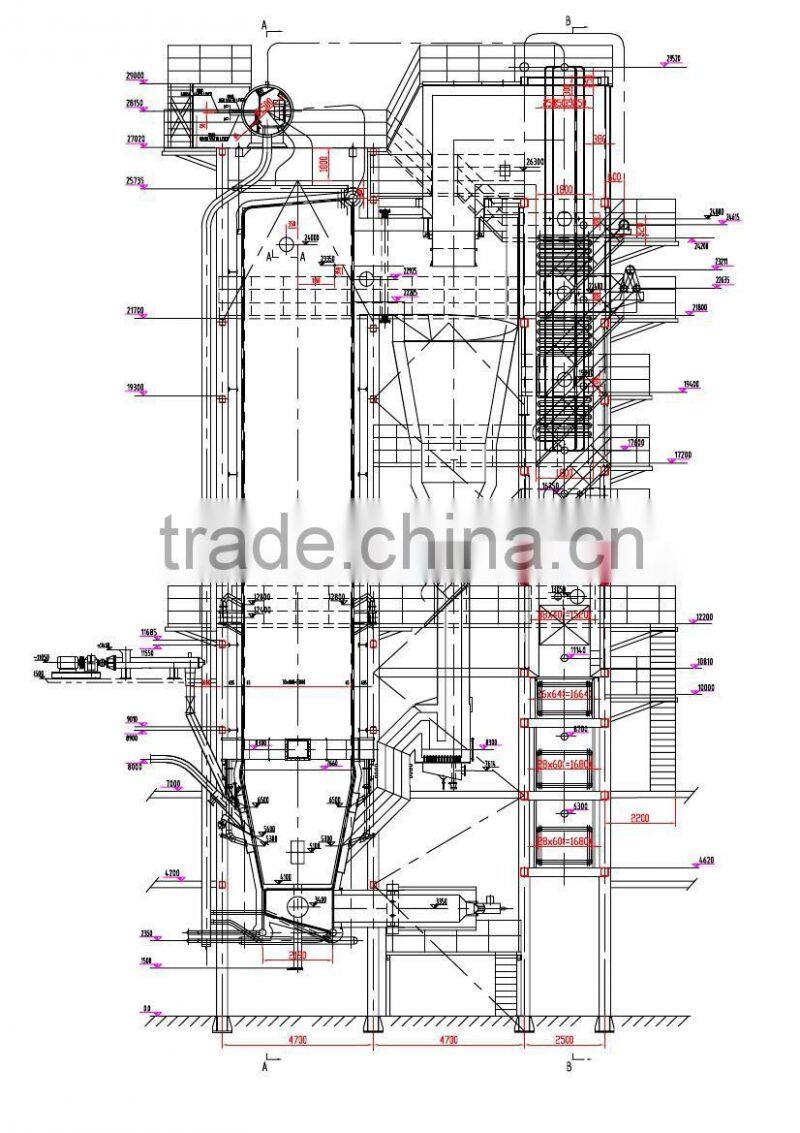

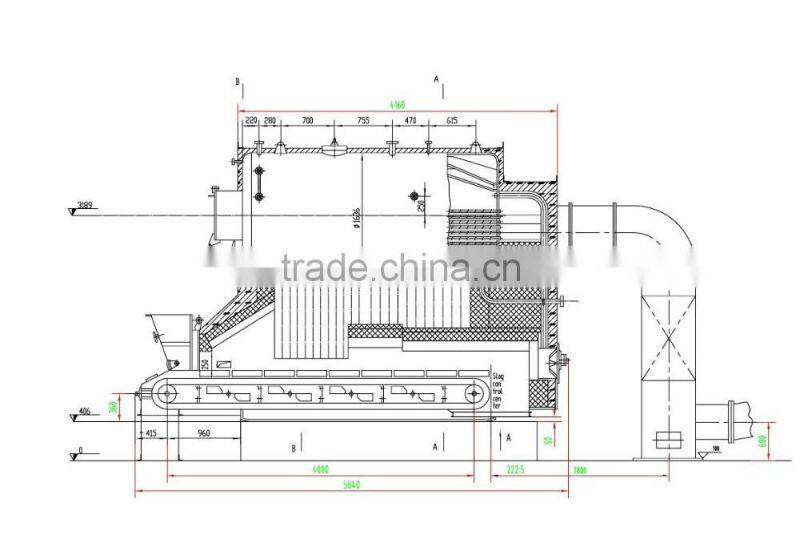

Rice Husk Boiler Drawing

Rice husk feature and combustion feature

1. Rice husk chemical analysis and feature

*Due to the difference of paddy and location, the content is different. The SiO content is  85~96.5% in ash, CaO as 0.11~0.25%, Kalia as 0.24~1%, NAO as 0.4%, MgO as 0.09~

1.11%, alumina as 1.72%, ferric oxide as 0.24%, phosphorus pentoxide as 0.04~0.5%,potassium carbonate and potassium bicarbonate as0.5~1%, with slight manganese dioxide.

2. Rice husk physicochemical characteristics during combustion

1) The volatile is separated out very fast, which is good for combustion. But sufficient oxygen should be provided, otherwise incomplete combustion can caused.

2) The volatile combustion and coke combustion have independent stages. It doesn’t like volatile separating out in coal, coke is burned at the same time.

3) In later stage of combustion, only coke is burned and the combustion speed is very slow. When the coke content is about 20%, the combustion is almost stopped. Thus proves rice husk is hard to burn completely. And fluidized bed rice husk boiler is hard to reach high efficiency as well.

4)  Feature of clustering and coking, there is no clustering during the temperature of 900°C~1050°C. The ash fusion point is over 1500°C.

3. Rice husk combustion feature

1. How to get a boiler price list?

Pls tell us below to confirm a boiler model and offer the right boiler price:

1) What is the application of the boiler?

2) What is the capacity per hour do you need?

3) Which fuel do you want to use for your boiler, coal, biomass, gas & oil, or others?

4) What is the pressure of your boiler?

Any more questions,please sent your inquiry below
