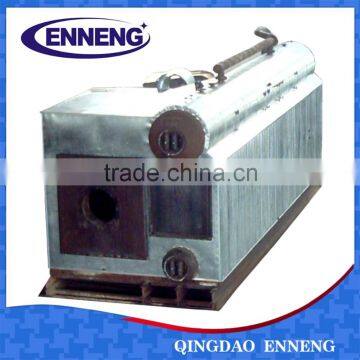

High Quality SZS Gas Fired Boiler
- 800 Set / Sets per Month
- T/T
You May Like
Product Details
| Condition | New | Type | Natural Circulation | |
| Usage | Industrial | Structure | Other, Water Tube, packaged | |
| Pressure | Low Pressure | Style | Horizontal | |
| Fuel | Gas-fired | Place of Origin | Shandong, China | |
| Brand Name | ENNENG | Model Number | SZS | |
| Output | Steam | Dimension(L*W*H) | depends on the model | |
| Weight | depends on the model | Certification | ASME | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Water Tube Steam Boiler Parameter
Model | SZS6.0 | SZS8.0 | SZS10.0 | SZS15.0 | SZS20.0 | SZS30.0 | SZS40.0 | ||
Rated capacity | 6000kg/h | 8000kg/h | 10000kg/h | 15000kg/h | 20000kg/h | 30000kg/h | 40000kg/h | ||
Rated working pressure | 0.70 / 1.0 / 1.25 /1.6MPa | ||||||||
Rated feedwater temperature | 105℃ | ||||||||
Saturated steam temperature | 170.4 / 184.1 / 193.4/204.3 ℃ | ||||||||
Design efficiency | ≥ 93% | ||||||||
Adaptable fuel | Light oil, natural gas | ||||||||
Steam outlet | DN125 | DN150 | DN150 | DN200 | DN200 | DN250 | DN250 | ||
Water inlet | DN50 | DN50 | DN50 | DN65 | DN80 | DN100 | DN100 | ||
Safety valve | DN50×2 | DN50×2 | DN65×2 | DN80×2 | DN100×2 | DN125×2 | DN150×2 | ||
Drainage valve | DN40×2 | DN40×2 | DN40×2 | DN40×2 | DN40×2 | DN50×2 | DN50×2 | ||
Boiler total length A | 6160mm | 7900mm | 11500mm | 12700mm | 13500mm | 15900mm | 17900mm | ||
Boiler total height B | 3960mm | 3700mm | 6250mm | 6250mm | 6550mm | 6550mm | 7250mm | ||
Boiler total width C | 3350mm | 3780mm | 5640mm | 5640mm | 5860mm | 5860mm | 6600mm | ||
1. The related data is made as per rated working pressure of 1.0MPa.
