UTP/FTP/SFTP CAT6 LAN CABLE WITH CE & ROHS CERTIFICATION NETWORK CABLE
US$ 77.42 - 80.65
/ Foot
1000 Feet(Min. Order)
- SHENZHEN CHINA
- T/T D/P D/A
You May Like
-
HIGH QUALITY UTP/FTP/SFTP CAT6 LAN CABLE WITH CE & ROHS CERTIFICATION NETWORK CABLE
-
Low Price CAT6 SFTP LAN CABLE WITH CE & ROHS CERTIFICATION NETWORK CABLE
-
0.6/1KV Spanish Code Toxfree ZH RZ1-K LSOH Power Cable
-
Low Voltage Electric Power Cable XLPE Insulated Cable
-
Copper Conductor YJV/YJV22 XLPE Insulated PVC Sheathed Power Cables
-
Underground XLPE Power Cable 240 sq mm
Product Details
| Place of Origin | Guangdong, China | Brand Name | TIMSAH | |
| Model Number | CAT6 UTP | Conductor Material | Copper | |
| Insulation Material | PE | Jacket | PVC | |
| Number of Conductors | 4Pair |
Product Description

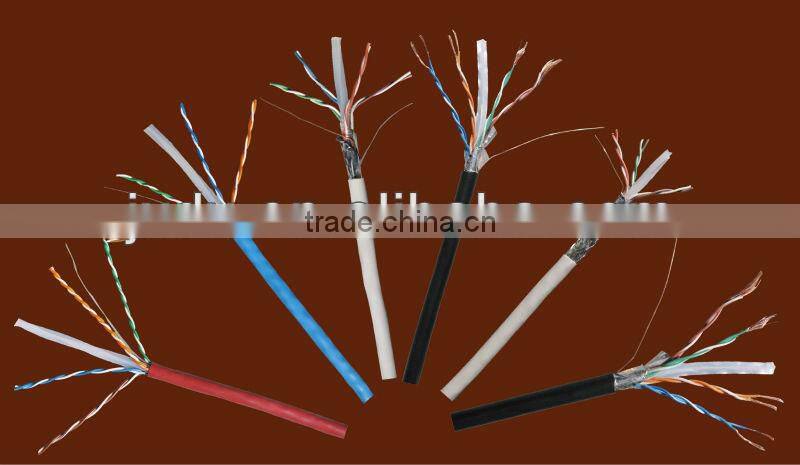

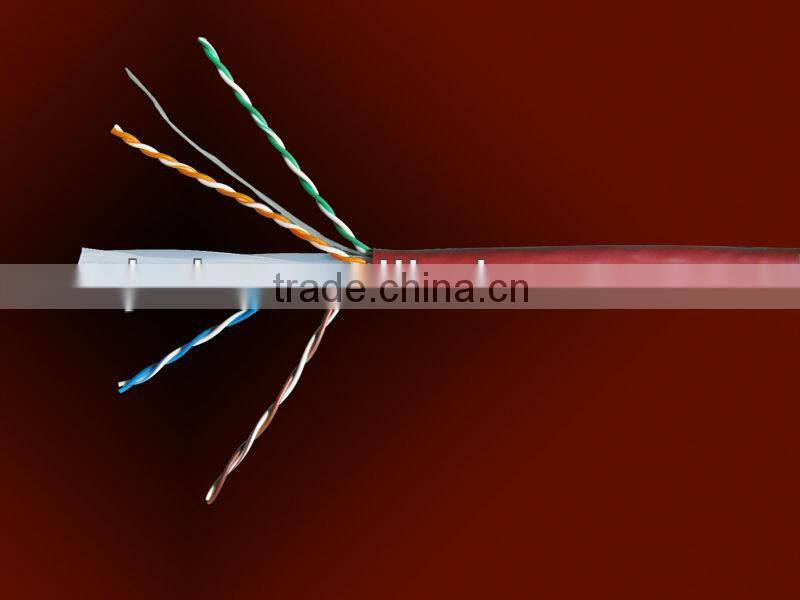

Specifications
Conductor: 0.56mm pure copperInsulator: HDPE
Stuff: PE Cross or FM-PE Partition
Tearing Cord:Aram
Pass fluck test
Application
Frequency comes to 100MHz, supporting to digital, voice, data and video signal as well as apply to high requirement. Using in Building communication Cabling between workstation server and MDF as well as Residential Cabling System end user and MDF. Supporting to 10BASE-T, Integrated Services Digital Network, 100BASE-T4/TX (Fast Ethernet), 4/16Mbps Token Ring (IEEE802.5), 100Mbps TP-PMD, ATM52/155Mbps, TIA/EIA568B.2
Wire Specification
| Conductor | Insulator | Pair | Stuff | Jacket | ||||
| AWG | Spec | Material | Thickness | Material | Thickness | Diameter | ||
| (mm) | (NOM.mm) | (NOM.mm) | (NOM.mm) | |||||
| 26 | 1/0.404 | HD-PE | 0.18 | 4P | PE Cross | PVC or LSNH | 0.55 | 5.5 |
| 7/0.16 | HD-PE | 0.18 | 4P | PE Cross | PVC or LSNH | 0.55 | 5.5 | |
| 24 | 1/0.58 | HD-PE | 0.18 | 4P | PE Cross | PVC or LSNH | 0.55 | 6.5 |
| 1/0.58 | HD-PE | 0.18 | 4P | FM-PE Partition | PVC or LSNH | 0.55 | 6 | |
| 7/0.203 | HD-PE | 0.18 | 4P | PE Cross | PVC or LSNH | 0.55 | 6.2 | |
| 7/0.203 | HD-PE | 0.18 | 4P | FM-PE Partition | PVC or LSNH | 0.55 | 5.8 | |
Tested Standard
EPA3050B:1996 / EN1122:2001 / EPA3052:1996
EPA3060A/ EPA7196/ EPA3540C/ EPA8270C
EN 55022:2006+A1:2007 / EN61000-3-2:2600 / EN61000-3-3:2008 / EN55024:1998+A2:2003

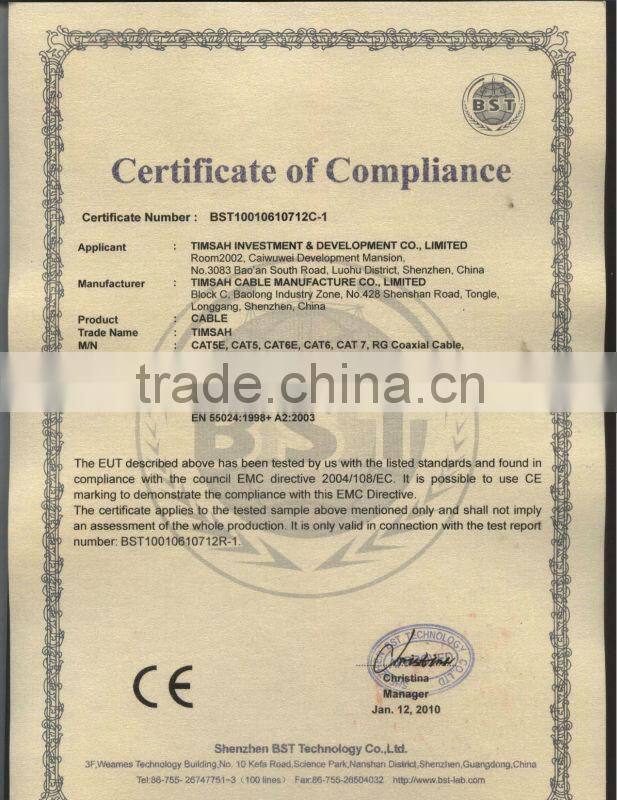

CE & ROHS CERTIFICATION:

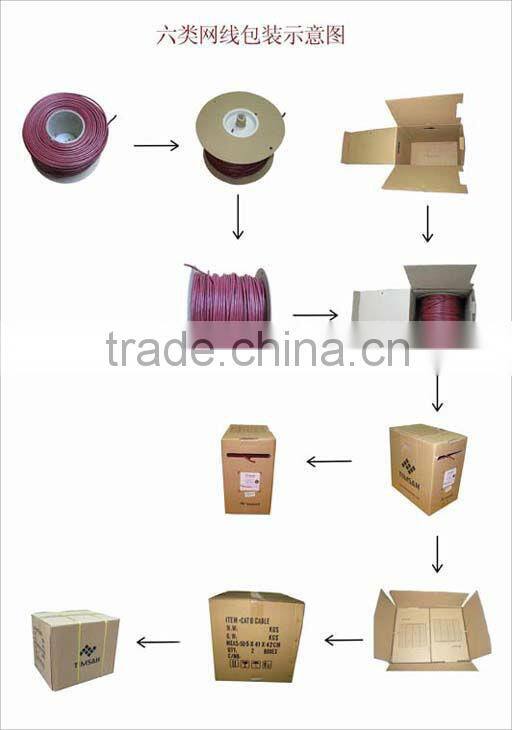

PACKING PICTURE:
