Marine Horizontal Sheave
- SHANGHAI
You May Like
Product Details
| Brand Name | TUF |
Product Description
Specifications
Marine Mooring Boat Ship Fairlead/ Vertical Sheave FairleadMarine Horizontal Sheave Fairlead/Roller Fairlead
1 Technology Details for marine horizontal sheave:
Quality: ISO9001:2000 , OEM&ODM,CNC control
Material: Stainless steel-AISI316 AISI304 ,alloy casting and carbon steel
Technics : Precision Cast
2 The Use of This Marine Fairlead :
The marine fairleads are widely used for small boats and different vessels, such as container vessel, tankers, bulk carriers, tug, dry cargo vessels, etc.

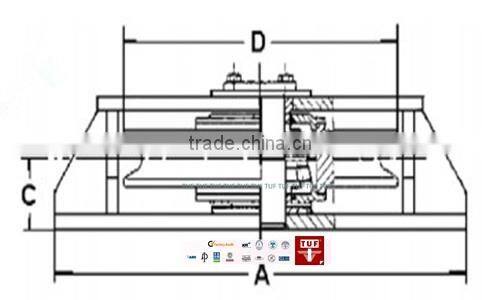

3 Drawing And Specification of The Marine Fairlead:
Wire Size(mm) | Sheave Dia.(mm) | Dimensions(mm) | SWL(KN) | Mass(kgs) | ||
|
| A | B | C |
|
|
25 | 406 | 580 | 580 | 92 | 234 | 176 |
32 | 508 | 690 | 690 | 92 | 355 | 270 |
38 | 610 | 820 | 800 | 120 | 500 | 400 |
45 | 660 | 845 | 845 | 127 | 671 | 550 |
52 | 762 | 1143 | 1143 | 165 | 935 | 890 |
64 | 914 | 1130 | 1130 | 191 | 1414 | 1300 |
