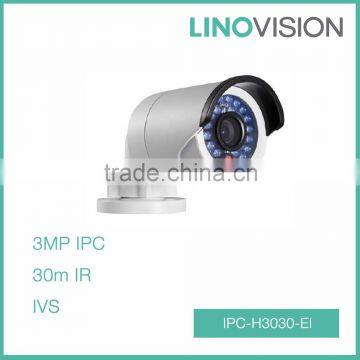

3MP DWDR Water-proof M12 Lens 30m IR Bullet Network CCTV Camera

Model

IPC-H3030-EI

Camera

Image Sensor

1/3" Progressive Scan CMOS

Signal System

PAL/NTSC

Min. Illumination

0.07Lux @ (F1.2, AGC ON) ,0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Lens

4mm@ F2.0, (6mm optional)

2048 × 1536: Angle of view: 70°(4mm), 43.3°(6mm), 20.6°(12mm)

1920 × 1080:Angle of view: 79°(4mm), 49°(6mm), 23.2°(12mm)

Lens Mount

M12

Auto Iris

DC drive

Day &Night

IR cut filter with auto switch

Digital Noise Reduction

3D DNR

Wide Dynamic Range

Digital WDR

Compression Standard

Video Compression

H.264/ MJPEG

Video Bit Rate

32 Kbps – 12 Mbps

Dual Stream

Yes


Max. Resolution

2048×1536

Frame Rate

50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1280 × 720)

60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080), 30fps (1280 × 720)

Image Settings

Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser

Backlight compensation

Yes, zone optional

ROI

Support

Network

Network Storage

NAS (Support NFS,SMB/CIFS)

Alarm Trigger

Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception

Protocols

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,

PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour

General

One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access

Standard

ONVIF, PSIA, CGI, ISAPI

Interface

Communication Interface

1 RJ45 10M/100M Ethernet interface

Reset Button

Yes

General

Operating Conditions

-30 °C – 60 °C (-22 °F – 140 °F)Humidity 95% or less (non-condensing)

Power Supply

12 V DC ± 10% PoE (802.3af)

Power Consumption

Max. 5 W (Max. 7 W with IR cut filter on)

Ingress Protection level

IP66

IR Range

-I: Approx 20 to 30 meters(65.6-98.4ft)

Dimensions

70×154.2×60.5 mm (2.8” × 6.2” × 2.4”)

Weight

500g (1.1 lbs)
