Home > Products > Optical indoor/outdoor cable > 4 Core Singlemode Fiber Optic Cable

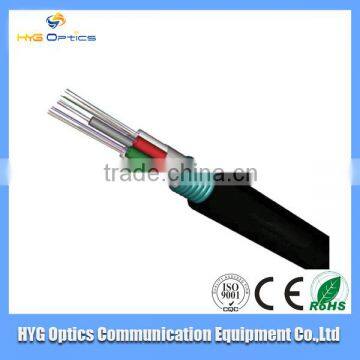

4 Core Singlemode Fiber Optic Cable

FOB Price

US$ 0.25 - 7.87 / Kilometer

10 Kilometers(Min. Order)

Port Shenzhen
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	HYG
Model Number	hyg-ca-0123

Packaging Details

2~4km / wooden drums

Product Description

Specifications

4 Core Singlemode Fiber Optic Cable

Specifications

0.6mm, 0.9mm tight buffer/loose buffer fiber;
Aramid yarn for strength member;
UL 94V0 flame retardant cable jacket material.

Applications

1, Used in pigtails and patch cords;

2, Used in optical connections in optical communication equipment rooms and optical distribution frames;

3, Used in optical connections in optical apparatus and equipments.

Features

1, Good mechanical and environmental characteristics;

2, Flame retardant characteristics meets the requirements of relevant standards;

3, The mechanical characteristics meet the requirements of relevant standards;

4, Soft, flexible, easy to splice, and with big capacity data transmission;

5, Meet various requirements of market and clients.

Cable Parameters

Fiber Count	Cable Dimension mm	Cable Weight kg/km	Tensile N		Crush N/100mm		Min. Bend Radius mm		Range of Temperature
Fiber Count	Cable Dimension mm	Cable Weight kg/km	Long Term	Short Term	Long Term	Short Term	Dynamic	Static	Range of Temperature
1	1.6	2.0	30	60			50	30	-20-+60
1	1.8	2.8	40	80			50	30
1	2.0	3.5	60	100	100	500	50	30
1	2.4	4.5	60	100	100	500	50	30
1	2.8	5.8	80	150	100	500	60	30
1	3.0	6.5	80	150	100	500	60	30
Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2..The minimum bend radius (static) is 15mm when G.657 fiber is used.

Options

1, Fiber Type: single-mode fiber,multi mode cable, or other types of fiber;

2, Jacket Material: Enviromental flame-retardant polyvinyl chloride (PVC), enviromental low smoke zero halogen flame retardant polyolefin (LSZH), enviromentalthermoplatic polyurethane (TPU), or other contracted material;

3, Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;

4, Cable Dimension: The nominal cable dimension, or other contracted dimension;

Company Profile

Shenzhen Haiyu Optics Communication Equipment Co., Ltd.

About HYG Optics The Haiyu Optics, founded in 2000, is focus on design and manufactured fiber optic communication products. It has developed a range of products including Indoor and outdoor optical cables, fiber optic jumpers, pigtails, connectors and adapters, network solution equipment like optic media converters, attenuators, tranceivers, optical models and other accessories. Widely used in telecom communication, mobile communication, network solution, radio and television, etc. HYG Quality Assurance Our ISO9001:2008 certified quality management systems have been refined for flexibility and efficiency, and produce a high quality, high reliability, low cost and diverse product range. Other quality system we complying with ISO14001, CE, Rohs and 5S system. Advanced high precision test equipment: Insertion and return loss tester, 3D Interferometer. The location The company is located in Shenzhen, near by Hongkong, enjoying the convenient transportation. Our products are exported to USA, Germany, France, Russia, the UAE, Indonesia and so on. For our long-term development, our company cooperates with Corning, OFS, YFOC, CCTC, etc. Our mission QUALITY TO SURVIVE, INNOVATION FOR DEVELOPMENT.
