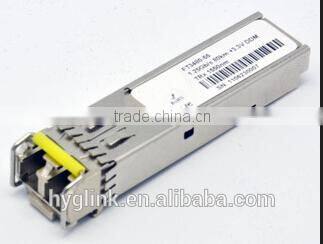

1.25Gb/s CWDM SFP Transceiver
- shenzhenjumper wire
- D/P D/A Credit Card PayPal
You May Like
Product Details
| Brand Name | HYG | Model Number | HYG-001 |
standard package
Product Description
Specifications
Product Features :Hot-pluggable SFP footprint
850nm VCSEL laser transmitter
RoHS compliant
1.25Gb/s CWDM SFP Transceiver
Up to 1.25Gb/s data links
Duplex LC connector
Hot-pluggable SFP footprint
Uncooled DFB laser transmitter
in 18 possible CWDM wavelengths
RoHS compliant and Lead Free
Up to 80km on 9/125um SMF
Metal enclosure for lower EMI
Single +3.3V power supply
Low power dissipation <800mW
Commercial operating temperature
SFP MSA SFF-8074i Compliant
Applications
Gigabit Ethernet
1x Fibre Channel
General
HYG'S CTSCxx123xxL80 Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.063Gbps and 80km transmission distance with SMF. They are RoHS compliant and lead-free.
| Product Selection | |||
| Part Number | Operating temperature | DDMI | |
| CTSCxx123CXL80 | Commercial | No | |
| CTSCxx123CDL80 | Commercial | Yes | |

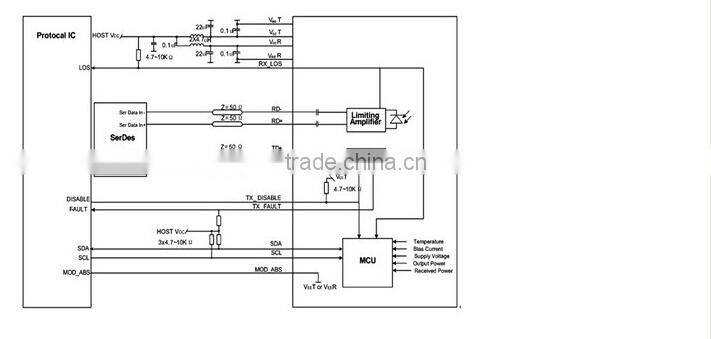

Recommend Circuit Schematic
Absolute Maximum Ratings
| Parameter | Symbol | Min | Typ | Max | Unit | Ref. | |
| Maximum Supply Voltage | Vcc | -0.5 | - | +4.0 | V | ||
| Storage Temperature | TS | -40 | - | +85 | °C | ||
| Operating Humidity | RH | 5 | - | 95 | % | ||
Mechanical Specifications
HYG's Small Form Factor Pluggable (SFP) transceivers are compatible with the dimensions defined by the SFP Multi-Sourcing Agreement (MSA).
CTSCxx123xxL80
