fiber optic digit receiver for the base station
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
analog to fiber converter for the base station
-
bnc to fiber video converter for the base station
-
fiber optic to coaxial converter for the base station
-
hd-sdi fiber converter for the base station
-
optic fiber digital to analog converter for the base station
-
fiber optic to rj45 media converter for the base station
Product Details
| Place of Origin | Guangdong, China | Brand Name | HYG | |
| Model Number | HYG-FOC-SC |
1 pc in a pc bag,then in a box,50 pc in a ctn
Product Description
Specifications
fiber optic digit receiver1.IEEE802.3u.100BASE-T and 100 BASE-FL
2.1*UTP RJ-45 and 1*SC/ST
3.10M/100/1000Mb
fiber optic digit receiver for the base station
10/100M,100/1000M Adaptive fast Ethernet fiber optic transceivers have finished Photoelectric conversion from 10,100 base-TX to 100 BASE-FX.transceiver is a good equipment for Campus and backbone network,used to exchange and share in Ethernet wiring environment.can be used at connecting Server, workstation, HUB, switches and etc...have single mode and multi mode,several Transmission distances(farthest distance reach to 120km) can be choosed.customer can choose different power supply mode ,such as External dc/built in SMPS/48V.
features
1.IEEE802.3u.100BASE-T and 100 BASE-FL
2.Full-Duplex/Half-Duplex,and it’s with Automatic negotiation function
3.MM connection transmission distance:2km
4.SM connection transmission distance:20/40/60/80/120km
5.Less fever,stable performance
6.Plug and play,can be on the rack
7.Complete LED status indication,used for Network diagnosis and fault inspection
8.automatic identification MD1/MD1-X Cross line and parallel lines
9.Good Flow control, with self reset,can stop system halted.
technical parameters
Standard protocol | LEEE802.3Fast Ethernet 100Base-T/100Base-FL |
Network protocol | CSMA/CD |
connector | 1*UTP RJ-45 and 1*SC/ST/FC |
indicator light | PWR/FDX/FX LINK/TX LINK/TX LINK/TX ACT |
manner of working | Full-Duplex/Half-Duplex,with Automatic negotiation function |
transmission rate | 10M/100Mbps |
Transmission mode | Pure forward |
Power supply parameters | INPUT:110-260V AC or 48V DC |
ambient temp | -40°C~+65°C |
RH | 5%~90% |

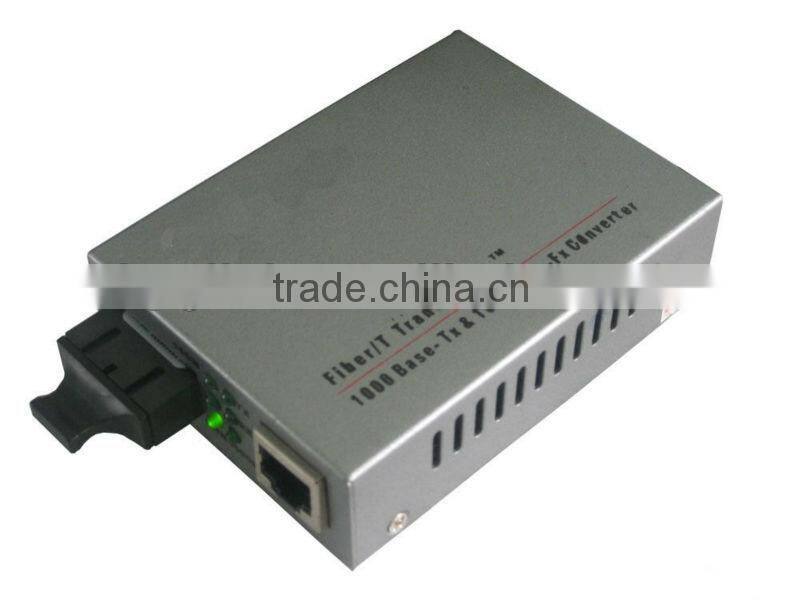

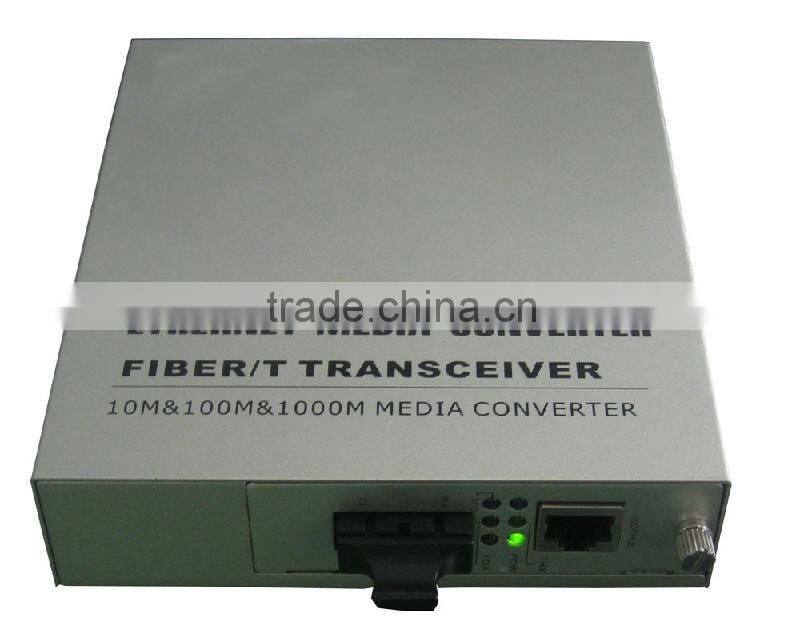

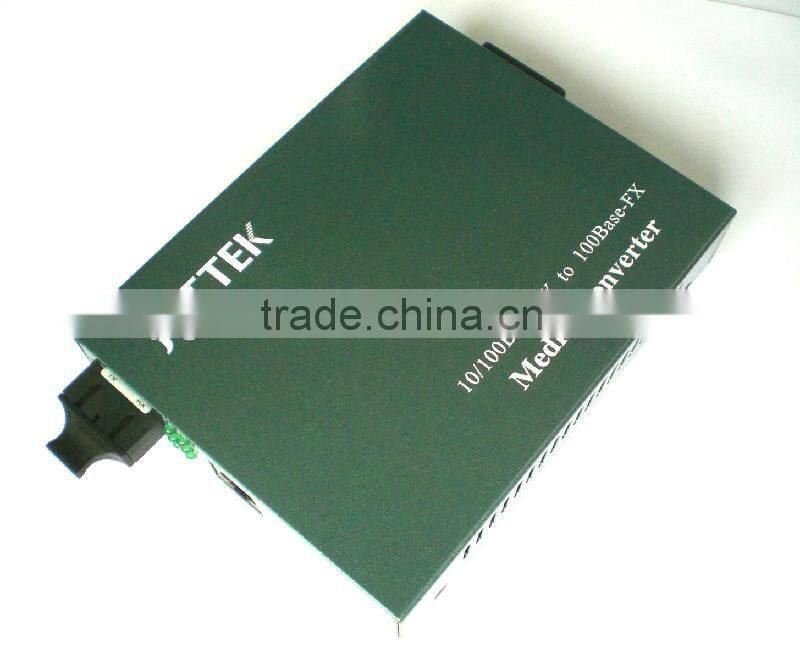

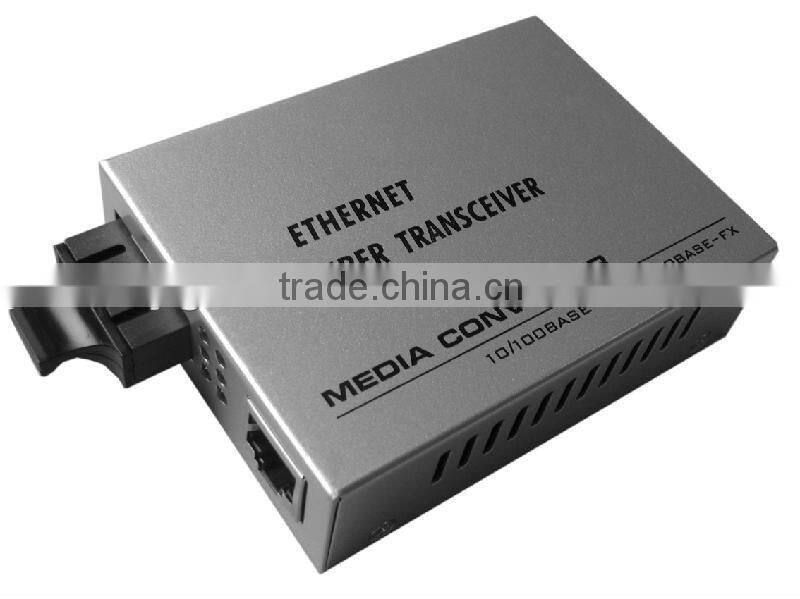

other pectures about our converter:
Company Profile
About HYG Optics The Haiyu Optics, founded in 2000, is focus on design and manufactured fiber optic communication products. It has developed a range of products including Indoor and outdoor optical cables, fiber optic jumpers, pigtails, connectors and adapters, network solution equipment like optic media converters, attenuators, tranceivers, optical models and other accessories. Widely used in telecom communication, mobile communication, network solution, radio and television, etc. HYG Quality Assurance Our ISO9001:2008 certified quality management systems have been refined for flexibility and efficiency, and produce a high quality, high reliability, low cost and diverse product range. Other quality system we complying with ISO14001, CE, Rohs and 5S system. Advanced high precision test equipment: Insertion and return loss tester, 3D Interferometer. The location The company is located in Shenzhen, near by Hongkong, enjoying the convenient transportation. Our products are exported to USA, Germany, France, Russia, the UAE, Indonesia and so on. For our long-term development, our company cooperates with Corning, OFS, YFOC, CCTC, etc. Our mission QUALITY TO SURVIVE, INNOVATION FOR DEVELOPMENT.
