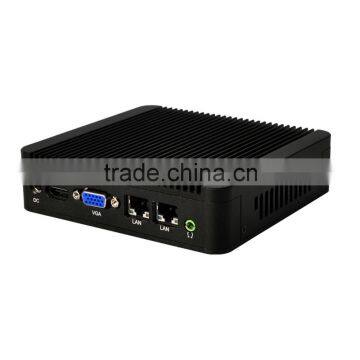

Nuc Motherboard Industrial Desktop Computers 2gb DDR3 Ram 256gb Msata SSD HD Graphics Mini PC Serial Port

Nuc Motherboard Industrial Desktop Computers 2gb DDR3 Ram 256gb Msata SSD HD Graphics Mini PC Serial Port

Color: Black

Onboard CPU: Intel Celeron Processor J1900(Quad-Core 2M Cache, 2 GHz, up to 2.41 GHz )

Memory: 2 GB 1333MHz/1600MHz DDR3 SO-DIMM Memory

- 1 x Memory Slot, Supports up to 8GB Memory

Storage: 256 GB Msata SSD

- mSATA port

- Large capacity mSATA SSD is optional, up to 256GB SSD

Onboard VGA: Intel HD Graphics

LAN: 2 x RJ-45 ports

- Realtek RTL8111E 10/100/1000 Controller

Audio: Realtek ALC662 HD Audio

Power Consumption: 10W, max 23W

Front-Panel Connectors:

1 x Power switch button ( Power LED )

1 x HDD LED

1 x USB 3.0 port

3 x USB 2.0 ports

1 x Microphone port

1 x Serial port

Back-Panel Connectors:

1 x DC 12V DC input

1 x HD Video port

1 x VGA port

2 x RJ-45 ports

1 x Speaker port

Operating System:  Support Windows 7 / Windows 8 /Linux etc.(not support Windows XP)

Size: 135x128x38mm

Packing Size: 260x230x70mm

Weight: 680g

Packing Weight: 1.5KG

What's in the box:

1 x K190S mini pc

1 x Power adapter

1 x Power cord

1 x VESA Mount Bracket ( 75mm x75mm )

Warranty:

1. The memory and storage can be taken out to replace other capacity by yourself.

2. BIOS are able to configure for Auto startup after Power interruption.

3. BIOS supports specific time startup.

4. Fanless.

5. We assure you that all mini pc/ accessories have been PASSED the QC TEST before shipment.

6. For all the mini pcs you bought from us, we provide a full one-year warranty.

7. If the products do not work well, contact us at first, pls! We will try to figure out workable solutions with our professional team.

 Factory pictures:
