Cylinder Linear Rail Shaft WC5

Cylinder linear rail Shaft WC5

Application

Linear shaft  is widely used in Machine centers,Machine tools,Precision machining machines,Heavy cutting machines,Punching machines,Marble cutting machines,Automatic equipments,Grinding machines,High speed transfer equipments,Injection molding machines,3d printer, Measuring equipments.

Specification

1.linear shaft material:Gcr15 steel or 45#steel

2.hardness :58-62

3.precision:g6

4.roughness:Ra0.4-0.8

5.hard belt depth:2mm-3mm

6.diameter: 3mm-150mm

7.length:Max 6000mm or according to your requirement

8.roundness:does not surpass 0.003mm

Packing

1.Standard packing (neutral plastic bag+ neutral paper box + carton+ wod pallets)

2. Custom packing ( according to clients’ requirement)

linear shaf

 Delivery

1. Less than 45 KGS, send by express.

2. Between 45 - 150 KGS, send by  air .

3. More than 150 KGS,  send by sea.

4. According to clients’ requirement

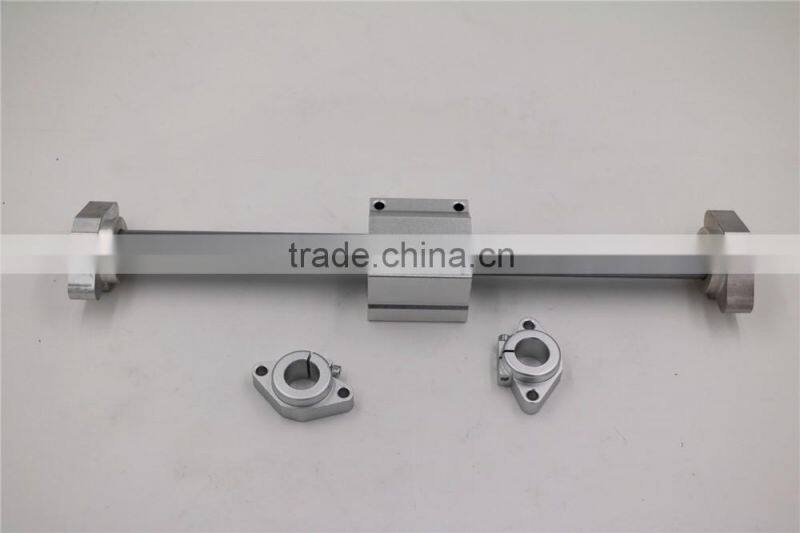

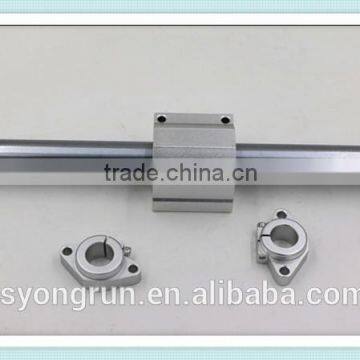

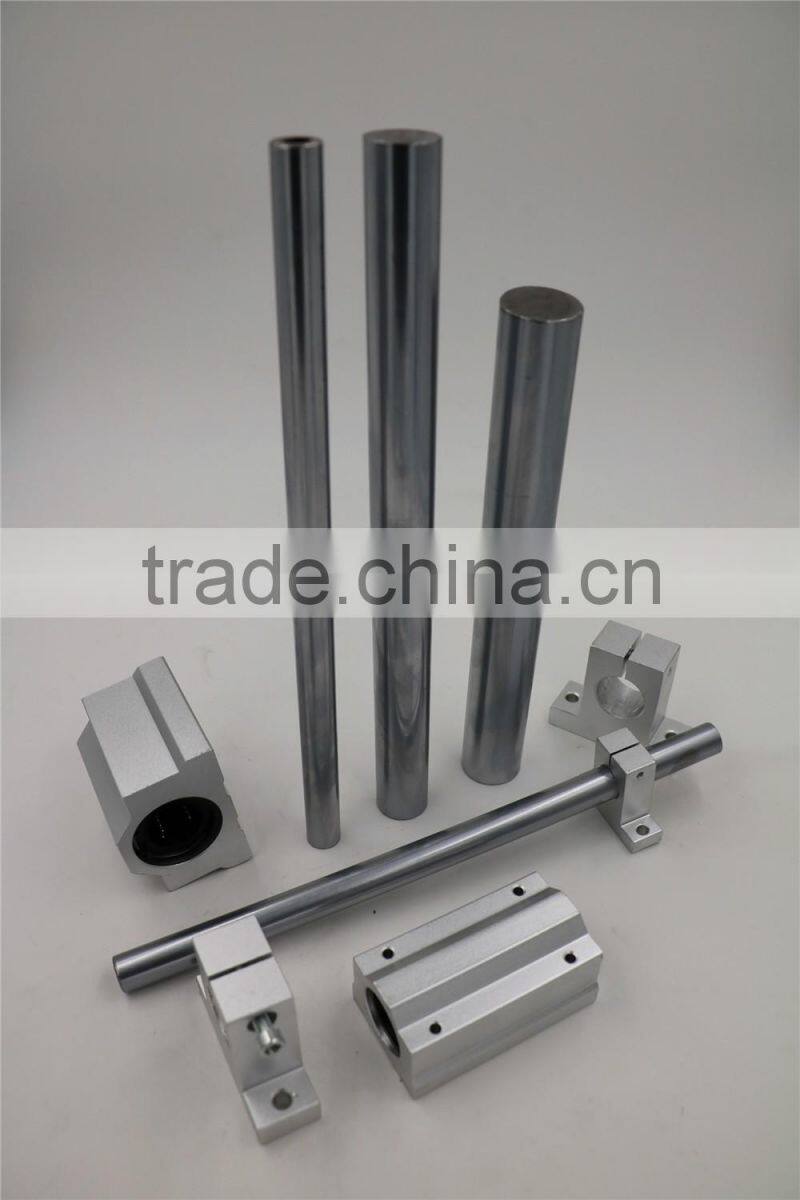

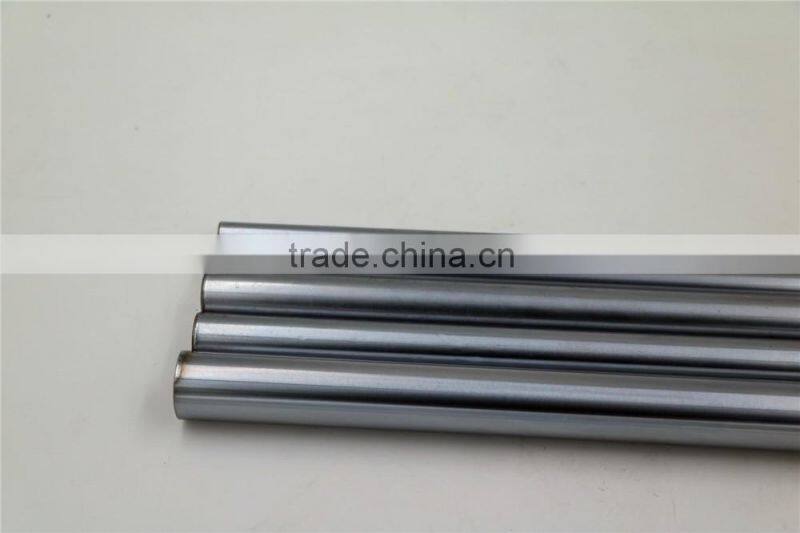

 Photos  Cylinder linear rail Shaft WC5

Detail refer

Special Machining for Linear Shaft

1.we can offer linear shaft with diameter5mm-150mm,maximum length up to 6000mm.

when you have special requirements on length, we can meet your machining requirement with different length,suach as when you request above 6000mm,we can anti-connect for you .

2.when you have special requirement on machining,such as threading,coaxial holes drilled and tapped,radial holes drilled and tapped, reduced linear shaft diameter etc,we can machine for you ,and these special machines finished after heat treatment and chromic which will ensure the precision of products.

 Cylinder linear rail Shaft WC5

We professional in producing linear guide ,ball screw ,ball screw support unit ,linear shaft ,linear motion bearings ,rod end bearings ,needle rollder bearings and so on.

Welcome to inquiry .Thank you .
