Home > Products > 36V Power supply > Power Supply 350w 36v 9.7a With CE ROHS FCC CB
Power Supply 350w 36v 9.7a With CE ROHS FCC CB
- shenzhen
- Credit Card
You May Like
-
Switching Power Supply 36v 9a Made in China
-
External Audio 144w Power Supply 36v ac Adapter
-
Transformer ac to dc 36v 10a Power Adapter
-
360w Switching Power Supply 36v 10a dc Psu 36volt
-
36v Regulated Power Supply 36v 4 Amps dc Adapter (low Ripple and Noise)
-
Wholesale Price Ac/dc Power Adapter Switching 288w 36v 8a Power Supply
Product Details
| Place of Origin | Guangdong, China | Brand Name | OEM | |
| Model Number | 36v 9.7a | Output Power | 301 - 400W | |
| Output Type | Single | Input Voltage | Other, 115V or 230V by switch | |
| Output Voltage | 36v | Output Frequency | 47~64HZ | |
| Output Current | 9.7A |
Product Description

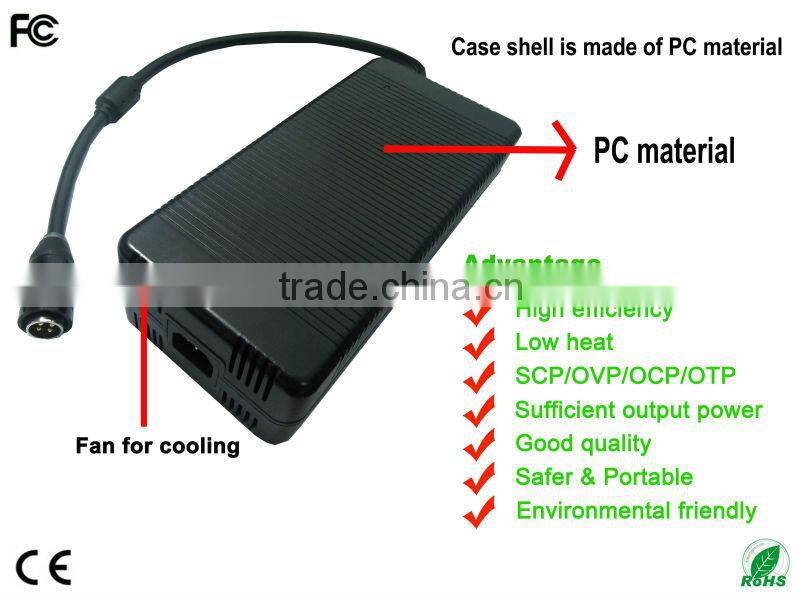

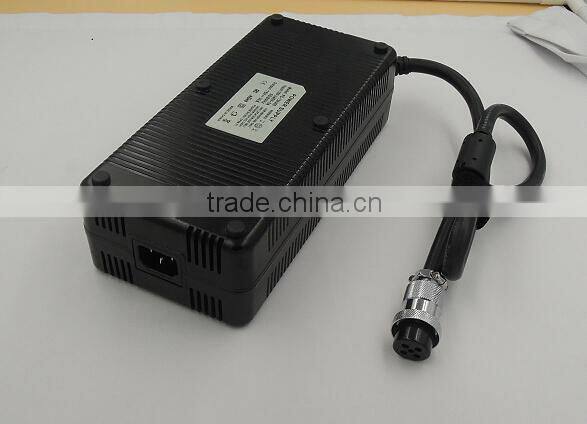

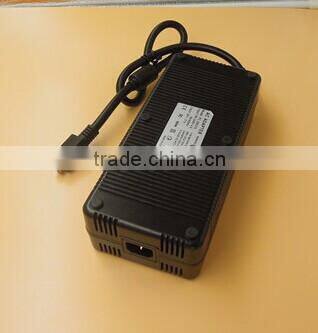

power supply 350w 36v 9.7a with CE ROHS FCC CB
Shenzhen Easthighrun Electric Co. Ltd. is engaged in the design, development, production in switching power supply, especially plastic case is our advantage, we can make 5V ~50V, 500W max , so far we are the first company in Shenzhen for the technology, good quality and good price will offer to
you.
All the products are 100% aging test and with CE, FCC, RoHS, PSE, SAA, KCC, CB approval .
OEM and ODM orders are always welcomed.
Specification | ||
Features: | ||
1:AC input range by the switch | ||
2:Protection:Short Circuit Protection,Overload Protection,Over Voltage Protection | ||
3:Forced air cooling by built-in DC fan with fan speed control | ||
4:Thermostat fan operation | ||
5:100% full load aging test | ||
6:LED power-on indicator | ||
7:100% PC material | ||
Electrical Specification: | ||
Output | 1:DC voltage | 36V |
2:Rated Current | 9.7A | |
3:Current Range | 0--9.7A | |
4:Ripple&Noise(max) | ≤100mv | |
5:Voltage ADJ.Range | ±0.5% | |
6:voltage tolerance | ±0.5% | |
7:Line regulation | ±0.5% | |
8:Load regulation | ±0.5% Full Load | |
9:Setup Rise Time | 200ms 40ms/230VAC | |
10:Hold Time(TYP.) | 20MS/230VAC 15MS/115VAC | |
Input | 1:Voltage Range | 115v or 230v by switch |
2:Frequency Range | 47——63HZ | |
3:Efficiency | 85% | |
4:Leak Current | ≤0.1MA/230VAC 115VAC | |
Protection | 1:Over Load | Rated Output Power 105-140% |
2:Over Voltage | > Rated Voltage 108% | |
3:Short circuit | Load automatically after fault condition is removed to restore | |
Function | 1:Fan switch Control | RTH≥50°C Fan ON |
Environment | 1:operate temperature | -20C~65C |
2:storage temperature, | -20C~+80C, 10%~90%RH no Condensing | |
Safety&EMC | 1:withstand voltage | Input and output internal:1.5KVAC,Input and enclosure:1.5KVAC, |
2:EMC IMMUNITY | Compliance to EN55022 (CISPR22) CLASS A | |
Others | 1: Dimension | 240*110*65mm |
2:Package | Normally white paper box | |
Dimension
• Power tools series: Electric Saw, Drilling Machine, Ginder, Sand blast Machine, Puching Machine,Weeding Machine,Air Compressor etc.
• Office series: Computer,Printer,LCD Monitor,Scanning Machine etc.
• Household Appliance series: Dust Collector,Fan Lamp or LED ,Sewing Machine etc.
• Kitchen Appliance series: Microwave Oven, Fridge, Freezer, Coffee marker etc.
• Industrial Equipemnt series: shipping,vehicle, metal halide lamp,solar system,wind power generation ect.
• Electrical filed series: TV,VCRS, 3D printer, PC, mechanical equipment, medical equipment, bitcoin miner, Radio ect.
1.Best quality: We have the best professional and experienced engineer
and strict QA and QC system.
2.Best price: We make the product by our own company, so we can control
the quality well and reduce the cost to offer competitive price and excellent quality.
3.Good after-sale service: 2 years warranty.
4.Have more than 10 years experience,we are more professional for our customer,provide
OEM and ODM.
1.What's your MOQ ?---------------------->100pcs
2.What's your payment term? ------------>Paypal and T/T in advance
3.What's your Leading time?-------------->About 7-9 working days normal
4.What's your price term?----------------->EX-Works & FOB SHENZHEN
5.What's your Shipping way? ------------->DHL/FedEx/UPS/TNT/EMS/By air/By sea
Any questions please no hesistate to contact us !
