Home > Products > LED Driver > Low Input Voltage 12-24V Boost LED Driver 10W 12W 20W 30W 50W 80W IP67
Low Input Voltage 12-24V Boost LED Driver 10W 12W 20W 30W 50W 80W IP67
US$ 2.5 - 2.5
/ Piece
1 Piece(Min. Order)
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
boat led light brass material commen use on everywhere BA15D/BAY15D/BA15S
-
plastic dome light covers 6w ABS 12v dome led
-
IP65 ABS 3W 12V High Lumen LED Dome Light
-
220V 230V R7S Halogen Lamp Bulb 200W 500W 1000W 118cm 189cm
-
For Marine High Pressure Sodium Lamp 230V E40 Base Natrium Lamp 250W 400W 600W 1000W Light Bulb
-
Best Selling Led Light USB Mini Led Aluminum Lamp USB
Product Details
| Brand Name | Langlee | Model Number | LD12V-SD01 | |
| Output Power | Other, 12W | Output Type | Dual | |
| Input Voltage | Other, 12-24VDC, 12-24V | Output Voltage | 15-42V, 15-42V | |
| Output Frequency | N/A | Output Current | 300mA 3% |
Product Description

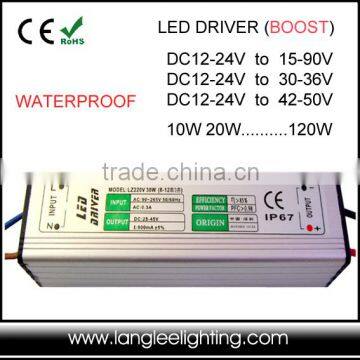

Boost LED Driver
12-24V Input Voltage
10W 12W 20W 25W 30W
50W 60W 80W 100W 120W
Waterproof IP67 For outdoor
Floodlight, Road light, Underwater light
| Model | Power | Input Volt | Output Volt | Outpu current | conversion efficiency | Dimension ( L*W*H) | Weight |
| LD12V-SD11 | 4-9*1W | DC12V | 12-32V | 300mA±3% | 90% | 55*25*20mm | 50g |
| LD12V-SD12 | 10W | DC12-24V | 9-12V | 900mA±3% | 90% | 55*25*20mm | 50 g |
| LD12V-SD13 | 1-3X1W | DC12V | 3-11V | 300mA±3% | 90% | 55*25*20mm | 50 g |
| 1-7X1W | DC24V | 3-25V | 300mA±3% | 90% | 55*25*20mm | 50 g | |
| LD12V-SD01 | 5-12*1W | DC12-24V | 15-42V | 300mA±3% | 90% | 85*24*24mm | 70 g |
| 9-12*1W | DC12-24V | 27-42V | 300mA±3% | 90% | 85*24*24mm | 70 g | |
| LD12V-SD02 | 10-25*1W | DC12-24V | 18-90V | 300mA±3% | 90% | 102*29*19mm | 100 g |
| LD12V-SD03A | 20W | DC12-24V | 30-36V | 600mA±3% | 90% | 102*29*19mm | 100 g |
| LD12V-SD04 | 30W | DC12-24V | 30-36V | 900mA±3% | 90% | 105*36*27mm | 150 g |
| LD12V-SD05 | 50W | DC12-24V | 30-36V | 1500mA±3% | 90% | 100*42*31mm | 220 g |
| LD12V-SD06A | 60W | DC12-24V | 30-36V | 1800mA±3% | 90% | 162*50*40mm | 490 g |
| LD12V-SD06B | 60W | DC12-24V | 30-36V | 1800mA±3% | 90% | 136*41*30mm | 490 g |
| LD12V-SD07 | 70W | DC12-24V | 30-36V | 2100mA±3% | 90% | 168*49*38mm | 580 g |
| LD12V-SD08 | 80W | DC12-24V | 30-36V | 2400mA±3% | 90% | 168*49*38mm | 580 g |
| LD12V-SD09 | 100W | DC12-24V | 30-36V | 3000mA±3% | 90% | 153*66*43mm | 760 g |
| LD12V-SD10 | 120W | DC12-24V | 30-36V | 3600mA±3% | 90% | 219*66*44mm | 1250 g |
