24W New housing external led driver for ceiling light
US$ 1 - 8
/ Piece
200 Pieces(Min. Order)
- ShenZhen
- T/T Credit Card
You May Like
-
60W Indoor led power supply
-
New Safety Case Indoor led power supply
-
XieZhen PC Case external led power supply
-
Good Price CQC Low Consumption led driver module
-
2014 HOT open frame 12v 30w Electronic Led Drive With CE ROHS&3 Years Warranty
-
China Xiezhen Power External LED Driver With Mounted Hole&Easy To Be Mounted
Product Details
| Place of Origin | Guangdong, China | Brand Name | XZ-power | |
| Model Number | XZ-CG24B2 | Output Power | Other, 24W | |
| Output Type | Single | Input Voltage | Other, 277V | |
| Output Voltage | 27-42V | Output Frequency | 47-63HZ | |
| Output Current | 200-550mA |
Product Description

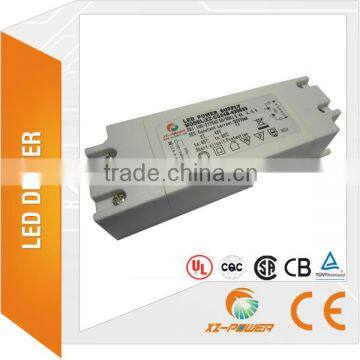

24W New housing external led driver
Detail pictures
Technical parameter
| Item No | XZ-CG24B | XZ-CG24B2 | ||||||
| Type | Constant Current | Constant Current | ||||||
| Structure | External isolated | External isolated | ||||||
| Input Volatage | AC 100-277V | AC 100-277V | ||||||
| Output Voltage | 15-28V | 27-42V | ||||||
| Output Current | 400-700mA | 200-550mA | ||||||
| Output Power | 24W COB | 24W COB | ||||||
| Power Factor | 0.9 | 0.9 | ||||||
| Efficiency | 87% | 88% | ||||||
| Current Accuracy | ±5% | ±5% | ||||||
| Working Tem | from-10°C to 45°C | from-10°C to 45°C | ||||||
| Protection | Short circuit/over current/over voltage | Short circuit/over current/over voltage | ||||||
| Dimension | 120*40*27mm | 120*40*27mm | ||||||
| Certification | UL TUV SAA CQC CB | UL TUV SAA CQC CB | ||||||
| N.W/180pcs | 20 | 20 | ||||||
| G.W/180pcs | 19 | 19 | ||||||
| Packing Size | 451*338*441mm | 451*338*441mm | ||||||
| MOQ | 1pcs | 1pcs | ||||||
| Warranty | 3 years | 3 years | ||||||
Drivers features:
- Easy installation, low consumption
- Strong compatibility
- Suitable for LED ceiling light, LED down light ,Panel light etc
- Compliance to worldwide safety regulations for lighting
Production process:
Ceritified UL TUV SAA CB CQC
Packing
Shipment
Payment
Promise
