Chinese Best Fast Start up led driver

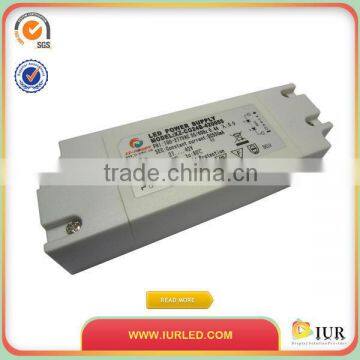

  XZ-CG30B Chinese Best Fast Start up led driver

Item No

XZ-CG30B

Type

Constant Current

Structure

External isolated

Input Volatage

AC 100-277V

Output Voltage

27-42V

Output Current

500-700mA

Output Power

30W LEVEL

Power Factor

0.9

Efficiency

88%

Current Accuracy

±5%

Working Tem

from-10°C to 45°C

Protection

Short circuit/over current/over voltage

Dimension

145*42*29mm

Certification

UL TUV SAA CQC CB

N.W/100pcs

18Kg

G.W/100pcs

17.5Kg

Packing Size

470*395*375mm

MOQ

1pcs

Warranty

3 years

Model

Power Consumption

Input Voltage

Output Voltage

Output Current

Current Accuracy

Efficiency

PF

Dimension L*W*H

XZ-CG15B

15W series

100-277V

15-28V

200-420MA

±5%

85%

0.9

L97*W38*H22

27-42V

200-350MA

86%

XZ-CG24B

24W series

100-277V

15-28V

400-700MA

±5%

87%

0.9

L120*W40*H27

27-42V

200-550MA

88%

XZ-CG30B

30W series

100-277V

27-42V

500-700MA

±5%

88%

0.9

L145*W42*H29

XZ-CG45B

45W series

100-277V

26-34V

1000-1200MA

±5%

88%

0.9

L145*W42*H29

27-42V

700-1150MA

88%

40-52V

600-750MA

88%

XZ-CG60B

60W series

100-277V

27-42V

1200-1500MA

±5%

89%

0.9

L158*W53*H30

35-45V

1000-1300MA

89%

40-52V

900-1100MA

89%

Why Choosing Xiezhen LED Power Supply

PROFESSION

30 R&D staff with more than 5-year experience in LED driver development

More than 20 production lines making LED drivers since 2009

STRENGTH

All products are made with strict ISO system, 100% Burn-in tested

Fast Customized LED Driver development

QUALITY

Product 100% burn-in tested, Qualified rated>99.9%

Certificated by CE PSE UL TUV CQC CB SAA

Service

Inquiry Replied within 24 hours

Sample delivered in 1~3 days, batch product delivered in 3~15 days

10 working days for a new customized LED driver
