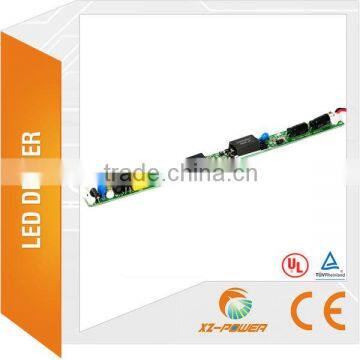

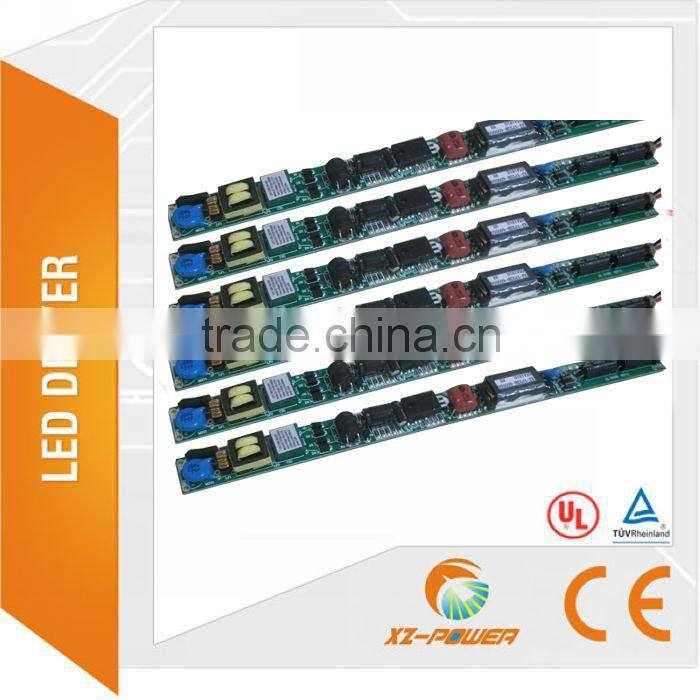

China led tube power supply 12W Driver led tube light t5 driver inside

XZ-TP12B Isolated UL Approved tube8 driver led tube light

Item No

XZ-TP12B

Type

Constant Current

Structure

internal isolated led tube driver

Input Volatage

100-240V/100-277V

Output Voltage

30-40V

Output Current

130-370mA

Output Power

6~12W

Power Factor

>0.9

Efficiency

84%

Current Accuracy

±5%

Working Tem

from-10°C to 45°C

Protection

Short circuit/over current/over voltage

Dimension

220*17*10mm

Feature

EMC Passed/CE passed/ UL processing

N.W/200pcs

12Kg

G.W/200pcs

11Kg

Packing Size

L220*W17*H10

MOQ

200pcs

Warranty

3 years

  Model

Power Consumption

  Input Voltage

  Output Voltage

  Output Current

  Current Accuracy

  Efficiency

  PF

  Dimension L*W*H

XZ-TA12B

  12W series

100-240V

30-42V

130-300MA

±5%

0.84

0.9

L220*W17*H10

100-277V

XZ-TA22B

  22W series

100-240V

30-40V

300-550MA

±5%

0.87

0.9

L250*W17*H10

100-277V

XZ-TA30B

30W series

100-240V

35-50V

560-650MA

±5%

0.87

0.9

L280*W17*H10

100-277V

XZ-TP12B

12 w series

100-240V

30-40V

130-370MA

±5%

0.84

0.9

L220*W17*H10

100-277V

XZ-TP22B

22 w series

100-240V

30-40V

300-550MA

±5%

0.87

0.9

L250*W17*H10

100-277V

XZ-TP30B

30 w series

100-240V

35-40V

560-700MA

±5%

0.87

0.9

L280*W17*H10

100-277V

35-50V

560-650MA
