xz-power led street light high pfc with 3 year warrenty

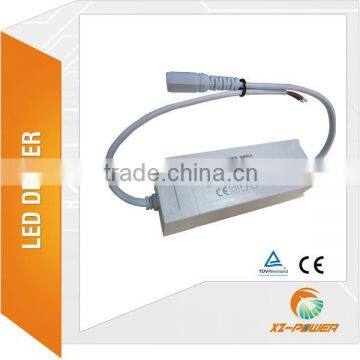

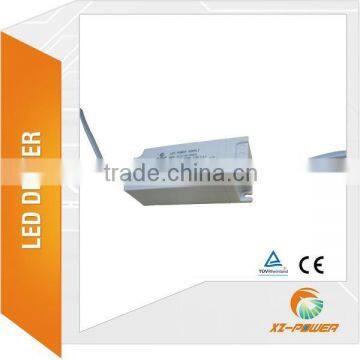

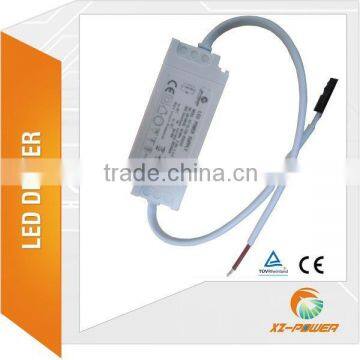

45W Single Channel Constant Current Output LED Driver XZ-CL45B

Output DC Voltage Range

18-28V

27-42V

40-52V

Output Rated Current Range

1200-1500mA

760-1200mA

600-850mA

Output Rated Power

Up to 45W

Output Load Regulation

±5%

Output Turn On Time

0.98S max. @ input 100 - 240 Vac & max. load

Input Voltage Range

100-240Vac

Input Frequency Range

47-63HZ

Input Power Factot Typ.@230V

0.9 mini @ full load

Efficiency Typ.@230V

86% mini @ full load

88% mini @ full load

AC Current

0.45A max. @ input 100Vac & max. load

Input Inrush Current (Typ.)

50A max. @ input 240Vac & max. load

THD (Total Harmonic Dist.)

<20% at full load

Low Ripple

Yes with external ripple suppressor wire

Protection

Short circuit/over current/over voltage

Certificate

CE

Warranty

3 year

Why Choosing Xiezhen LED Power Supply

PROFESSION

30 R&D staff with more than 5-year experience in LED driver development

More than 20 production lines making LED drivers since 2009

STRENGTH

All products are made with strict ISO system, 100% Burn-in tested

Fast Customized LED Driver development

QUALITY

Product 100% burn-in tested, Qualified rated>99.9%

Certificated by CE PSE UL TUV CQC CB SAA

Service

Inquiry Replied within 24 hours

Product Delivered in 3~15 days

10 working days for a new customized LED driver
