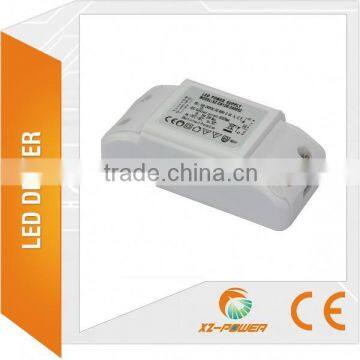

XZ-CB12B 150ma Panel Light led driver circuit board

XZ-CB12B 150ma Panel Light led driver circuit board

Item No

XZ-CB12B1

XZ-CB12B2

Type

Constant Current

Structure

external isolated

Input Volatage

100-240V

100-240V

Output Voltage

30-42V

25-32V

Output Current

150-360ma

720ma

Efficiency

86%

85%

Power Factor

0.9

Current Accuracy

±5%

Working Tem

from-10°C to 45°C

Protection

Short circuit/over current/over voltage

Dimension

95*46*28mm

Certificate

CE passed

Packing Size

451*338*441mm

MOQ

100

Warranty

3 years

Model

Power Consumption

Input Voltage

Output Voltage

Output Current

Current Accuracy

Efficiency

PF

Dimension L*W*H

XZ-CB04D

4W series

100-240V

3-12V

50-350MA

±5%

73%

0.5

L88*W39*H23

XZ-CB12B

12W series

100-240V

30-42V

150MA-360MA

±5%

86%

0.9

L95*W46*H28

25-32V

360MA

85%

0.9

XZ-CB20B

20W series

100-240V

30-42V

300MA-550MA

±5%

86%

0.9

L115*W46*H28

25-32V

720MA

85%

0.9

XZ-CB40B

40W series

100-240V

30-42V

720-1100MA

±5%

88%

0.9

L140*W46*H28

XZ-CB50B

50W series

100-240V

30-42V

1150-1500MA

±5%

88%

0.9

L160*W46*H28

Why Choosing Xiezhen LED Power Supply

PROFE SSION

30 R&D staff with more than 5-year experience in LED driver development

More than 20 production lines making LED drivers since 2009

STRENGTH

All products are made with strict ISO system, 100% Burn-in tested

Fast Customized LED Driver development

QUALITY

Product 100% burn-in tested, Qualified rated>99.9%

Certificated by CE PSE UL TUV CQC CB SAA

Service

Inquiry Replied within 24 hours

Sample delivered in 1~3 days, batch product delivered in 3~15 days

10 working days for a new customized LED driver
