High Quality EPS Continuous Sandwich Panel Production Line/EPS Panel Machine
- Shanghai for sandwich panel
 - T/T

You May Like
-


Eps Continuous Foaming Pre-expander Manufacturing Machines
 -


China Automatic EPS Sandwich Panel Making Machine With New Technology
 -


High Quality EPS Shape Moulding Machine/eps Polystyrene Box Shape Moulding Machine for Sale
 -


Eps Foam Granulating Machine/eps Granules Making Machine With High Quality
 -


China High Quality Eps Foam Cutting Machine /eps Cutting Machine/eps Foaming Machine
 -


EPS Automatic Continuous Block Cutting Production Line/ EPS Polystyrene Foam Cutting Line

Product Details
| Place of Origin | Jiangsu, China | Brand Name | CE | |
| Model Number | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High quality EPS Continuous Sandwich Panel Production Line/EPS Panel Machine
Main parameter of eps sandwich panel machine :
a. Uncoiler
     | Manual  |
Material of coil:  | color coating coil  |
Thickness of sheet:  | 0.3~0.8mm  |
Width of coil:  | 1250mm  |
Weight of coil:  | ≤ 5 t  |
Inside diameter of coil:  | 480~520mm  |
b. Into Shearing Device
Type of Shearing:  | Electrical Shearing  |
Driven Power:  | 0.75 kwc.  |
c. Forming Machine Itself
Design of profile:  | see list and drawings attached  |
Type of forming:  | single layer forming  |
Stands of forming:  | 16 stands  |
Roller diameter:  | ¢80mm  |
Material of roller:  | 45 steel heat treatment  |
Thickness of chromic plating of roller surface:  | 0.05~0.06mm  |
Speed of forming:  | 5~6.0m/min synchronies with panel machine  |
Type of synchronies:  | electrical synchronies  |
Driven power:  | 3.0 kw  |
Installation instruction:  | two parts  |
Size of forming machine:  | 11000×2200×2200mm  |
Weight of forming machine:  | ~6 t  |
       d. Control Panel

Electrical Voltage:  | 380V/3Ph/50Hz  |
Type of controlling:  | PLC (Mitsubishi Japan)  |
Touch screen:  | Mt506 (Taiwan)  |
Speed measure device:  | OMRoM (Japan)  |
Parts of electrical control system:  | Simenz  |
Transducer:  | (Mitsubishi Japan)/0.4KW (Made in China)  |
Model:  | SPC Machine  |

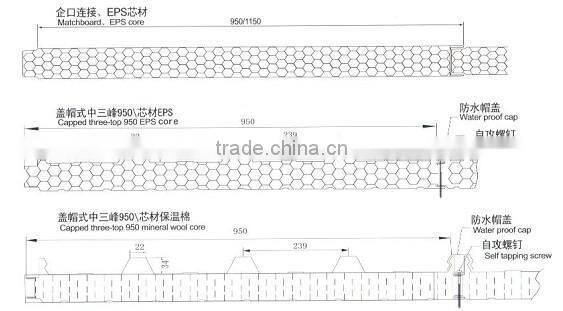

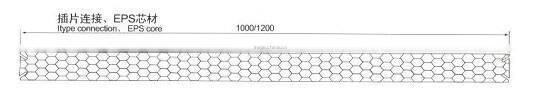

Drawing of Panel of eps sandwich panel machine:
Products Specification of eps sandwich panel machine:
Product  | Measuremm  | Weight (kg)  | Total Power(kw)  | Production Efficienc(n/min)  |
SANWICH PANNEC PEODUCE LINE  | 24000×2100×2600  | 15700  | 25  | 1-4.2  |
SANWICH PANNEC PEODUCE LINE  | 25000×2000×2400  | 18000  | 20  | 1-4  |
SANWICH PANNEC PEODUCE LINE  | 23000×1980×2000  | 16400  | 22  | 2-5  |
SANWICH PANNEC PEODUCE LINE  | 26300×2000×2600  | 15600  | 25  | 1-4.2  |
SANWICH PANNEC PEODUCE LINE  | 240000×2000×2100  | 17500  | 25  | 2-5  |
Picture of eps sandwich panel machine:

Our advantage and service:
1. Take our valued client as priority, make sure equipment quality and answer clients’ questions anytime and anywhere.
2. Customizing machines according to clients' needs, such as different design, different brand parts, different colors, more function and etc
3. Engineers go to clients' factory to install machines in time.
4. More spare parts given to clients for free to ensure the factory working without suddenly stop.
Why Choose Us?
1.High-efficiency; energy-saving; CE certification;
2. Famous parts and equipment;
3. We not only sell EPS machines, but also provide more technology and project to customers;
4. Reply you within 24 hours.
5. Our full packge service
Standard export packing: In wooden case, plastic paper or wrapped with film, etc. (or Customization)
Q1: Do you use a specific provider for raw materials?
Yes,we can offer raw materials for you,however, our customers can buy EPS ram materials in their market.
Q2: How long is the working life of your EPS machine?
The working life is over 15 years and the warranty is 1 year.
Q3: What is your technological service?
We will send our engineers to our customer's factory to adjust EPS machines until our
customer can operate them.
Q4:Have you some videos where we can see the line producing?
Yes, we can provide some videos making our customers pleased.
