fiber optical splice enclosure for outdoor use

Specifications

Joint enclosure / Splice enclosure

  fiber optical splice enclosure

optional:

 fiber optical splice enclosure outdoor
Closure used outside plant, underground.
ISO9001:2000
ABS/PC material
Huawei design

splice box/splice tray

K Style Joint Operation Center Of Fiber Optic

sealing style

cap sealed style

Excellent capability to withstand quake, pressure, stretch. It is Strong and durable.
Excellent capability to adapt to natural conditions.

The device allows for direct
jointing and bifurcated jointing.

 Splice closure ( Cap style/horizontal style)

Support several ways of connection, such as direct access, and distribution.

Reliable heat-shrink pressurization, the function of pressurization is excellent.

The repeated openness is easy to make maintenance convenient.

Meet the standard YD/T 814.1-2004.

Can be made of ABS or PC, has IP protection

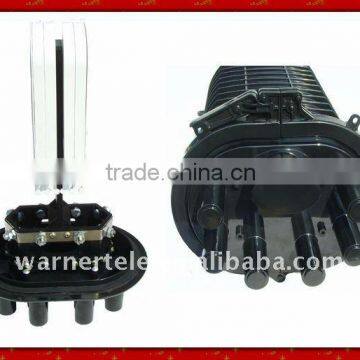

Vertical/ cap style splice closure with IP protection

Can be made of PC and ABS.

Suitable for several cable structures, such as loose cladding, ribbon, and tight tube, Suitable for installment in duct, aerial and other environments.

Support several ways of connection, such as direct access, and distribution.

Reliable heat-shrink pressurization, the function of pressurization is excellent.

The repeated openness is easy to make maintenance convenient.

Meet the standard YD/T 814.1-2004.

Technical criterions:
Mechanical intensity: Excellent capability to withstand quake, pressure, stretch. Strong and durable. Close the case and inflate inwards to 0.1 MPa, the Fiber Optic Closure can to bear 1000N axial pulling force and there is no damage and leak gas.
Environment capability: It can operate smoothly in temperatures varying from -40(0C)-+60(0C). Innovative waterproof elastic entire sealing
Sealing performance: After being inflated to 0.1MPa, the case is soaked in the container full of normal temperature water for 15 minutes. There is no bubble emitting.
Insulation resistance: The resistance of insulation between the supporting of metal and the ground is bigger than 2*10, 000M
Service life: All major components in the Closure are designed for 20 years service life.

Cores: 12-144
