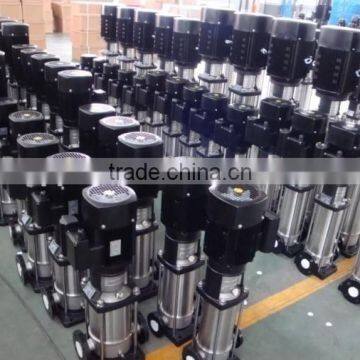

multistage centrifugal pump with SS316, 304 material options
US$ 1 - 1
/ Unit
1 Unit(Min. Order)
- Guangzhou
- T/T L/C D/P D/A Credit Card
You May Like
-
multistage centrifugal pump at SS316
-
multistage centrifugal pump for high building buiding
-
multistage centrifugal pump for pressure system construction
-
high quality vertical multistage centrifugal pump
-
sewage pump with open impeller and dynamic seal system at SS material
-
sewage pump with open impeller and dynamic seal system at CA material
Product Details
| Place of Origin | Guangdong, China | Brand Name | EPP | |
| Model Number | EPP CV/CVF | Theory | Centrifugal Pump | |
| Structure | Multistage Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, Motor | Pressure | High Pressure | |
| Application | Other, water supply |
Product Description
| CV(CVF) STAINLESS STEEL VERTICAL MULTI-STAGE CENTRIFUGAL PUMP | ||||
| PRODUCT PHOTO | PRODUCT SPECIFICATIONS | |||
| Pump Inlet: | DN25mm - DN100mm | |||
| Pump Outlet: | DN25mm - DN100mm | |||
| Capacity Ranges: | 0.4m3/h - 120m3/h | |||
| Head Ranges: | 6m -309m | |||
| Max. Suction Pressure: | 0.4Mpa - 1.0MPa | |||
| Power Ranges: | 0.37KW - 45KW | |||
| Speed(RPM): | 1450RPM / 2900RPM | |||
| Liquid Temperature(℃): | -20℃ - 120℃ | |||
| Material | Suction casing Discharge casing | - Cast iron - Stainless steel (SS304 / SS316 ) | ||
| Stage casing Diffuser | Stainless steel (SS304 / SS316) | |||
| Impeller | Stainless steel (SS304 / SS316 ) | |||
| Pump Shaft | Stainless steel : AISI304 / SS316 / AISI316L / Monel alloy | |||
| Sliding bearing | Alloy (Silicon carbide) | |||
| Shaft Sealing: | Mechanical seal | |||
| Motor (Choice): | - SIEMENS / WEG/ Factory Standard - Single or Three Phase | |||
| APPLICATION | ||||
| - Water supply: water filter and transport in waterworks, boosting of main pipeline, boosting in high-rise buildings; - Industrial boosting: Process flow water system, cleaning system, high-pressure washing system, fire fighting system; - Industrial liquid conveying: Cooling and air-condition system, boiler water supply and condensation system, machine-associated purpose, acids and alkali; - Water treatment: Ultra-filtration system, Reverse Osmosis system; - Demineralizing water system, softening, ionising; - Distillation sytem, seperator; - Swimming pool; - Drip-feed irrigation, sprinkler irrigation. | ||||
