Bosch Starter Solenoid Switch

Specifications

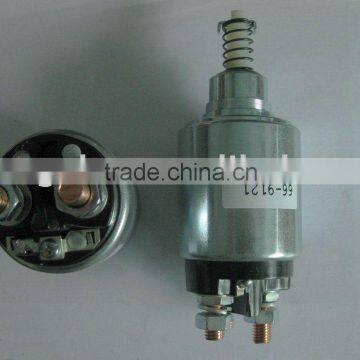

66-9121  Bosch Starter Switch Solenoid for Mercedes

Wai No.:66-9121/7-795  Ref No.: 0-331-402-038,-002,-003,502

12 Volt, 3-Terminal
For: Bosch 358, 359, 362, 366, 367 Series DD Starters
Used On: Audi, Deutz, IHC, Iveco, KHD, Magirus, Massey Ferguson, Mercedes, Opel, Renault, Volvo
Unit Nos: Bosch 0-001-354-092; 0-001-358-049, -201; 0-001-359-072, -073, -081, -082, -099, -100, -106, -108, -119; 0-001-362-013, -014, -015, -016, -022, -023, -024, -025, -034, -035, -036, -037, -041, -046, -058, -063, -071, -074, -300, -305, -306, -310, -313; 0-001-366-001, -002, -003, -009, -010, -012, -013, -014, -016, -017, -018, -020, -024, -025, -027, -028, -029; 0-001-367-001, -004, -005, -007, -009, -010, -013, -023, -052; 0-001-369-014; 9-000-083-027, -028, -036, -054, -058, -059, -071
Lester Nos: 16567, 17074, 17075, 17077, 17105, 17106, 17112, 17113, 17114, 17136, 17159, 17228, 17309, 17316, 18026, 18027, 18114, 18122, 18229, 18370
WAI Ref. Nos: 2-1889-BO, 2-1908-BO, 2-1976-BO
Dim: Batt. Term. M10 x 1.5
Motor Term. M10 x 1.5
Switch Term. M5 x 0.8 Hole
Note: 5mm S-terminal hole. For 4mm S-terminal hole use 7-1190.
Components:
66-91207 Cap Assy.*
66-91701 Movable Contact Assy.**
66-91702 Movable Contact Kit***
